10640 C - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HOUSING ASSEMBLY Parts Diagram

20" Walk-Behind Mower

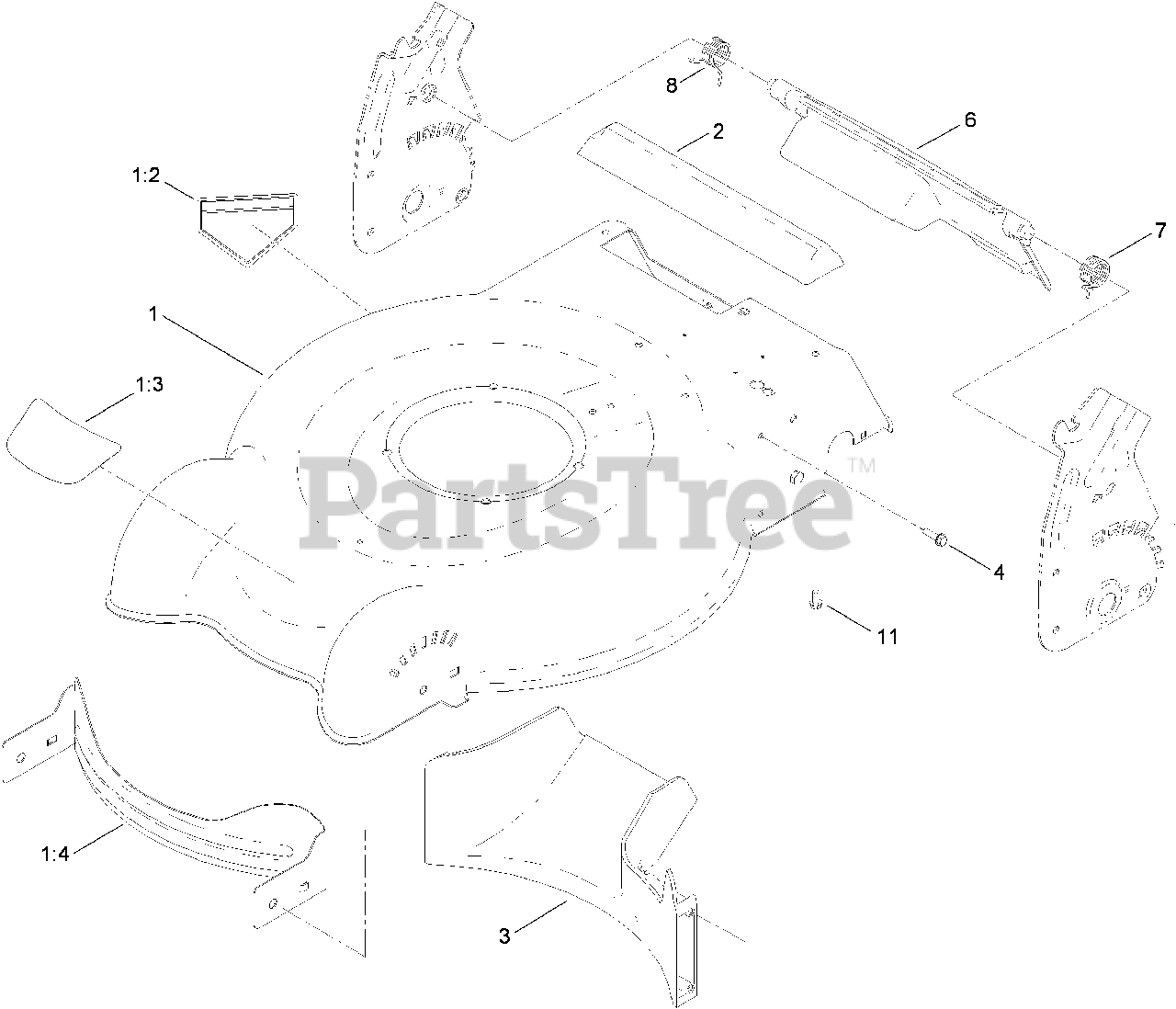

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 117-4153

HOUSING ASM

$

$

Not available

1:2

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

1:3

$7.49

$

Usually ships in 3-6 days

0

1:4

Lawn-Boy 112-8824-02

BAFFLE-FRONT

$

$

Not available

2

Lawn-Boy 112-8845

CHUTE-REAR

$12.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 112-8814

BAFFLE-REAR

$33.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 117-5923

REAR DEFLECTOR ASM
(Superseded to 119-7029)

$22.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 112-8848

SPRING-TORSION, LH

$5.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 112-8849

SPRING-TORSION, RH

$5.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0
