10640 C - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) FRONT WHEEL ASSEMBLY Parts Diagram

20" Walk-Behind Mower

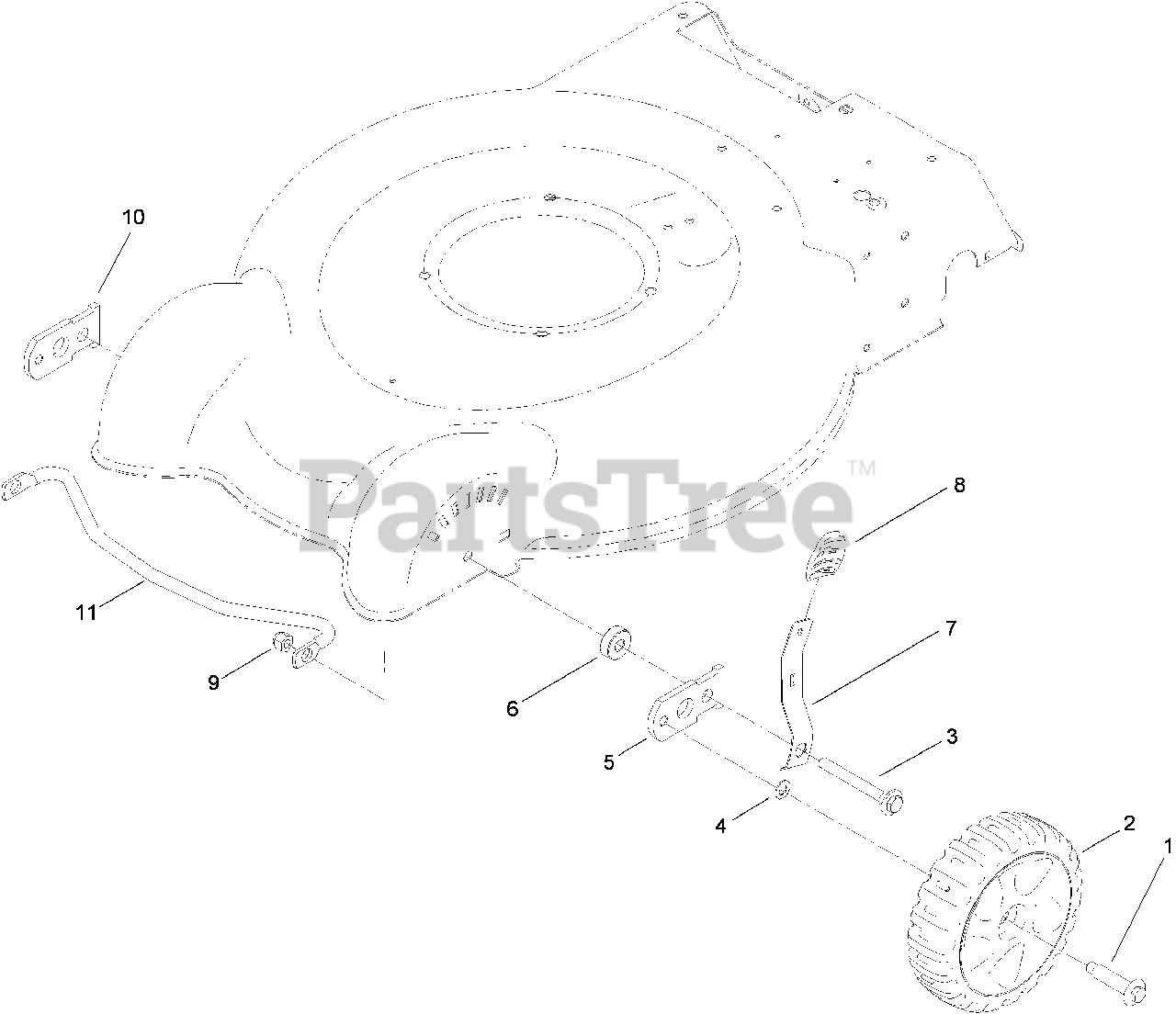

FRONT WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 112-1548

7 INCH FRONT WHEEL ASM
(Superseded to 117-5964)

$22.99

$

In Stock, Qty 17

0

3

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

4

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 117-5997

SPACER-ARM, PIVOT

$2.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 112-8828

ARM-SPRING, FRONT

$10.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 108-1044

ARM-PIVOT, LH

$10.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 117-4161

BRACE-FRONT

$

$

Not available
