10634 - Lawn-Boy 20" Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Housing and Rear Height-of-Cut Assembly Parts Diagram

20" Walk-Behind Mower

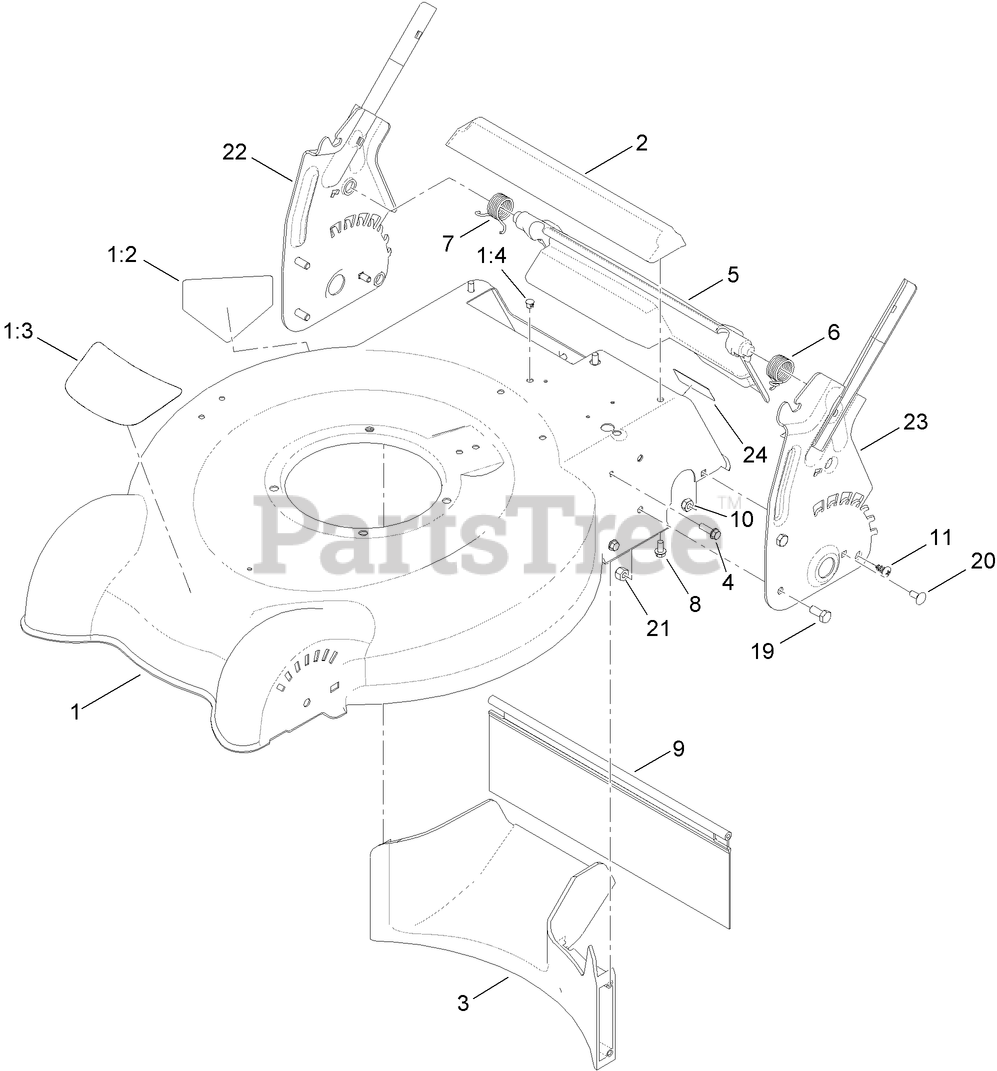

Housing and Rear Height-of-Cut Assembly Parts Diagram

  • Title

1

Lawn-Boy 117-4153

HOUSING ASM

$

$

Not available

1:2

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

1:3

Lawn-Boy 117-4131

DECAL

$7.49

$

Usually ships in 3-6 days

0

1:4

Lawn-Boy 104-9373

PLUG-DOME

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 112-8845

CHUTE-REAR

$12.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 112-8821

BAFFLE-REAR

$33.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 119-7029

REAR DEFLECTOR ASM

$22.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 119-7015

SPRING-TORSION, LH

$3.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 119-7016

SPRING-TORSION, RH

$3.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 125-2517

SHIELD-TRAILING

$22.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 112-8822-03

PLATE-HOC, LH

$

$

Not available

23

Lawn-Boy 112-8823-03

PLATE-HOC, RH

$27.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 121-5684

DECAL-LOCATION, SERVICE DEALER

$1.49

$

In Stock, only 1 left!

0
