10632 - Lawn-Boy 20" Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Engine and Blade Assembly Parts Diagram

20" Walk-Behind Mower

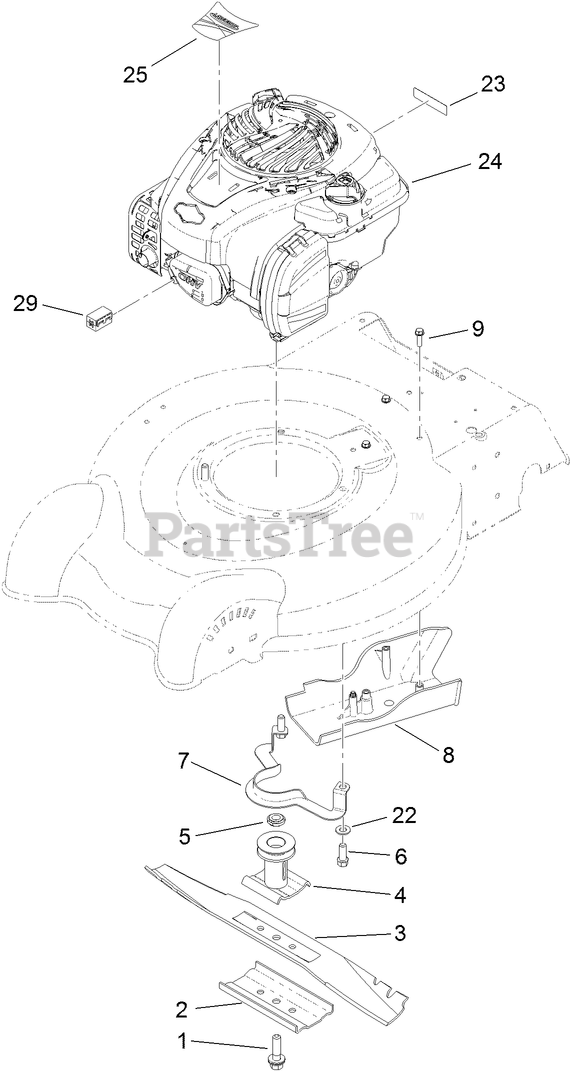

Engine and Blade Assembly Parts Diagram

  • Title

1

Lawn-Boy 117-5270

BOLT-BLADE

$

$

Not available

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Lawn-Boy 112-8841-03

See Supercession: 133-8181-03
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 125-2500

DRIVER-BLADE

$41.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 125-2502

SPACER-DRIVER

$1.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-3030-03

GUIDE-BELT

$14.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

24

ENGINE-BRIGGS, 09P7020098F1

Note: Not serviced separately

$

$

Not available

24

ENGINE-BRIGGS, 09P7020098F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

25

Lawn-Boy 125-2518

DECAL-ENGINE

$2.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 125-5054

FERRITE-CLAMP

$4.99

$

Usually ships in 3-6 days

0
