10630 - Lawn-Boy 20" Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Rear Wheel Assembly Parts Diagram

20" Walk-Behind Mower

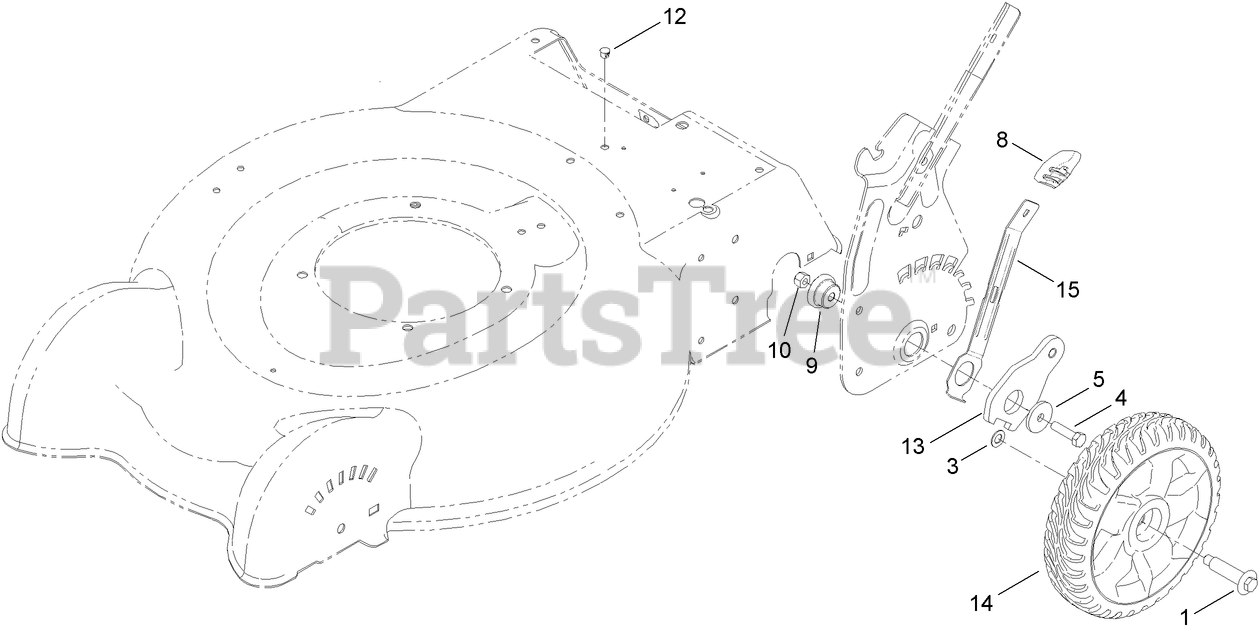

Rear Wheel Assembly Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

3

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

8

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 105-1818

BUSHING-MOUNT, HOC

$4.99

$

In Stock, Qty 9

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

12

Lawn-Boy 104-9373

PLUG-DOME

$1.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 125-5077

ARM-PIVOT, REAR (SERVICE)

$8.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 125-2523

11 INCH WHEEL ASM

$45.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 115-2899

ARM-SPRING, REAR

$12.99

$

In Stock, only 2 left!

0
