10630 - Lawn-Boy 20" Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Baffle and Front Wheel Assembly Parts Diagram

20" Walk-Behind Mower

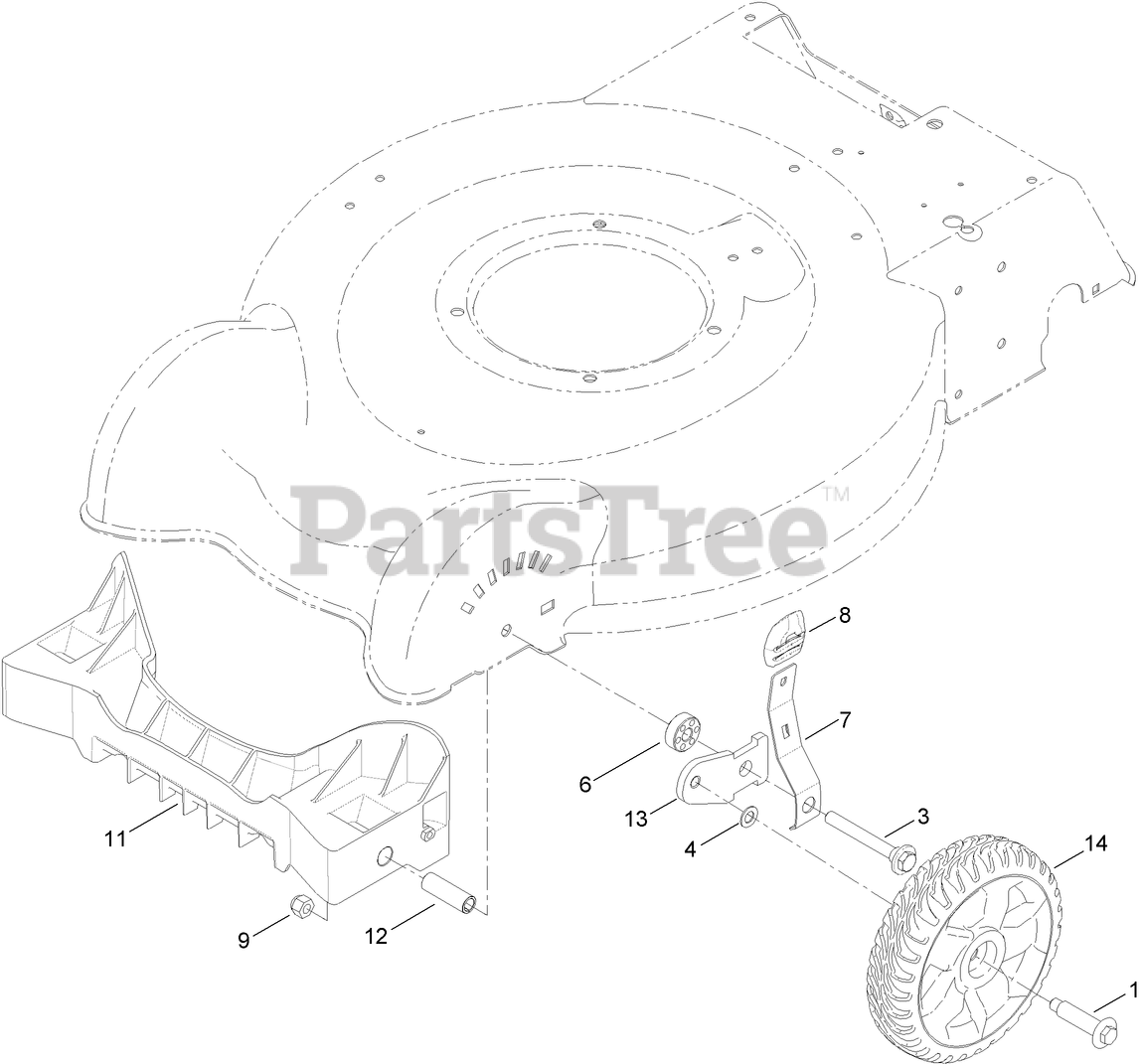

Baffle and Front Wheel Assembly Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 9

0

3

Lawn-Boy 117-5996

BOLT-SHOULDER

$3.99

$

In Stock, only 1 left!

0

4

$2.99

$

In Stock, Qty 18

0

6

Lawn-Boy 117-5997

SPACER-ARM, PIVOT

$2.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 112-8828

ARM-SPRING, FRONT

$10.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 6

0

9

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

11

Lawn-Boy 119-7082

BAFFLE-THROW, FRONT

$19.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 117-5992

SPACER-BAFFLE, FRONT

$2.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 125-5089

ARM-PIVOT, FRONT (SERVICE)

$8.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 125-2521

WHEEL ASM 8", IDLER

$46.99

$

Usually ships in 3-6 days

0
