10625 - Lawn-Boy 20" Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Handle Assembly Parts Diagram

20" Walk-Behind Mower

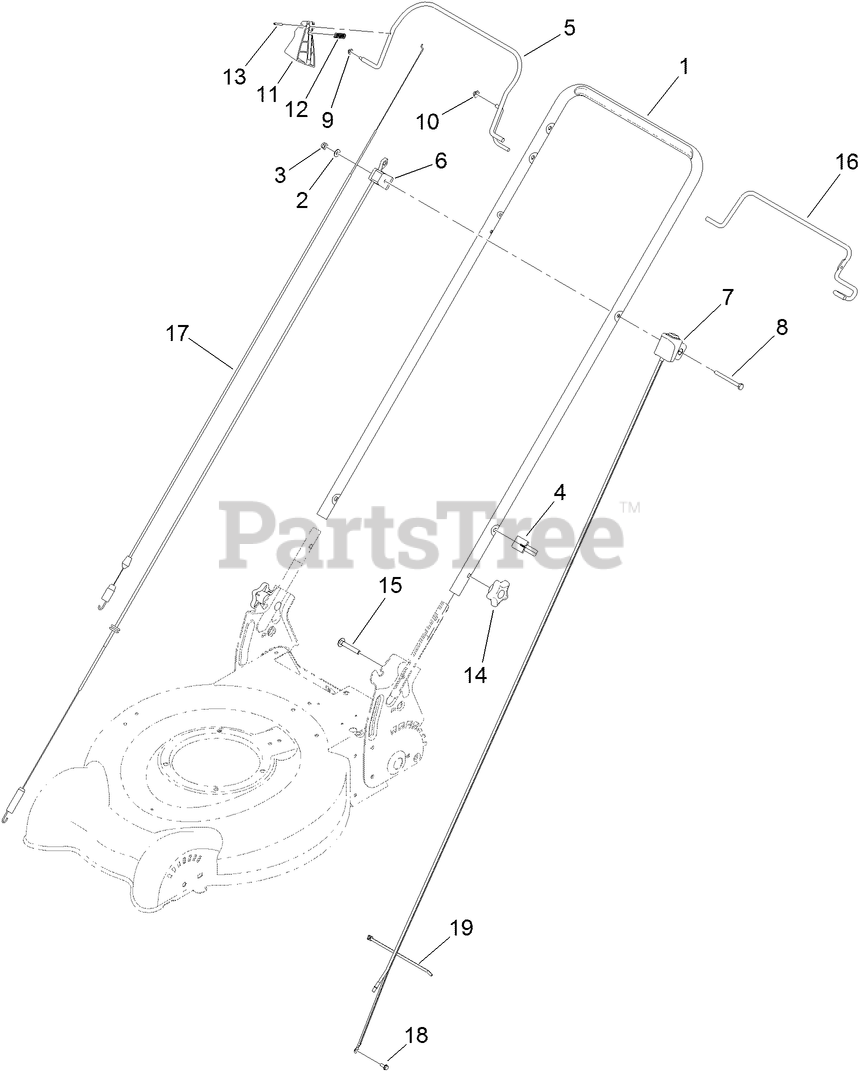

Handle Assembly Parts Diagram

  • Title

$62.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

4

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 12

0

5

$

$

Not available

6

Lawn-Boy 119-7005

CABLE-BRAKE

$38.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

9

$0.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 119-3842

STOP-BAIL

$

$

Not available

12

Lawn-Boy 117-7331

SPRING-BRAKE

$

$

Not available

13

Lawn-Boy 933156

PIN-ROLL

$1.49

$

In Stock, Qty 9

0

14

Lawn-Boy 117-5976

KNOB-HANDLE

$2.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

16

Lawn-Boy 112-8835-02

BAIL-TRACTION, 2-BAIL FLAT

$28.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 112-8817

CABLE-TRACTION

$33.99

$

In Stock, Qty 7

0

18

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

19

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
