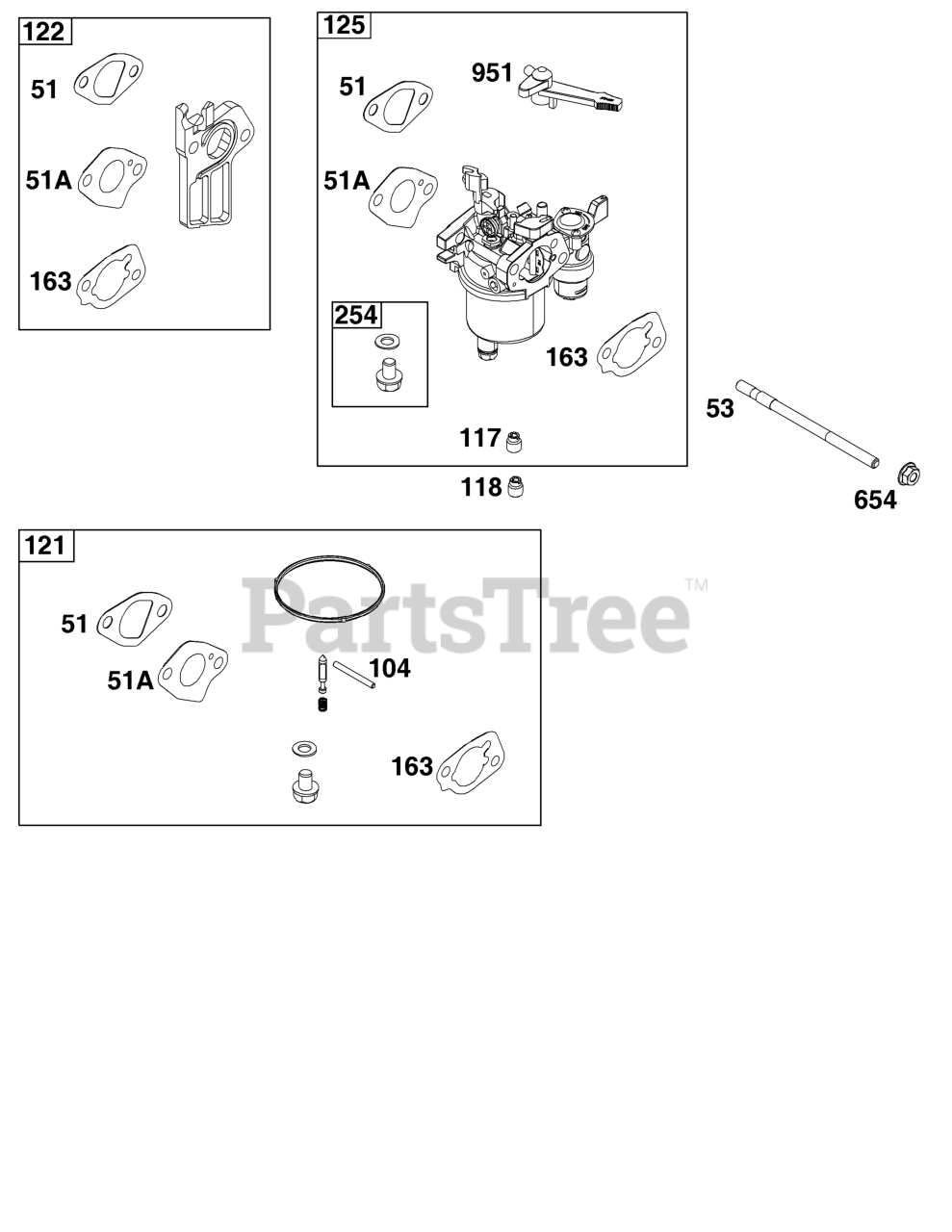

106232-0147-H5 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 590691

STUD

Note: (Carburetor)

$7.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 592486

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 593414

JET, Main

Note: (Standard)

$12.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 595823

JET, Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 591770

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$43.99

$

In Stock, Qty 9

0

122

Briggs & Stratton 590615

SPACER, Carburetor

$10.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 595649

CARBURETOR

$73.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 590605

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 20+

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 590692

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 1 left!

0

951

Briggs & Stratton 590614

LEVER, Choke

$11.99

$

Usually ships in 2-12 days

0
