10623 - Lawn-Boy 20" Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Rear Wheel and Height-of-Cut Assembly Parts Diagram

20" Walk-Behind Mower

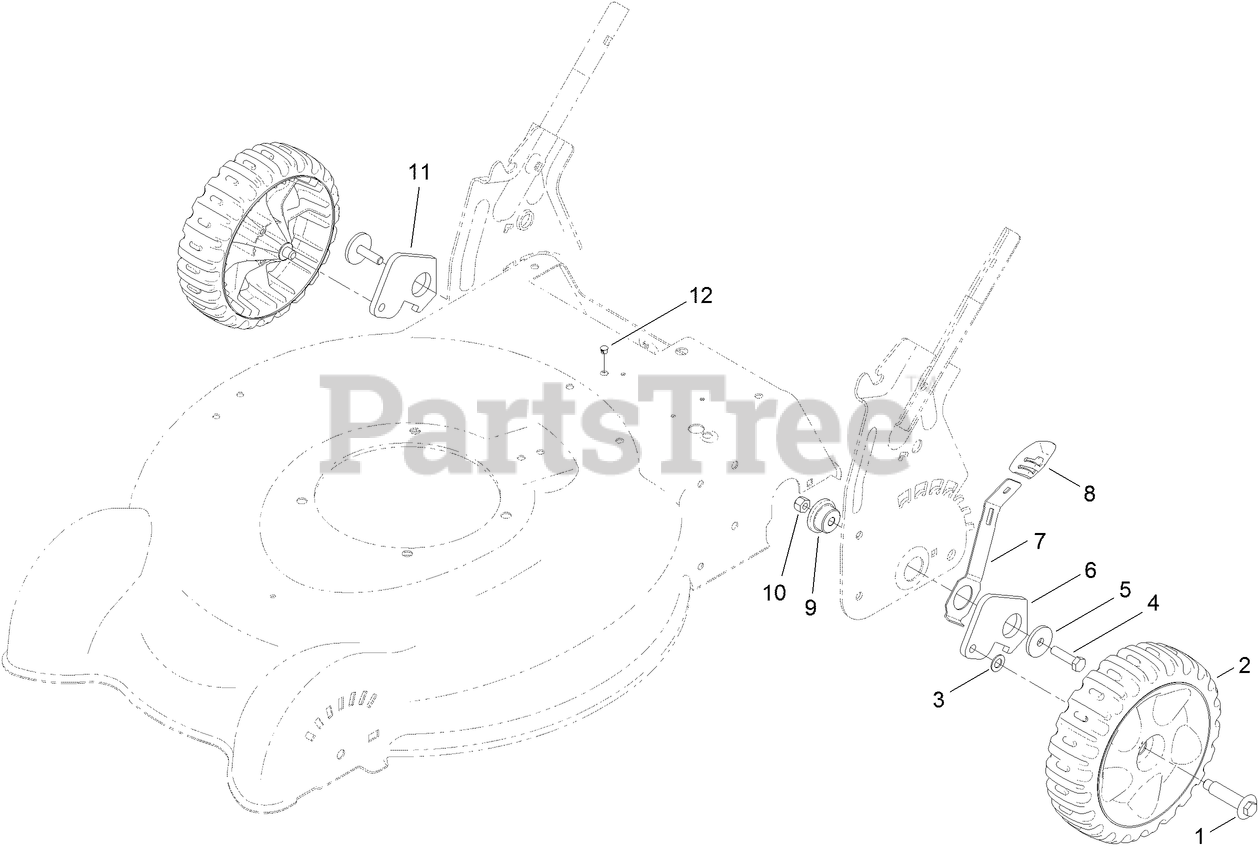

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 117-5951

8 INCH WHEEL AND TIRE ASM

$41.99

$

Usually ships in 3-6 days

0

3

$2.99

$

In Stock, Qty 18

0

4

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 12

0

6

Lawn-Boy 105-1819

ARM-PIVOT, REAR (LH)

$12.99

$

In Stock, only 4 left!

0

7

Lawn-Boy 105-1809

ARM-SPRING

$11.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 5

0

9

Lawn-Boy 105-1818

BUSHING-MOUNT, HOC

$5.49

$

In Stock, Qty 9

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 108-4816

See Supercession: 105-1819
(Superseded to 105-1819)

$12.99

$

In Stock, only 4 left!

0

12

Lawn-Boy 104-9373

PLUG-DOME

$1.99

$

In Stock, only 3 left!

0
