10607 - Lawn-Boy 20" Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Rear Wheel and Height-of-Cut Assembly Parts Diagram

20" Walk-Behind Mower

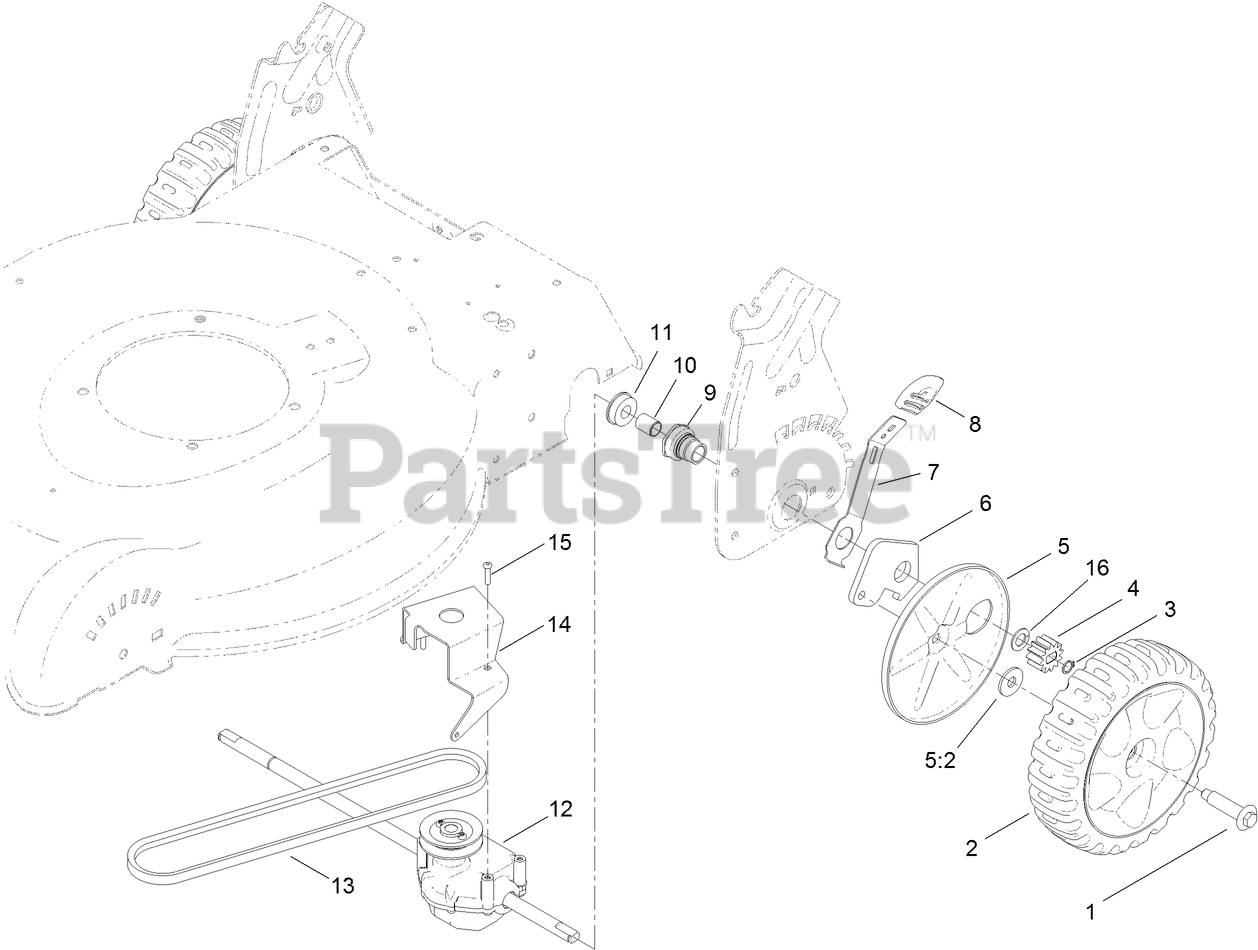

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 119-0321

8 INCH WHEEL GEAR ASM

$41.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 115-4668

GEAR-PINION

$15.99

$

In Stock, Qty 8

0

5

Lawn-Boy 117-4197

See Supercession: 131-4513
(Superseded to 131-4513)

$10.99

$

In Stock, only 3 left!

0

5:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 10

0

6

Lawn-Boy 108-9781

ARM-PIVOT, REAR

$8.99

$

In Stock, only 4 left!

0

7

Lawn-Boy 108-9780

ARM-SPRING

$10.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 12

0

11

Lawn-Boy 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 121-2332

TRANSMISSION ASM

$114.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 110-9429

V-BELT

$17.99

$

In Stock, Qty 13

0

14

Lawn-Boy 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

16

Lawn-Boy 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0
