10607 - Lawn-Boy 20" Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Front Wheel and Height-of-Cut Assembly Parts Diagram

20" Walk-Behind Mower

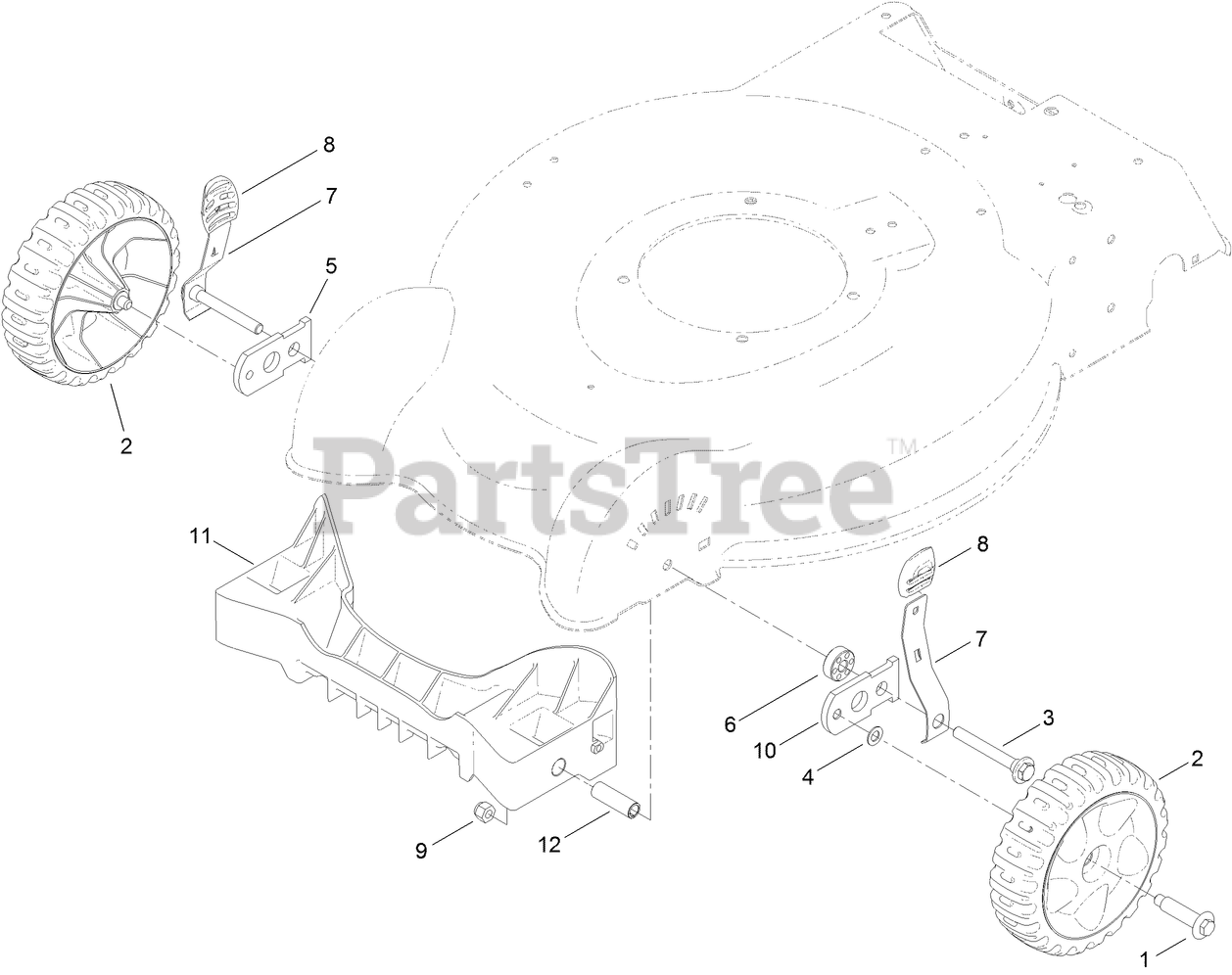

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 117-5964

7 INCH WHEEL AND TIRE ASM

$22.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 117-5996

BOLT-SHOULDER

$3.49

$

In Stock, only 1 left!

0

4

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 117-5997

SPACER-ARM, PIVOT

$2.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 112-8828

ARM-SPRING, FRONT

$9.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 108-1044

ARM-PIVOT, LH

$9.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 119-7082

BAFFLE-THROW, FRONT

$19.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 117-5992

SPACER-BAFFLE, FRONT

$2.99

$

Usually ships in 3-6 days

0
