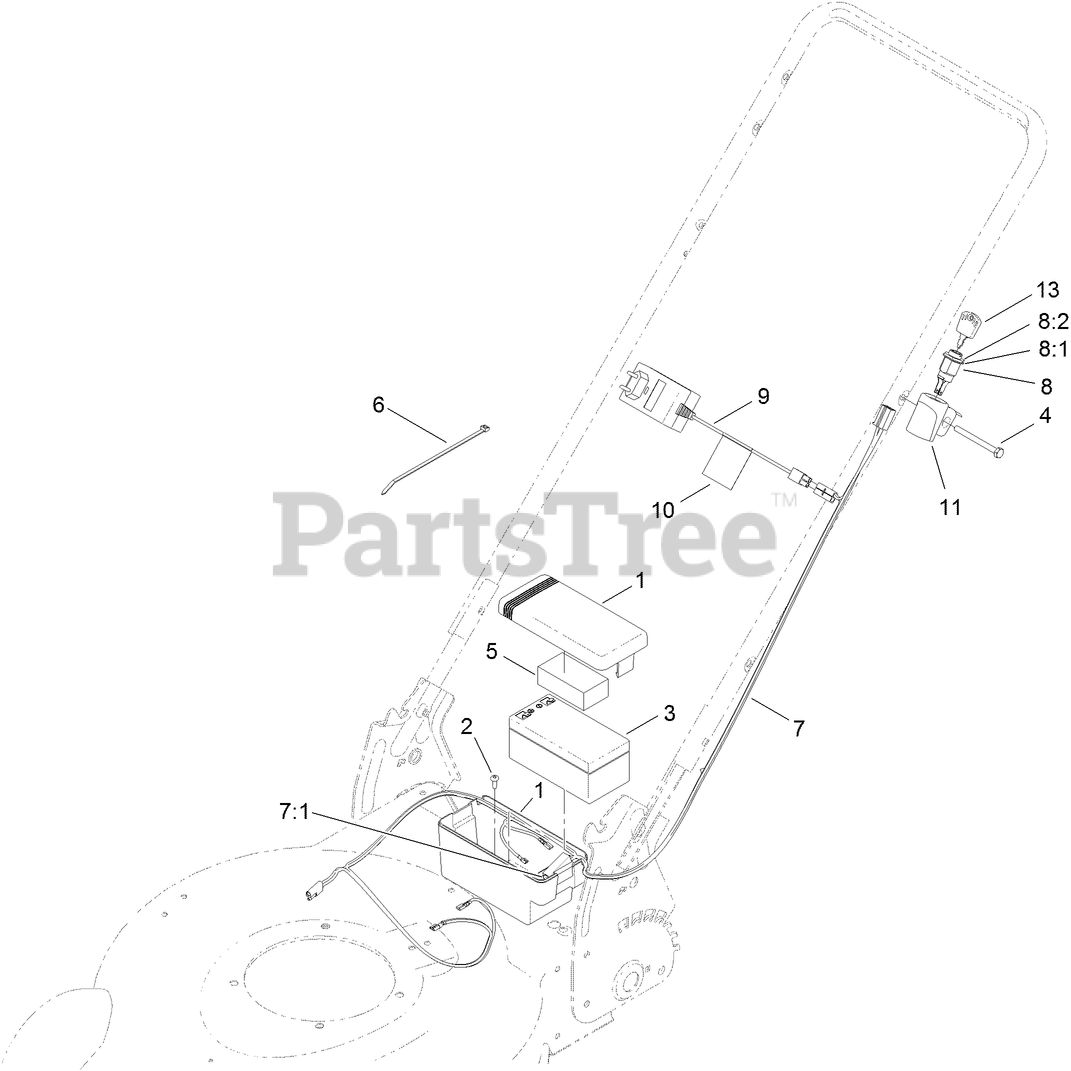

10606 - Lawn-Boy 20" Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Electrical Assembly Parts Diagram

20" Walk-Behind Mower

Electrical Assembly Parts Diagram

  • Title

1

Lawn-Boy 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 106-8397

BATTERY-WET

$79.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

6

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

7

Lawn-Boy 120-5214

HARNESS-WIRE

$81.99

$

Usually ships in 3-6 days

0

7:1

Lawn-Boy 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

8

Lawn-Boy 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

8:1

Lawn-Boy 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 2 left!

0

8:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

9

Lawn-Boy 114-1588

See Supercession: 136-9126
(Superseded to 136-9126)

$41.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 10

0
