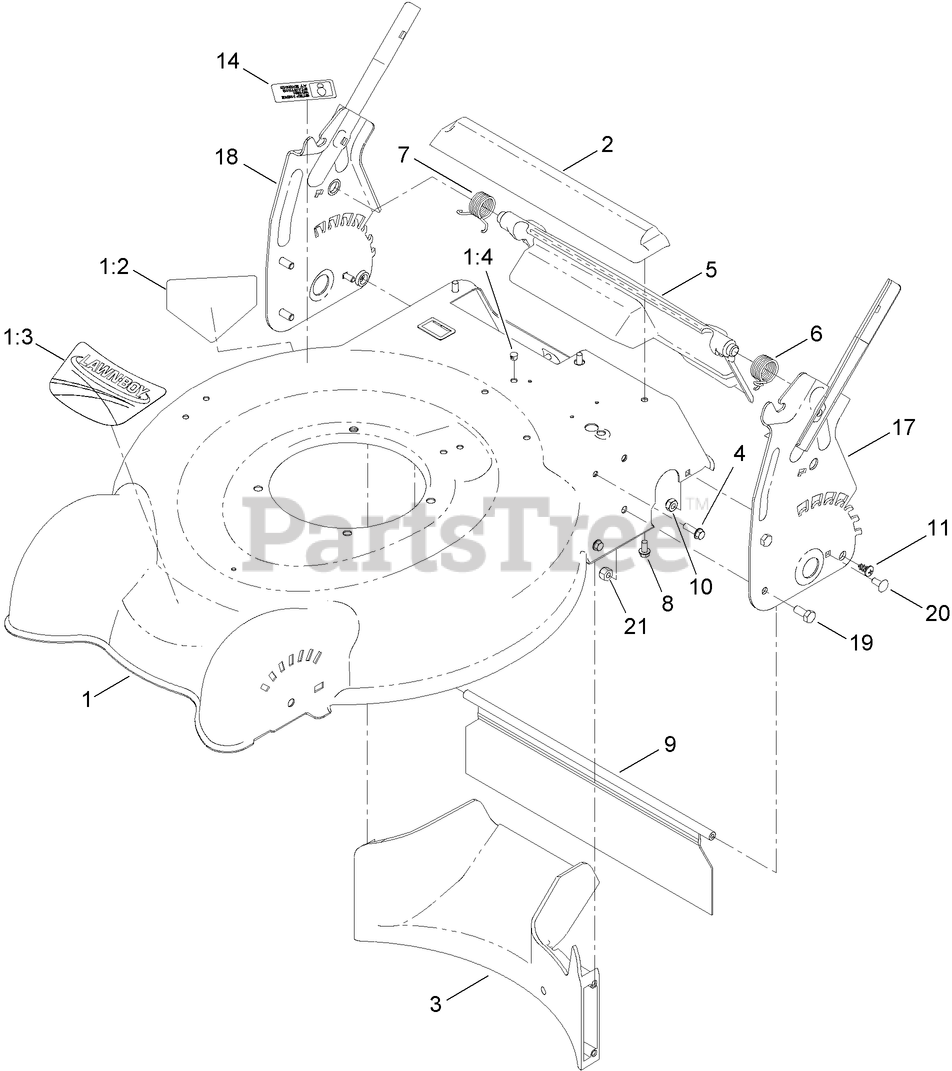

10605 - Lawn-Boy 20" Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Housing Assembly Parts Diagram

20" Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Lawn-Boy 117-4153

HOUSING ASM

$231.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

1:3

Lawn-Boy 117-4131

DECAL

$5.99

$

Usually ships in 3-6 days

0

1:4

Lawn-Boy 104-9373

PLUG-DOME

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 112-8845

CHUTE-REAR

$12.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 112-8821

BAFFLE-REAR

$31.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 119-7029

REAR DEFLECTOR ASM

$22.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 119-7015

SPRING-TORSION, LH

$3.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 119-7016

SPRING-TORSION, RH

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 120-7010

SHIELD-TRAILING

$39.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

11

Lawn-Boy 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-8117

DECAL-PLACEMENT, FOOT

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 119-3804-03

HOC-LH

$30.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 119-3805-03

HOC-RH

$

$

Not available

19

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
