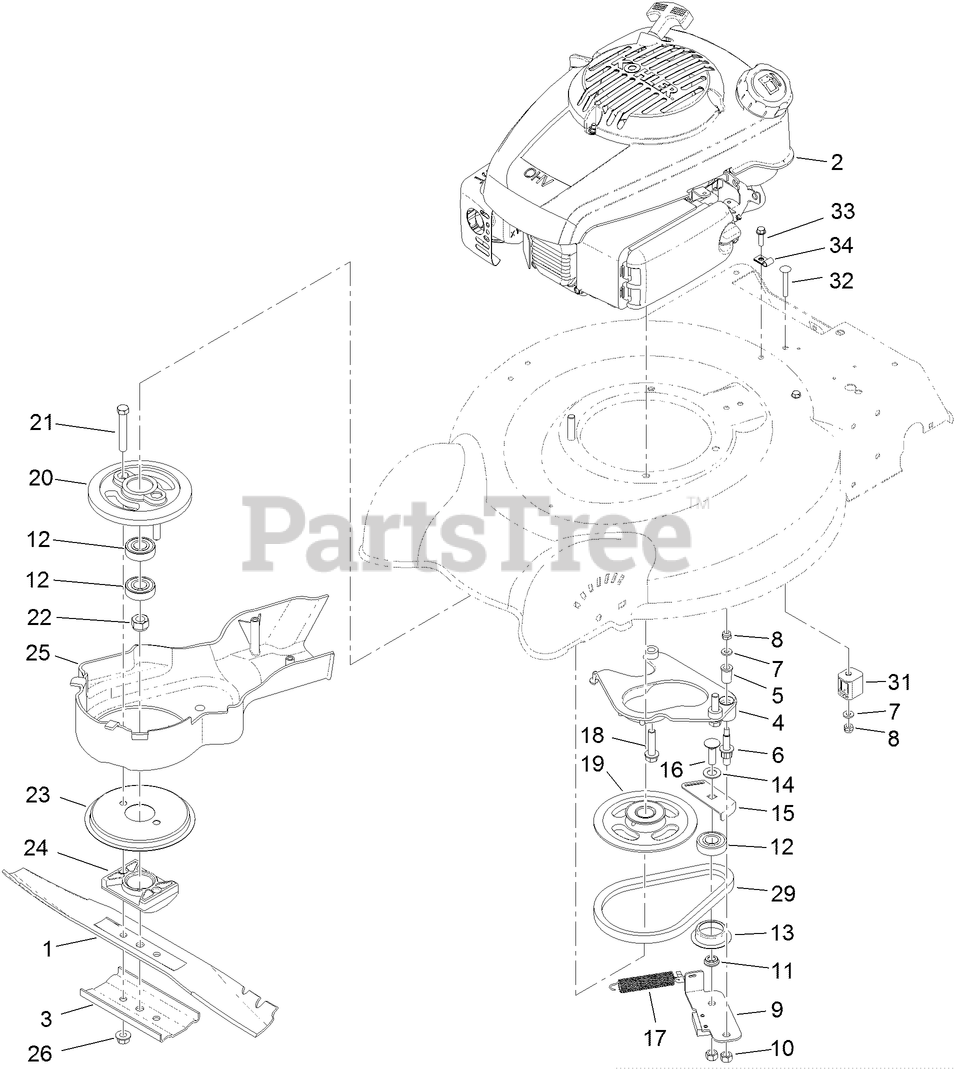

10605 - Lawn-Boy 20" Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Engine and Blade Assembly Parts Diagram

20" Walk-Behind Mower

Engine and Blade Assembly Parts Diagram

  • Title
1

Lawn-Boy 112-8841-03

See Supercession: 133-8181-03
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

2

ENGINE-KOHLER, XT-6 XT149-0226

Note: Not serviced separately

$

$

Not available

2

ENGINE-KOHLER, XT-6 XT149-0226

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

4

Lawn-Boy 108-9341

PLATE-ANCHOR

$31.99

$

Usually ships in 3-6 days

0

5

$6.49

$

In Stock, Qty 9

0

6

Lawn-Boy 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 10

0

7

Lawn-Boy 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

9

Lawn-Boy 120-3327

See Supercession: 125-1063
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 5

0

10

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

12

Lawn-Boy 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 15

0

14

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

17

Lawn-Boy 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 12

0

18

Lawn-Boy 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

19

$41.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 107-0754

See Supercession: 126-8108
(Superseded to 126-8108)

$55.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 3211-42

SCREW-HH

$5.49

$

In Stock, Qty 7

0

22

$5.49

$

In Stock, only 2 left!

0

23

Lawn-Boy 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 4 left!

0

24

Lawn-Boy 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 119-7002

COVER-BBC

$

$

Not available

26

Lawn-Boy 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

$30.99

$

In Stock, Qty 5

0

31

Lawn-Boy 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 8

0

32

Lawn-Boy 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

33

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0
