10600 - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) Shroud Assembly Parts Diagram

Walk-Behind Mower

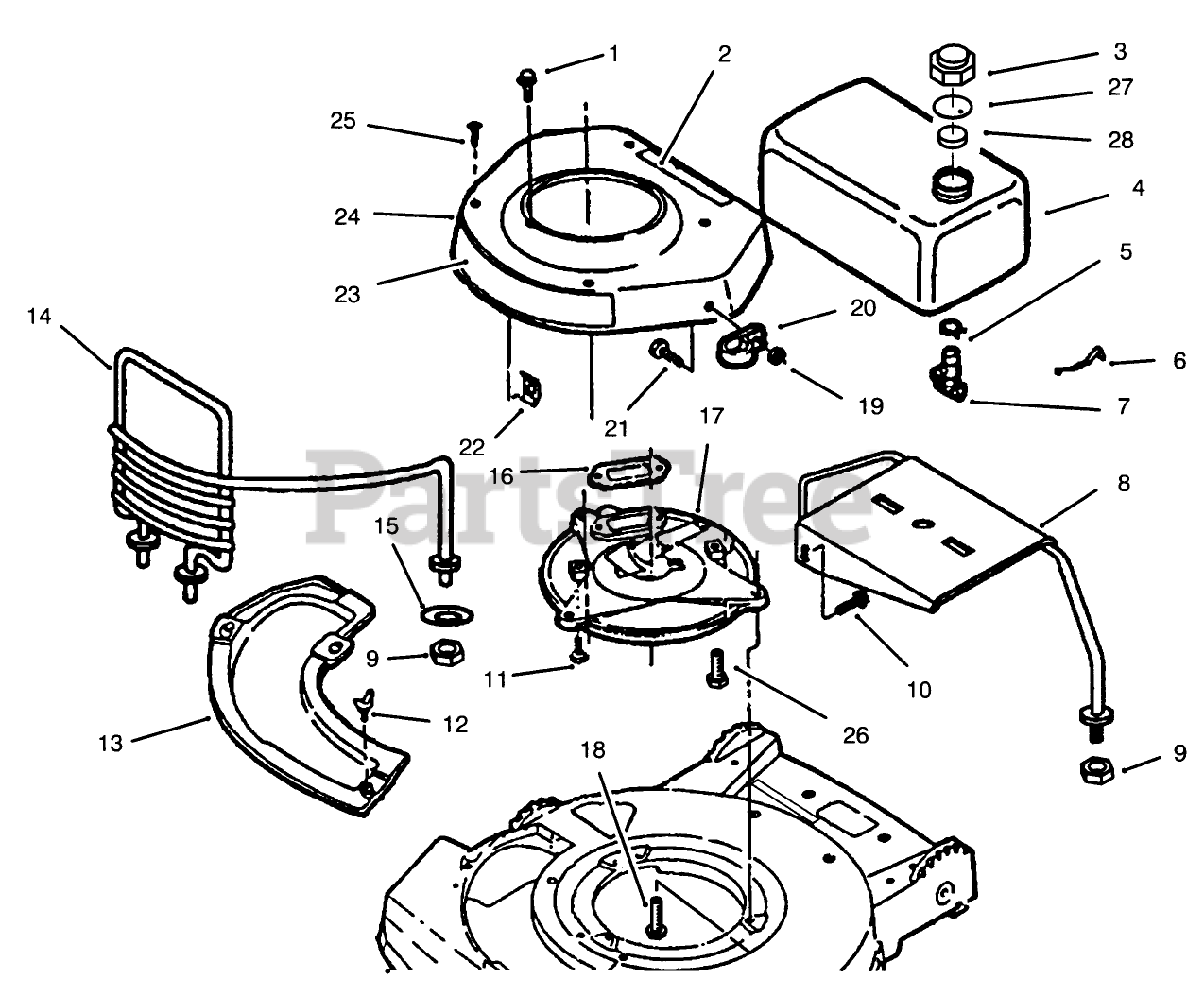

Shroud Assembly Parts Diagram

  • Title
1

Lawn-Boy 612428

SCREW SEMS SM

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 612753

DISCONTINUED

$

$

Not available

3

Lawn-Boy 682755

FUEL CAP & INSERT

$25.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 145476

TANK - FUEL

$

$

Not available

5

Lawn-Boy 312387

CLAMP - HOSE S

$1.49

$

In Stock, Qty 8

0

6

$5.49

$

In Stock, Qty 6

0

7

Lawn-Boy 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 684583

See Supercession: 684583-03
(Superseded to 684583-03)

$

$

Not available

9

Lawn-Boy 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

$

$

Not available

11

Lawn-Boy 607601

SCREW V

$4.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 614682

See Supercession: 98-8332
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

13

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

$36.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 93-7164

See Supercession: 94-1618
(Superseded to 94-1618)

$

$

Not available

15

$

$

Not available

16

Lawn-Boy 93-1233

GASKET-EXH. VF

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-1054

MUFFLER PLATE F

$121.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 611504

DISCONTINUED

$

$

Not available

21

Lawn-Boy 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

22

Lawn-Boy 145945

PUSHNUT F

$

$

Not available

23

Lawn-Boy 612754

DISCONTINUED

$

$

Not available

24

Lawn-Boy 683638

DISCONTINUED

$

$

Not available

25

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

$4.49

$

In Stock, Qty 6

0

26

Lawn-Boy 613500

SCREW-SEMS F

$9.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609150

BAFFLE - FOAM SM

$6.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 613500

SCREW-SEMS F

$9.49

$

Usually ships in 3-6 days

0
