10600 - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) Handle Assembly Parts Diagram

Walk-Behind Mower

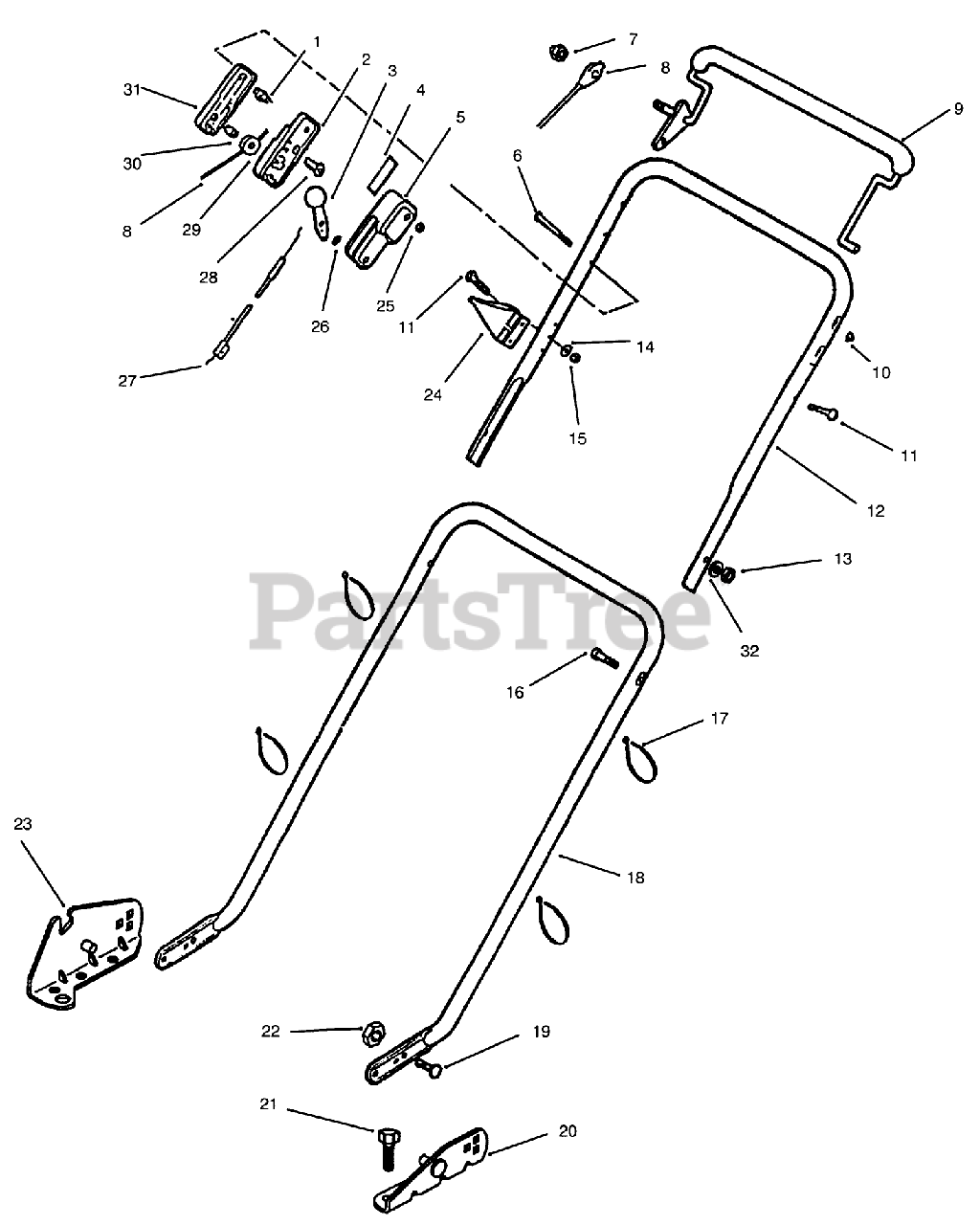

Handle Assembly Parts Diagram

  • Title
1

$14.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 612633

DISCONTINUED

$

$

Not available

3

Lawn-Boy 93-4135

ASM - LEVER & KNOB

$

$

Not available

4

Lawn-Boy 93-4136

DISCONTINUED

$

$

Not available

5

Lawn-Boy 612634

DISCONTINUED

$

$

Not available

6

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 612168

NUT ACORN

$19.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 93-3694

CABLE - CONTROL

$98.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 683478

CONTROL LEVER ARG

$138.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 611233

DISCONTINUED

$

$

Not available

12

Lawn-Boy 614516

DISCONTINUED

$

$

Not available

13

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

$

$

Not available

15

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

16

Lawn-Boy 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

18

Lawn-Boy 92-2920

See Supercession: 92-2920-05
(Superseded to 92-2920-05)

$131.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 705681

See Supercession: 3230-22
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 684058

See Supercession: 684058-03
(Superseded to 684058-03)

$81.99

$

Usually ships in 3-6 days

0

21

$3.99

$

In Stock, only 3 left!

0

22

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 684057

See Supercession: 684057-03
(Superseded to 684057-03)

$

$

Not available

24

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

$

$

Not available

25

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 612586

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

27

Lawn-Boy 93-3778

CABLE - THROTTLE

$73.99

$

Usually ships in 3-6 days

0

28

$4.49

$

In Stock, Qty 6

0

29

Lawn-Boy 612564

PULLEY PL

$5.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 611542

PIN SKF

$

$

Not available

31

Lawn-Boy 611777

OUTER CONTROL CASE

$32.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 8

0
