10600 - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) Carburetor Assembly Parts Diagram

Walk-Behind Mower

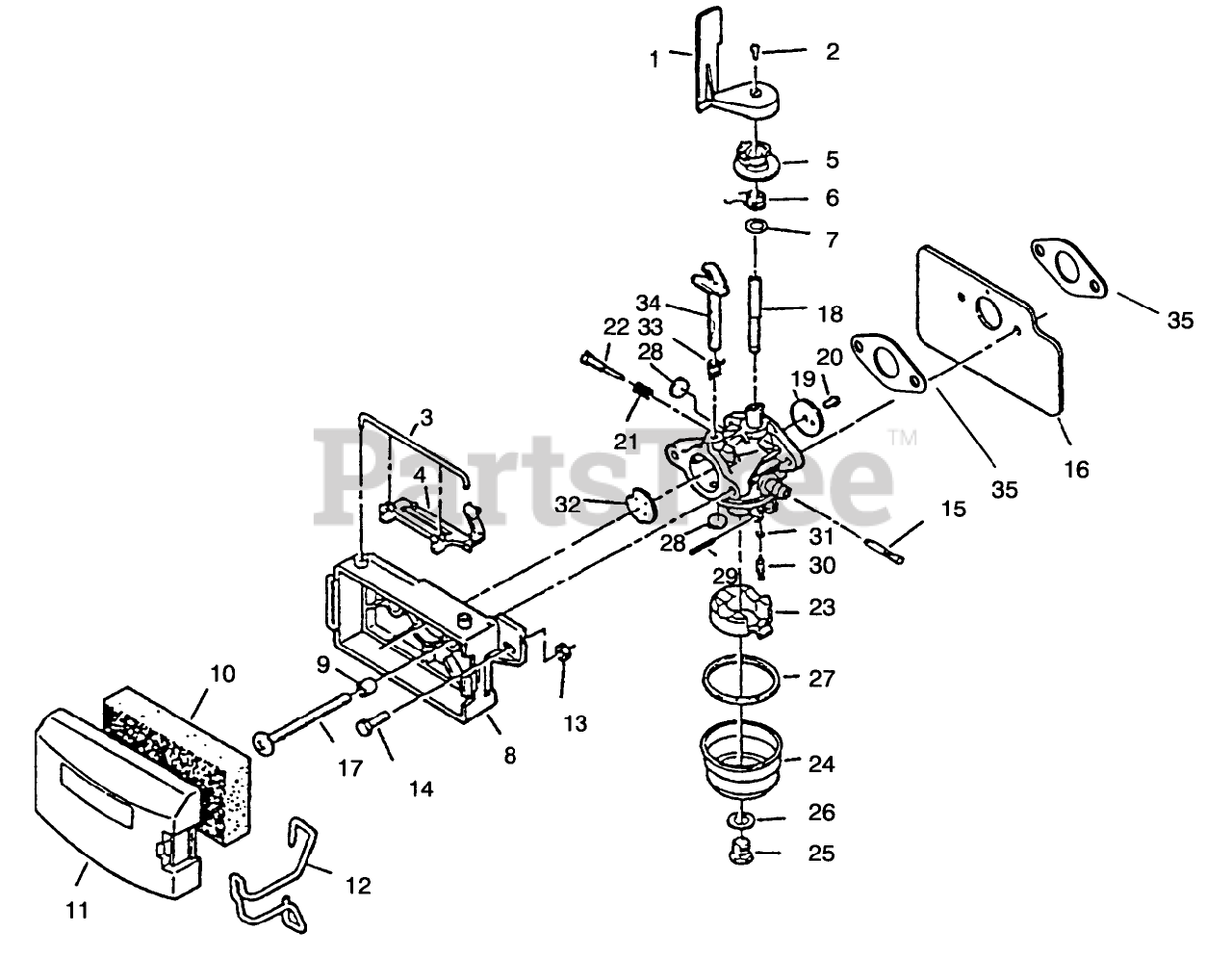

Carburetor Assembly Parts Diagram

  • Title
1

Lawn-Boy 612505

AIR VANE F

$

$

Not available

2

Lawn-Boy 605522

SCREW F

$0.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

RETAINER

$4.49

$

In Stock, Qty 15

0

4

Lawn-Boy 612502

DISCONTINUED

$

$

Not available

5

Lawn-Boy 612757

COLLAR A/VAVE F

$3.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 613142

THROTTLE SPR E

$6.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 308052

WASHER VF

$3.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 612504

DISCONTINUED

$

$

Not available

9

$5.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

$4.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

$

$

Not available

12

Lawn-Boy 610383

RETAINER-COVER, FILTER

$7.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 328712

See Supercession: 3217-26
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

14

$1.49

$

In Stock, Qty 6

0

15

Lawn-Boy 612974

SCREEN FUEL PITTS

$6.99

$

In Stock, Qty 10

0

16

Lawn-Boy 613143

SHIELD, CARB F

$10.99

$

Usually ships in 3-6 days

0

17

$4.99

$

In Stock, only 4 left!

0

Lawn-Boy 612783

DISCONTINUED

Note: Not illustrated

$

$

Not available

Lawn-Boy 684286

KIT THROTTLE S

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0

18

Shaft-Throttle

$

$

Not available

19

Vane-Throttle

$

$

Not available

Lawn-Boy 684285

DISCONTINUED

Note: Not illustrated

$

$

Not available

21

Spring-Needle

$

$

Not available

22

Needle-Idle

$

$

Not available

23

Lawn-Boy 683783

DISCONTINUED

$

$

Not available

Lawn-Boy 683782

BOWL KIT S

Note: Not illustrated

$53.99

$

Usually ships in 3-6 days

0

24

Bowl-Fuel

$

$

Not available

Kit-Gasket

Note: Not illustrated

$

$

Not available

Lawn-Boy 683778

GASKET KIT S

Note: Not illustrated

$

$

Not available

26

Gasket-Bowl Retainer

$

$

Not available

27

Gasket-Bowl

$

$

Not available

Lawn-Boy 683777

REPAIR KIT S

Note: Not illustrated

$

$

Not available

28

Plug-Welch

$

$

Not available

29

Shaft-Float

$

$

Not available

30

Inlet-Needle Valve

$

$

Not available

31

Seat-Valve

$

$

Not available

Lawn-Boy 683781

CHOKE KIT S

Note: Not illustrated

$45.99

$

In Stock, only 1 left!

0

32

Valve-Choke

$

$

Not available

33

Spring-Return

$

$

Not available

34

Shaft-Choke

$

$

Not available

35

Lawn-Boy 612574

GASKET CARB S

$6.49

$

In Stock, Qty 13

0

Lawn-Boy 684352

CARB. AY S

Note: Not illustrated

$360.99

$

Usually ships in 3-6 days

0
