10600 - Lawn-Boy Walk-Behind Mower (SN: 003900001 - 003999999) (1993) SHROUD ASSEMBLY Parts Diagram

Walk-Behind Mower

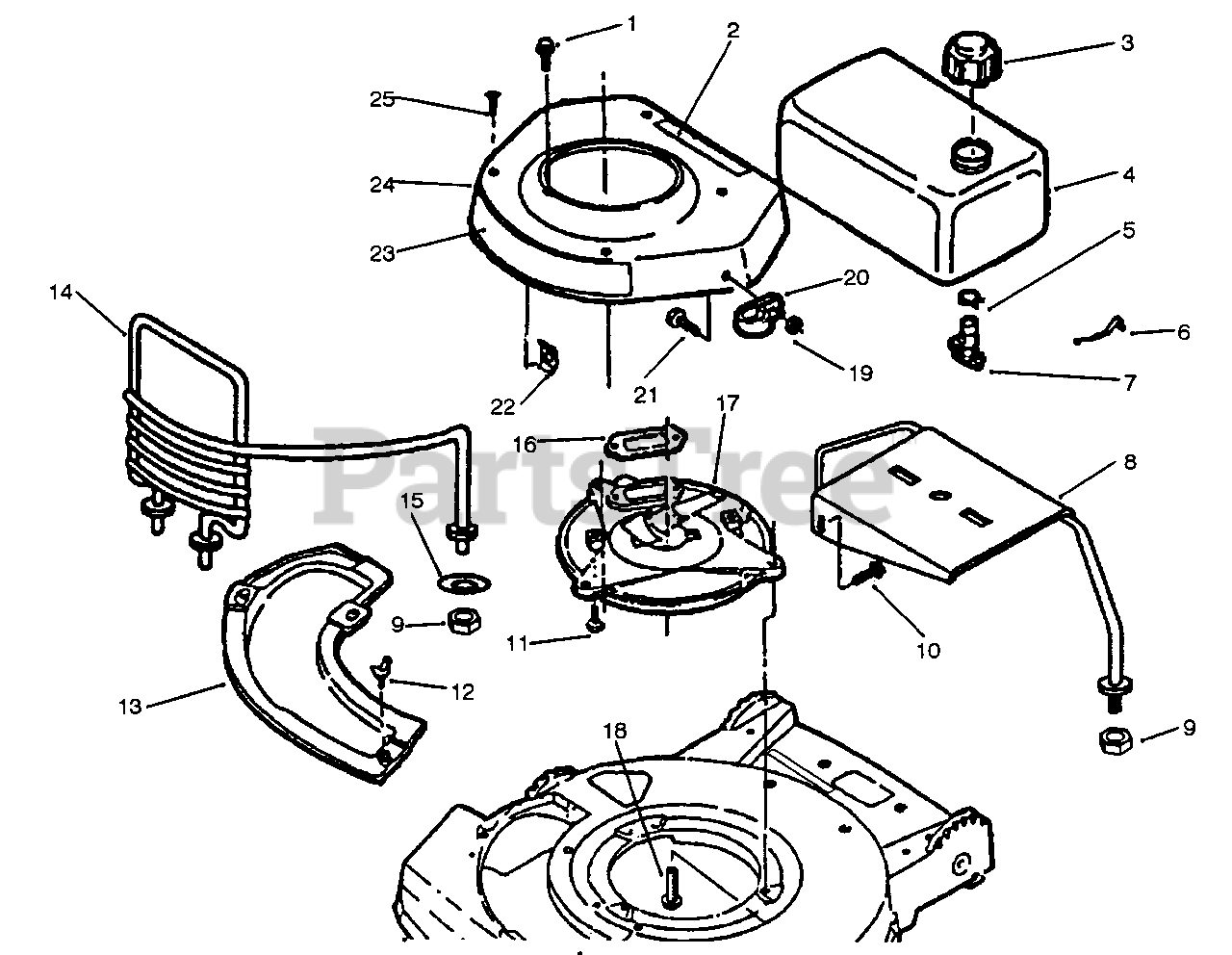

SHROUD ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 612428

Screw-Starter

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 612753

Decal-Mixture, Fuel

$

$

Not available

3

Lawn-Boy 682755

Assembly-Cap, Fuel

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 609150

Baffle

Note: Not Illustrated

$6.49

$

In Stock, Qty 20+

0

Lawn-Boy 607213

Gasket

Note: Not Illustrated

$1.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 609829

Tank-Fuel
(Superseded to 145476)

$

$

Not available

5

Lawn-Boy 312387

Clamp-Valve to Tank

$1.49

$

In Stock, Qty 8

0

6

Lawn-Boy 609830

Spring-Mount., Fuel Tank

$5.49

$

In Stock, Qty 6

0

7

Lawn-Boy 677052

Valve & Screen-Shut-Off

$23.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 684583

Bracket-Tank, Fuel
(Superseded to 684583-03)

$

$

Not available

$3.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 609891

Screw
(Superseded to 700138)

$

$

Not available

11

Lawn-Boy 607601

Screw-Muffler Plate to Block

$4.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 614682

Screw-Wing
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

13

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$36.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 684649

Guard-Engine
(Superseded to 94-1618)

$

$

Not available

15

$

$

Not available

16

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-1054

Plate-Muffler

$121.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1624

Screw-Muffler Plate to Housing
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 602315

Nut-Lock

$4.99

$

In Stock, only 2 left!

0

20

$

$

Not available

21

Lawn-Boy 46-6811

Screw-Clamp to Shroud

$3.49

$

In Stock, only 3 left!

0

22

Lawn-Boy 145945

Retainer-Applique

$

$

Not available

23

Lawn-Boy 612754

Applique

$

$

Not available

24

$

$

Not available

25

Lawn-Boy 611395

Screw-Shroud to Base
(Superseded to 611543)

$4.49

$

In Stock, Qty 6

0
