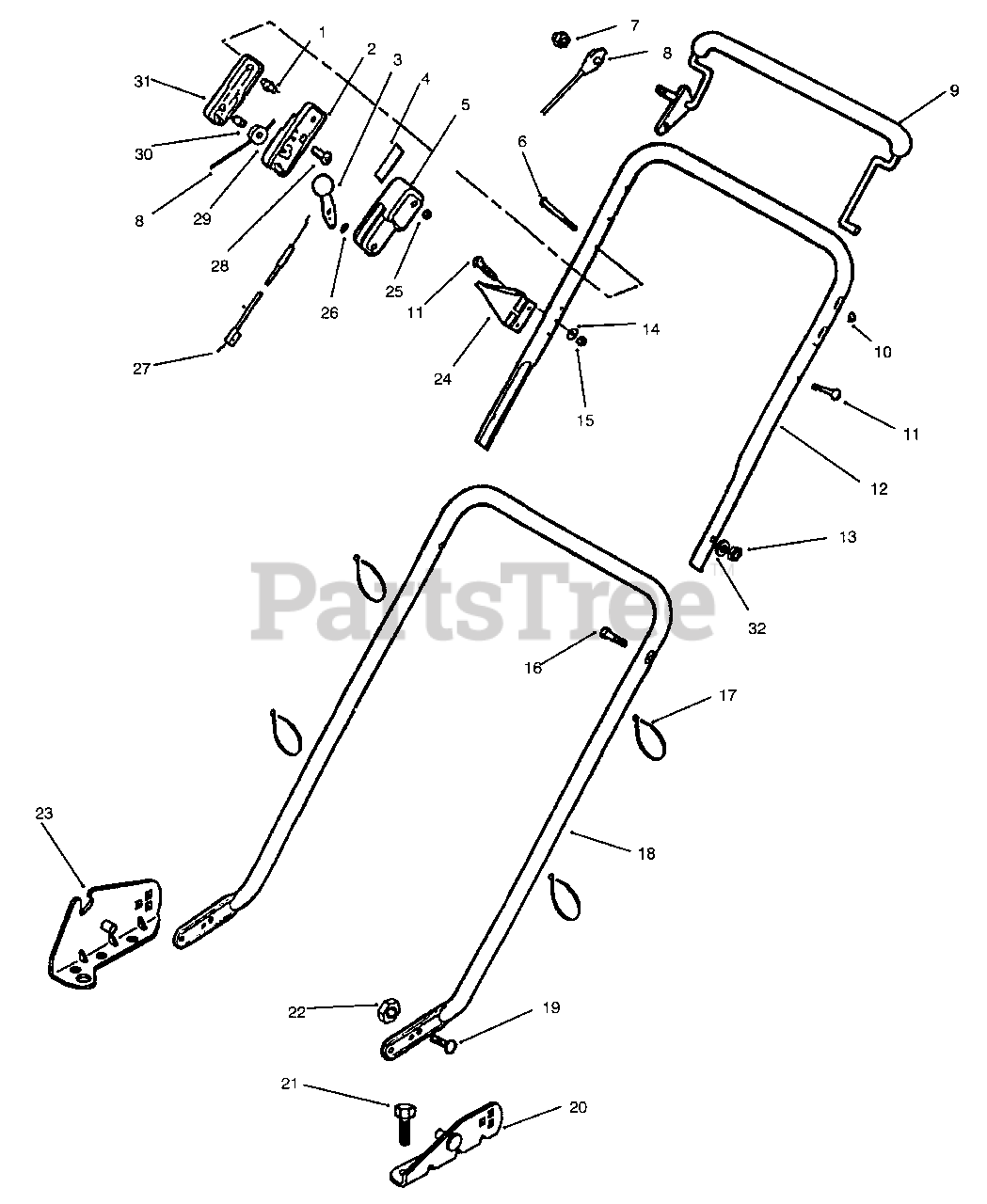

10600 - Lawn-Boy Walk-Behind Mower (SN: 003900001 - 003999999) (1993) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$14.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 612633

Case-Throttle, Center

$

$

Not available

3

Lawn-Boy 683663

Assembly-Knob & Lever

$

$

Not available

4

Lawn-Boy 612698

Decal-Control, Throttle

$

$

Not available

5

Lawn-Boy 612634

Case-Throttle, Inner

$

$

Not available

6

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 612168

Nut-Acorn

$19.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 683943

Cable-Throttle

$128.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 683478

Assembly-Lever, Control

$138.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

11

$

$

Not available

12

Lawn-Boy 614516

Handle-Top

$

$

Not available

13

Lawn-Boy 608311

Nut-Handle

$3.49

$

Usually ships in 3-6 days

0

14

$

$

Not available

$4.99

$

In Stock, only 2 left!

0

16

$3.49

$

In Stock, only 3 left!

0

17

Lawn-Boy 614249

Strap-Tie

$1.49

$

In Stock, Qty 6

0

18

Lawn-Boy 613048

Handle-Lower
(Superseded to 92-2920-05)

$131.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 800358

Bolt
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 684058

Bracket-Handle, L.H.
(Superseded to 684058-03)

$81.99

$

Usually ships in 3-6 days

0

21

$3.99

$

In Stock, only 3 left!

0

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 684057

Bracket-Handle, R.H.
(Superseded to 684057-03)

$

$

Not available

24

Lawn-Boy 153254

Assembly-Guide, Rope
(Superseded to 682684)

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

26

$2.99

$

In Stock, only 4 left!

0

27

Lawn-Boy 612567

Cable-Throttle

$83.99

$

In Stock, only 2 left!

0

28

$4.49

$

In Stock, Qty 6

0

29

$5.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 611542

Pin-Pulley

$

$

Not available

31

Lawn-Boy 611777

Case-Throttle, Outer

$32.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 609739

Washer-Screw, Handle

$3.49

$

In Stock, Qty 8

0
