106-8256 - Toro 48" Snow/Dozer Blade Conversion Kit for Tractors BLADE LEVER AND DOZER EXTENSION ASSEMBLY Parts Diagram

48" Snow/Dozer Blade Conversion Kit for Tractors

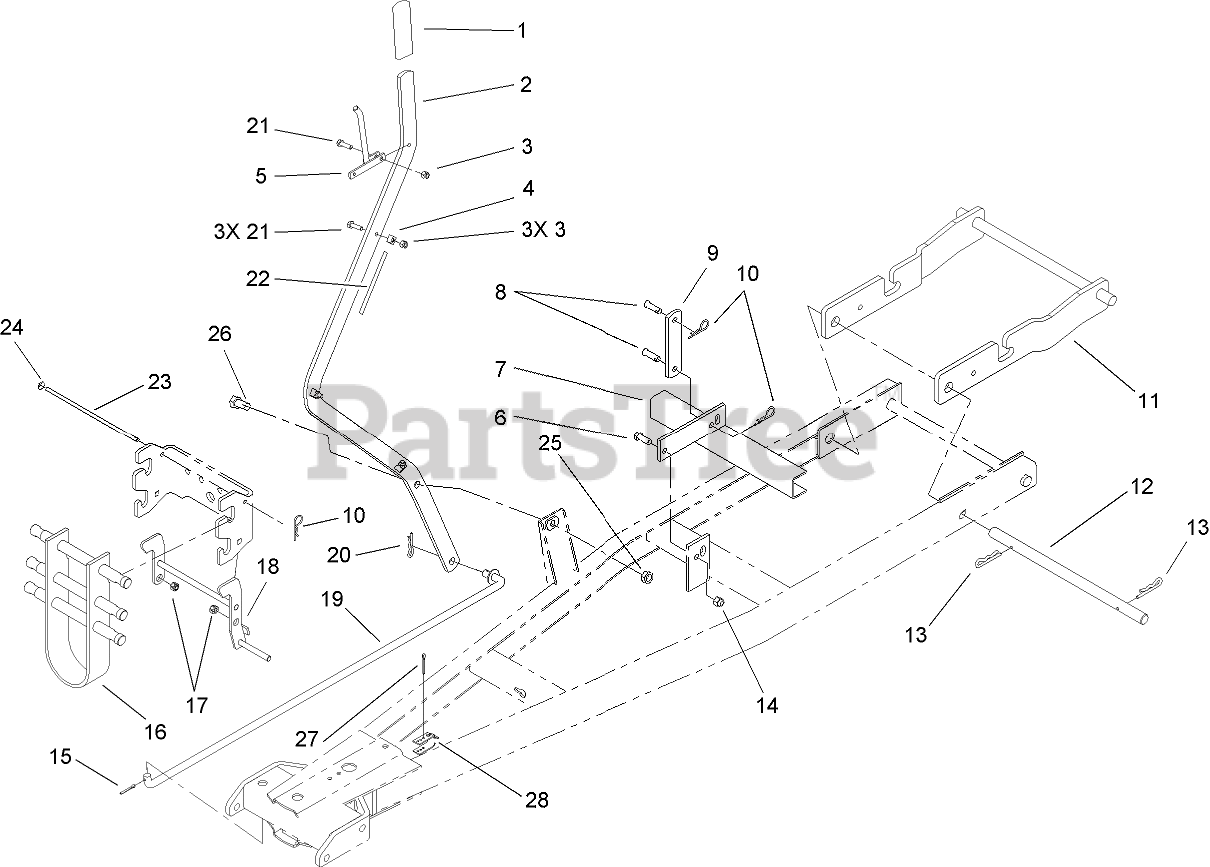

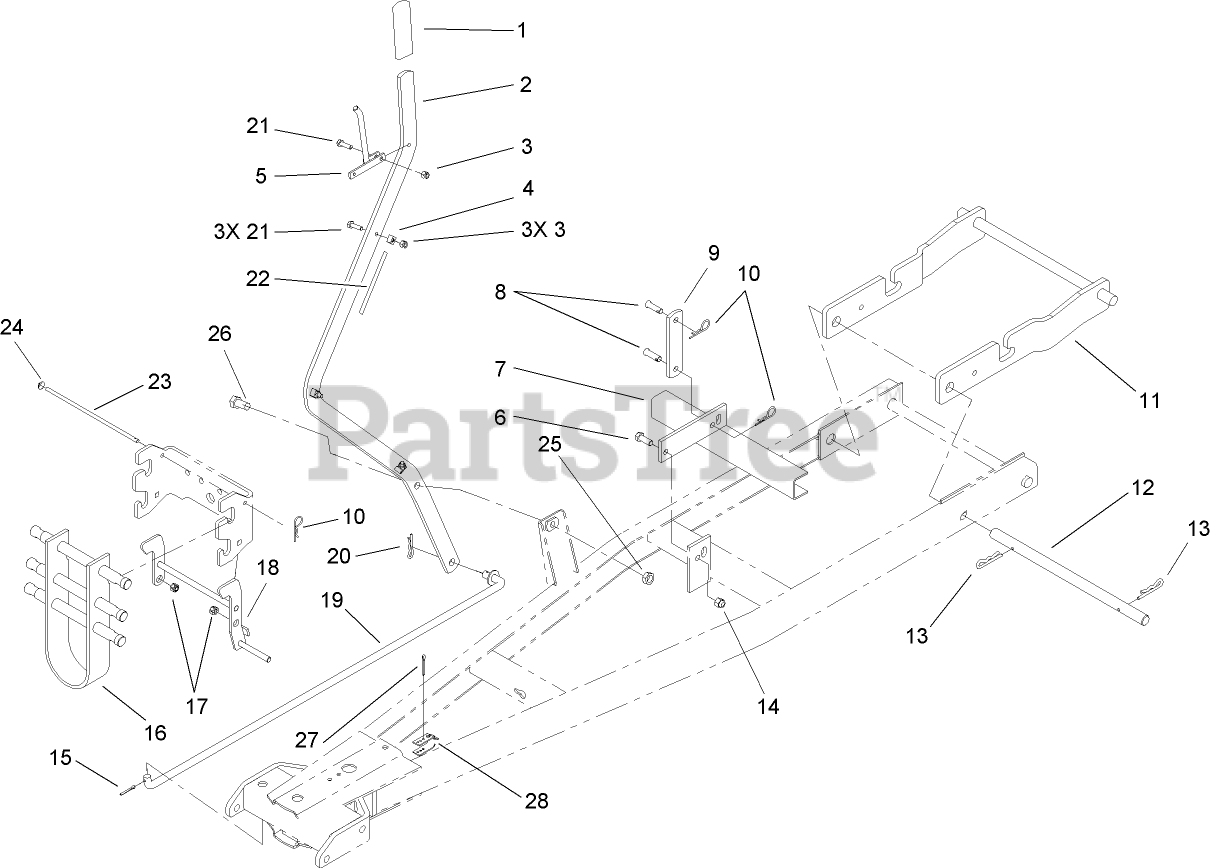

BLADE LEVER AND DOZER EXTENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

2

Toro 104-5073-03

LEVER-BLADE,INDEX

$

$

Not available

3

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

4

Toro 2412-32

R-CLAMP

$8.99

$

Usually ships in 3-6 days

0

5

Toro 92-7036

LEVER-INDEX

$103.99

$

Usually ships in 3-6 days

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 119790-03

LIFT ASM

$

$

Not available

8

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

9

Toro 105052

LINK-LIFT

$32.99

$

In Stock, only 3 left!

0

10

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

11

Toro 106-9893-03

DOZER EXT ASM

$

$

Not available

12

Toro 114595

SHAFT

$

$

Not available

13

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Toro 106-9907-03

ANTI SWAY ASM

$209.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 106-9905-03

LATCH ASM

$

$

Not available

19

Toro 79-4790

ROD

$159.99

$

Usually ships in 3-6 days

0

20

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

21

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 104-1289

CABLE-TENSION

$86.99

$

Usually ships in 3-6 days

0

23

Toro 106-9922

ROD-STOP

$

$

Not available

24

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

25

Toro 3218-18

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

26

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

27

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

28

Toro 94-7782

BRACKET - CABLE END

$

$

Not available
