106-8254 - Toro 42"/48" Vacuum Bagger Conversion Kit for Tractors BRACKET AND SHIELD ASSEMBLY Parts Diagram

42"/48" Vacuum Bagger Conversion Kit for Tractors

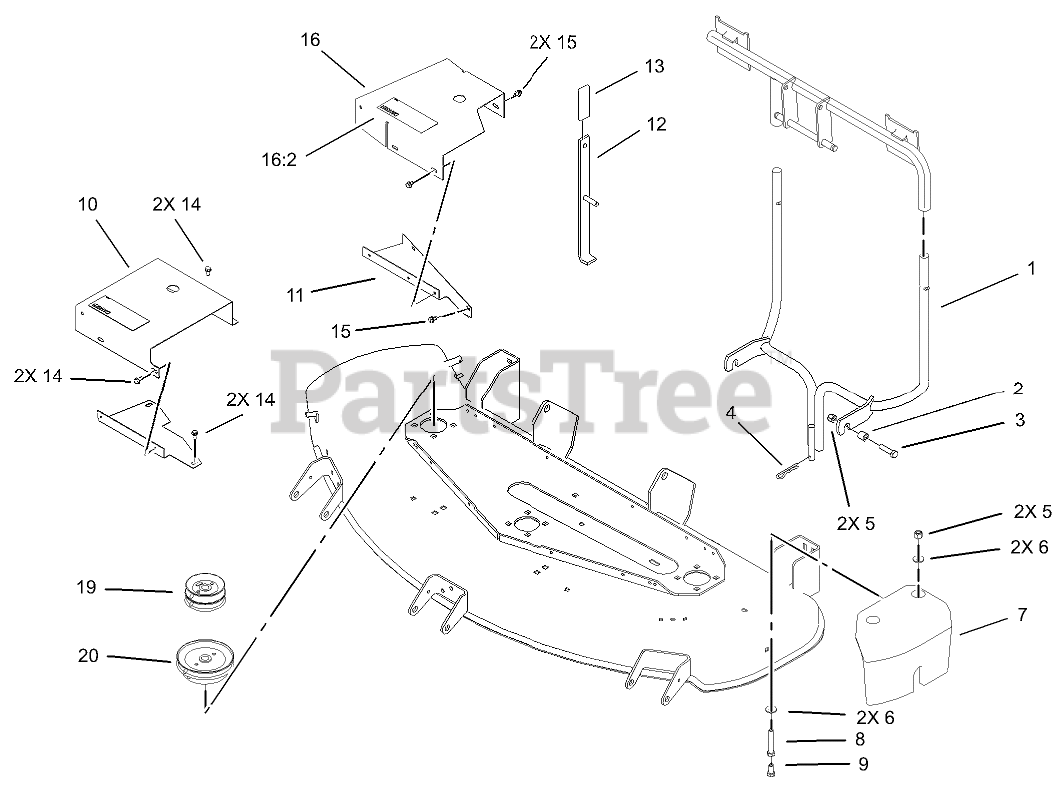

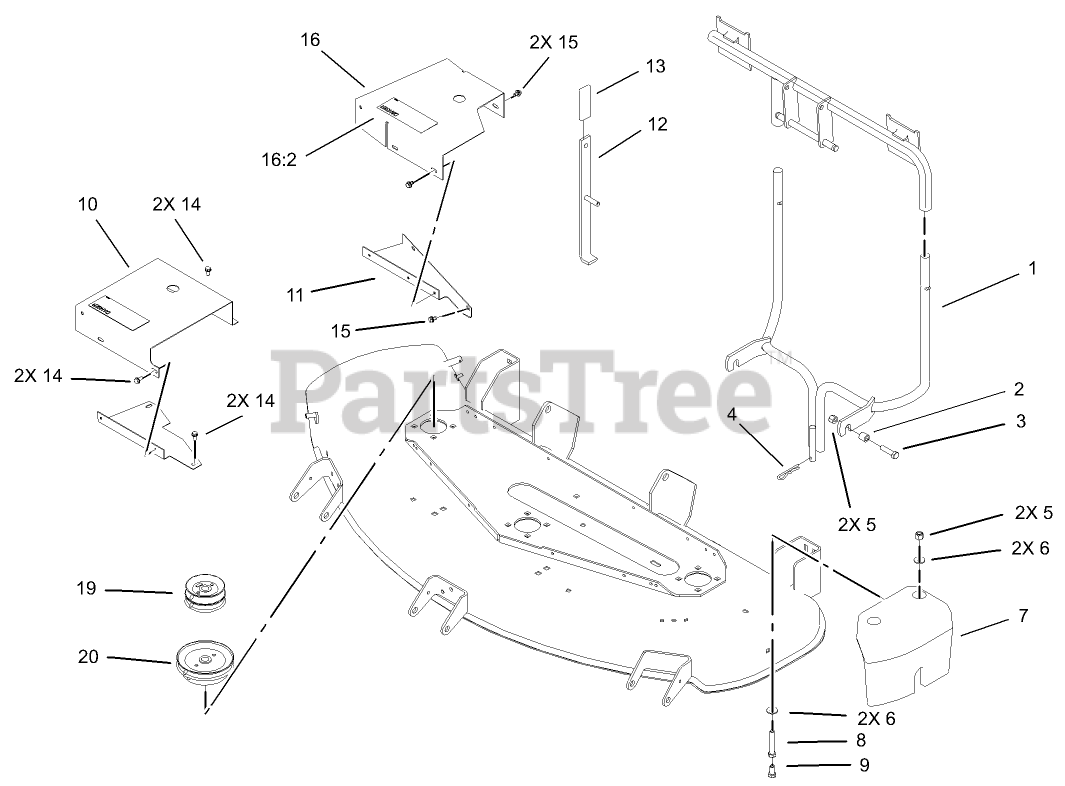

BRACKET AND SHIELD ASSEMBLY Parts Diagram

  • Title
1

Toro 92-7053-03

BRACKET-BAGGER

$

$

Not available

2

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

3

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 3256-56

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

7

Toro 98-3096

WEIGHT

$

$

Not available

8

Toro 323-45

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

9

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

10

Toro 106-8281

SHIELD ASM

$

$

Not available

11

Toro 106-8279-03

ADAPTER-SHIELD

$47.99

$

Usually ships in 3-6 days

0

12

Toro 106-9878-03

HOV LEVER ASM

$

$

Not available

13

$1.99

$

Usually ships in 3-6 days

0

14

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

15

Toro 3234-26

SCREW-HHF

$2.99

$

In Stock, Qty 15

0

16

Toro 98-5096

SHIELD ASM

$

$

Not available

16:2

Toro 92-7108

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

19

Toro 79-7310

PULLEY

$73.99

$

Usually ships in 3-6 days

0

20

Toro 79-7130

PULLEY

$120.99

$

Usually ships in 3-6 days

0
