106-8253 - Toro 42"/48" Side-Discharge Mower Conversion Kit for XT Series Tractors PULLEY BOX ASSEMBLY Parts Diagram

42"/48" Side-Discharge Mower Conversion Kit for XT Series Tractors

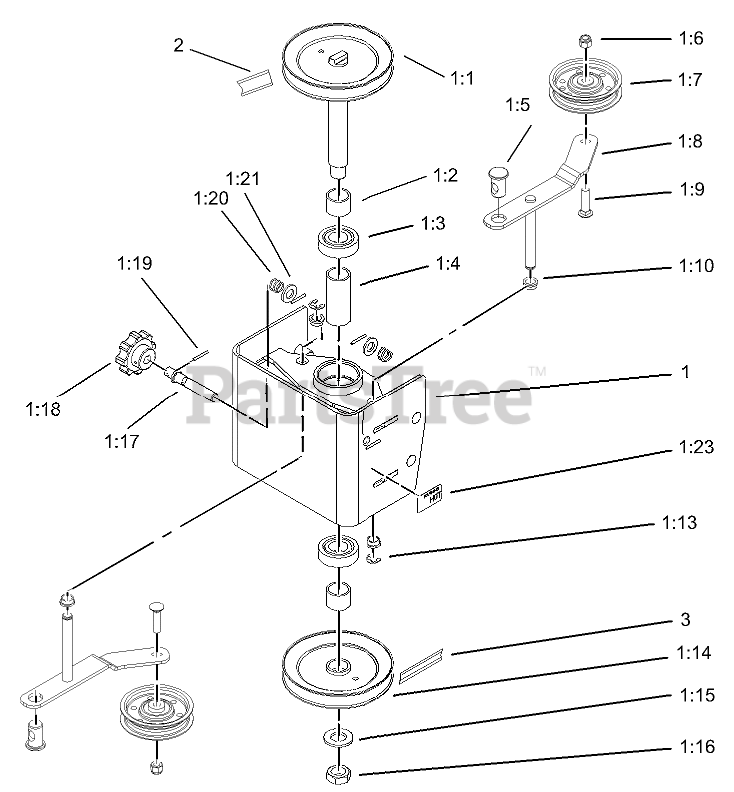

PULLEY BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5562

PULLEY BOX ASM

$1254.99

$

Usually ships in 3-6 days

0

1:1

Toro 106-5625

UPPER PULLEY ASM

$

$

Not available

1:2

Toro 106-5634

SPACER-PULLEY

$

$

Not available

1:3

Toro 251-82

BEARING-BALL

$20.99

$

In Stock, Qty 6

0

1:4

Toro 106-5633

SPACER-BEARING

$

$

Not available

1:5

Toro 105-1397

Ferrule-Adjuster

$

$

Not available

1:6

Toro 3296-22

NUT-LOCK, NI
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

1:7

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

In Stock, only 2 left!

0

1:8

Toro 106-5636

IDLER ARM ASM

$68.99

$

Usually ships in 3-6 days

0

1:9

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

1:10

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

1:13

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

1:14

Toro 106-5627

LOWER PULLEY ASM

$

$

Not available

1:15

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

1:16

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

1:17

Toro 106-4024

ROD-TENSION

$

$

Not available

1:18

Toro 105-1492

Knob-Adjusting

$

$

Not available

1:19

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

1:20

Toro 106-9892

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

1:21

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

1:23

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

2

Toro 106-5631

BELT-PTO

$98.99

$

In Stock, only 2 left!

0

3

Toro 106-9883

BELT-DRIVE (42/48 SD CONV

$217.99

$

Usually ships in 3-6 days

0
