106-8252 - Toro 36"/42" Rear-Discharge Mower Conversion Kit for XT Series Tractors DECK MOUNTING ASSEMBLY Parts Diagram

36"/42" Rear-Discharge Mower Conversion Kit for XT Series Tractors

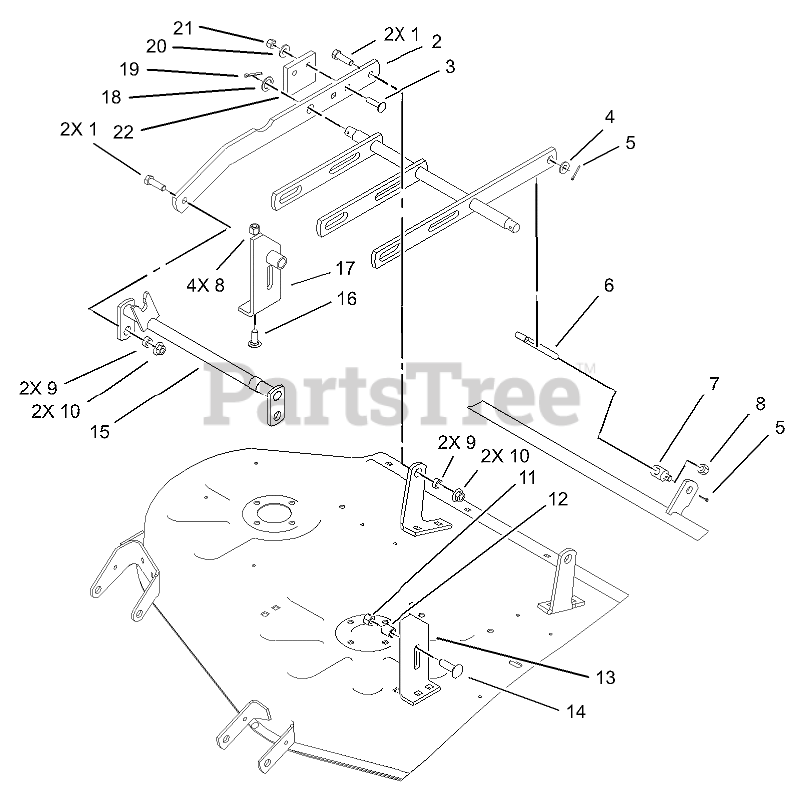

DECK MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 106-5641-03

BAR-DRAFT

$

$

Not available

3

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 106-9881

ROD-ADJUSTING (36/42" RD

$

$

Not available

7

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 114127

SPACER

$8.99

$

In Stock, only 2 left!

0

10

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

13

Toro 106-9901-03

FRONT DECK BRACKET,RH (BL

$

$

Not available

14

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

15

Toro 106-5644-03

HITCH ASM

$

$

Not available

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 106-9900-03

FRONT DECK BRACKET,LH (BL

$

$

Not available

18

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0
