106-5470 - Toro 52" Discharge Chute Retrofit Kit for 100 Series Z Master DISCHARGE CHUTE ASSEMBLY Parts Diagram

52" Discharge Chute Retrofit Kit for 100 Series Z Master

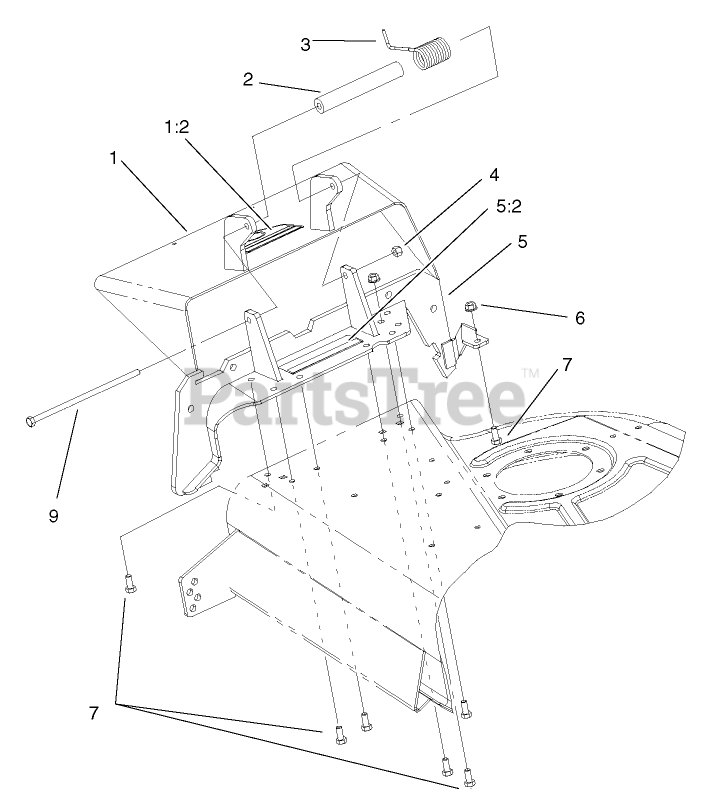

DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 105-4623

Deflector ASM

$365.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

2

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

3

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 106-5454

Plate-Discharge

$707.99

$

Usually ships in 3-6 days

0

5:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

6

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

99

Toro 106-2053

Kit-Valve, Shock (only on:105-5451)

Note: Not illustrated

$

$

Not available
