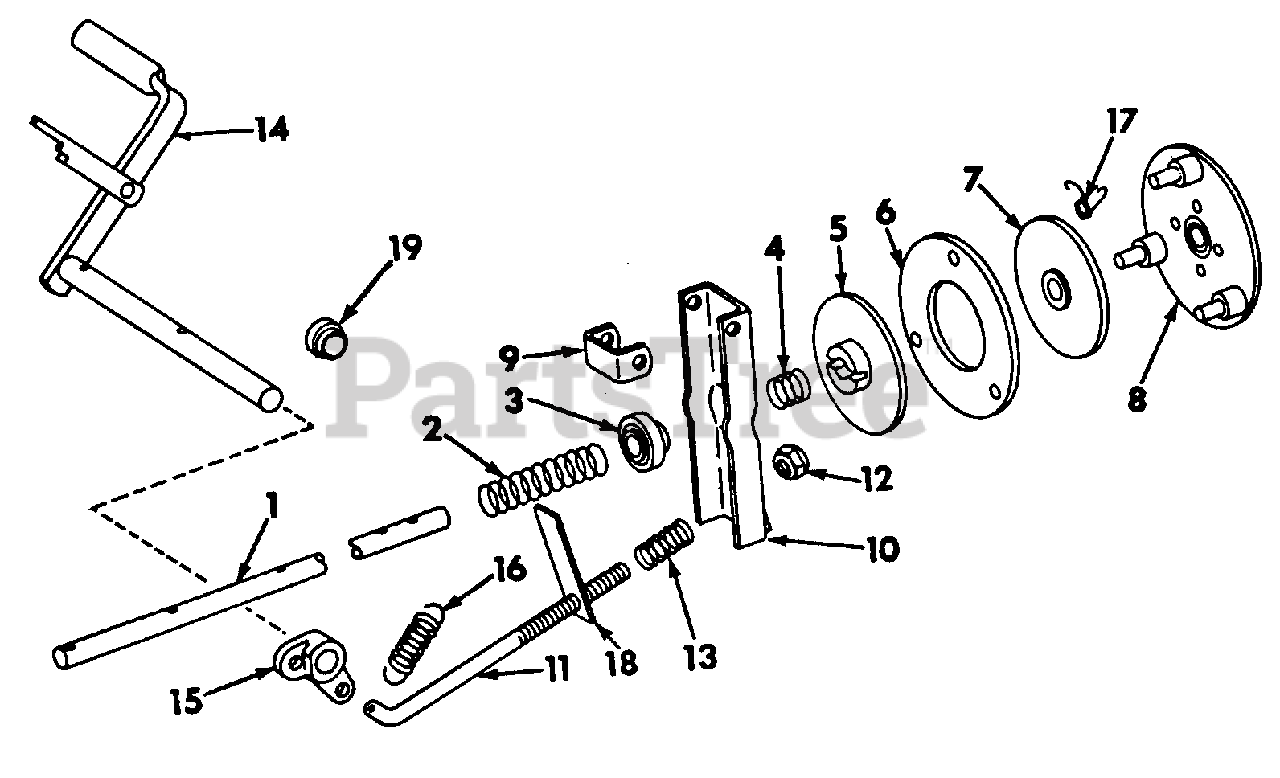

106 (2050037U) - Cub Cadet Garden Tractor Clutch Parts Diagram

Garden Tractor

Clutch Parts Diagram

  • Title

1

Cub Cadet IH-385982-R91

Package, Clutch Shaft Service

$229.99

$

In Stock, only 4 left!

0

Cub Cadet 715-3014

Pin, 1/4 X 1-1/8 Hv Coiled Spring
(Superseded to 915-3014)

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 732-3016

Spring, Clutch Loading
(Superseded to 932-3016)

$49.99

$

In Stock, Qty 15

0

Cub Cadet 736-0156

Washer, 21/32 X 1 X 11 Ga

$4.49

$

In Stock, Qty 12

0

3

Cub Cadet IH-391237-R91

Bearing, Clutch Throwout Ball
(Superseded to 941-3056)

$107.99

$

In Stock, Qty 9

0

4

Cub Cadet 732-3017

Spring, Clutch Teasing

$8.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-0213

Hub Assy, Pressure Plate
(Superseded to 903-0213)

$190.99

$

In Stock, only 3 left!

0

6

Cub Cadet 761-3002

Disc, Clutch Driving
(Superseded to 961-3002)

$94.99

$

In Stock, Qty 10

0

7

Cub Cadet 703-0214

Hub Assy, Pressure Plate Locating
(Superseded to 903-0214)

$121.99

$

In Stock, only 4 left!

0

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 5

0

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Med Coiled Spring
(Superseded to 915-3000)

$

$

Not available

8

Cub Cadet IH-384652-R11

Plate Assy, Driving
(Superseded to IH-384652-R12)

$270.99

$

In Stock, only 1 left!

0

Cub Cadet IH-376265-R1

Bushing
(Superseded to IH-376265-R2)

$

$

Not available

Screw, 1/4-20 X 5/8 Hex Hd Cap*

$

$

Not available

Washer, 1/4 Med Lock *

$

$

Not available

9

Cub Cadet IH-384656-R1

Bracket, Clutch Operating Yoke
(Superseded to IH-384656-R2)

$47.99

$

Usually ships in 3-6 days

0

Nut, 1/4-20 Hex *

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-384657-R3

Lever, Clutch Release
(Superseded to IH-384657-R5)

$

$

Not available

Cub Cadet 711-0755

Pin, 3/8 X 2-7/16 Hardened Std Hd
(Superseded to 911-0755)

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Cot

$4.99

$

In Stock, Qty 13

0

11

Cub Cadet IH-405590-R1

Rod, Release

$

$

Not available

Cub Cadet 736-0140

Washer, 13/32 X 3/4 X 16 Ga C-Z

$7.49

$

In Stock, Qty 7

0

Cub Cadet 714-0474

Pin, 1/8 X 3/4 C-Z Cot

$4.99

$

In Stock, Qty 13

0

12

Cub Cadet 712-3061

Nut, 3/8-24 Hex Self-Align

$6.99

$

In Stock, Qty 14

0

13

Cub Cadet 732-3023

Spring, Clutch Release Rod
(Superseded to 932-3023)

$19.99

$

In Stock, Qty 7

0

Cub Cadet IH-103341

Washer, 13/32 X 13/16 X .065

$

$

Not available

14

~NLA

Pedal Assy, Clutch & Brake

$

$

Not available

15

~NLA

Arm, Clutch & Brake Pedal

$

$

Not available

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Med Coiled Spring
(Superseded to 915-3000)

$

$

Not available

16

Cub Cadet 732-3015

Spring, Pedal Return
(Superseded to 932-3015)

$12.99

$

In Stock, Qty 11

0

17

Cub Cadet 732-3018

Spring, Clutch Driving Disc

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet IH-393123-R1

Strip, Safety Switch Release Lever

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex Jam
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

Cub Cadet 736-0148

Washer, 3/8 Ext Tooth Lock

$3.99

$

In Stock, Qty 20+

0

19

~NLA

Bearing, Clutch Pedal Shaft

$

$

Not available
