10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) TRANSMISSION ASSEMBLY Parts Diagram

M-Series Walk-Behind Mower

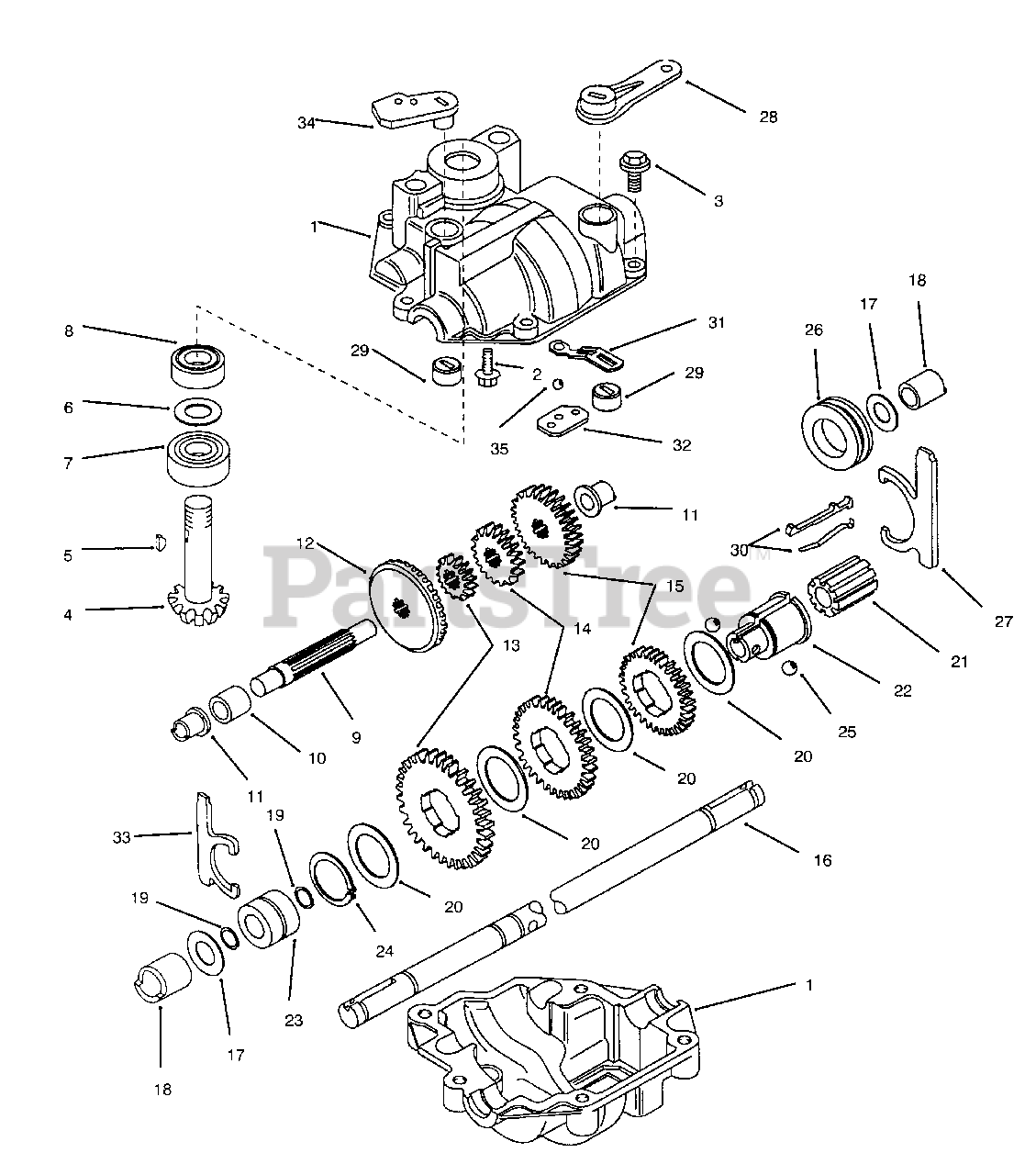

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 684731

Kit-Upper & Lower Case (Incl. Sealant)

$

$

Not available

2

Lawn-Boy 614625

Screw-Tapping

$

$

Not available

3

Lawn-Boy 614626

Screw-Tapping

$

$

Not available

4

Lawn-Boy 614600

Shaft-Input

$

$

Not available

5

Lawn-Boy 611840

Key-Woodruff

$

$

Not available

6

$

$

Not available

7

Lawn-Boy 614602

Bearing-Lower

$

$

Not available

8

Lawn-Boy 614603

Bearing-Upper

$

$

Not available

9

Lawn-Boy 684736

Kit-Shaft, Reduction (Incl. Ref. No.10-11)

$

$

Not available

10

$25.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 684732

Bushing Set

$

$

Not available

12

Lawn-Boy 614604

Ring Gear

$

$

Not available

13

Lawn-Boy 684733

Gear Set

$

$

Not available

14

Lawn-Boy 684734

Gear Set

$

$

Not available

15

Lawn-Boy 684735

Gear Set

$

$

Not available

16

Lawn-Boy 684740

Kit-Axle Shaft (Incl. Ref. No.17-19)

$

$

Not available

17

$

$

Not available

18

Lawn-Boy 684737

Bushing Set

$

$

Not available

19

Lawn-Boy 614613

Ring-Snap

$

$

Not available

20

$15.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 614608

Key-Holder,

$

$

Not available

22

Lawn-Boy 614609

Collar-Shift

$

$

Not available

23

$

$

Not available

24

Lawn-Boy 614614

Ring-Snap

$

$

Not available

25

Lawn-Boy 614615

Ball
(Superseded to 92-0784)

$1.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 614616

Collar-Sliding

$89.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 614617

Fork-Shift

$

$

Not available

28

Lawn-Boy 614316

Arm-Shift

$

$

Not available

29

Lawn-Boy 614618

Support-Fork

$

$

Not available

30

Lawn-Boy 684739

Spring & Key-Shift

$

$

Not available

31

$

$

Not available

32

$

$

Not available

33

Lawn-Boy 614621

Fork-Clutch

$

$

Not available

34

Lawn-Boy 614317

Arm-Clutch

$

$

Not available

35

$

$

Not available
