10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) CARBURETOR ASSEMBLY Parts Diagram

M-Series Walk-Behind Mower

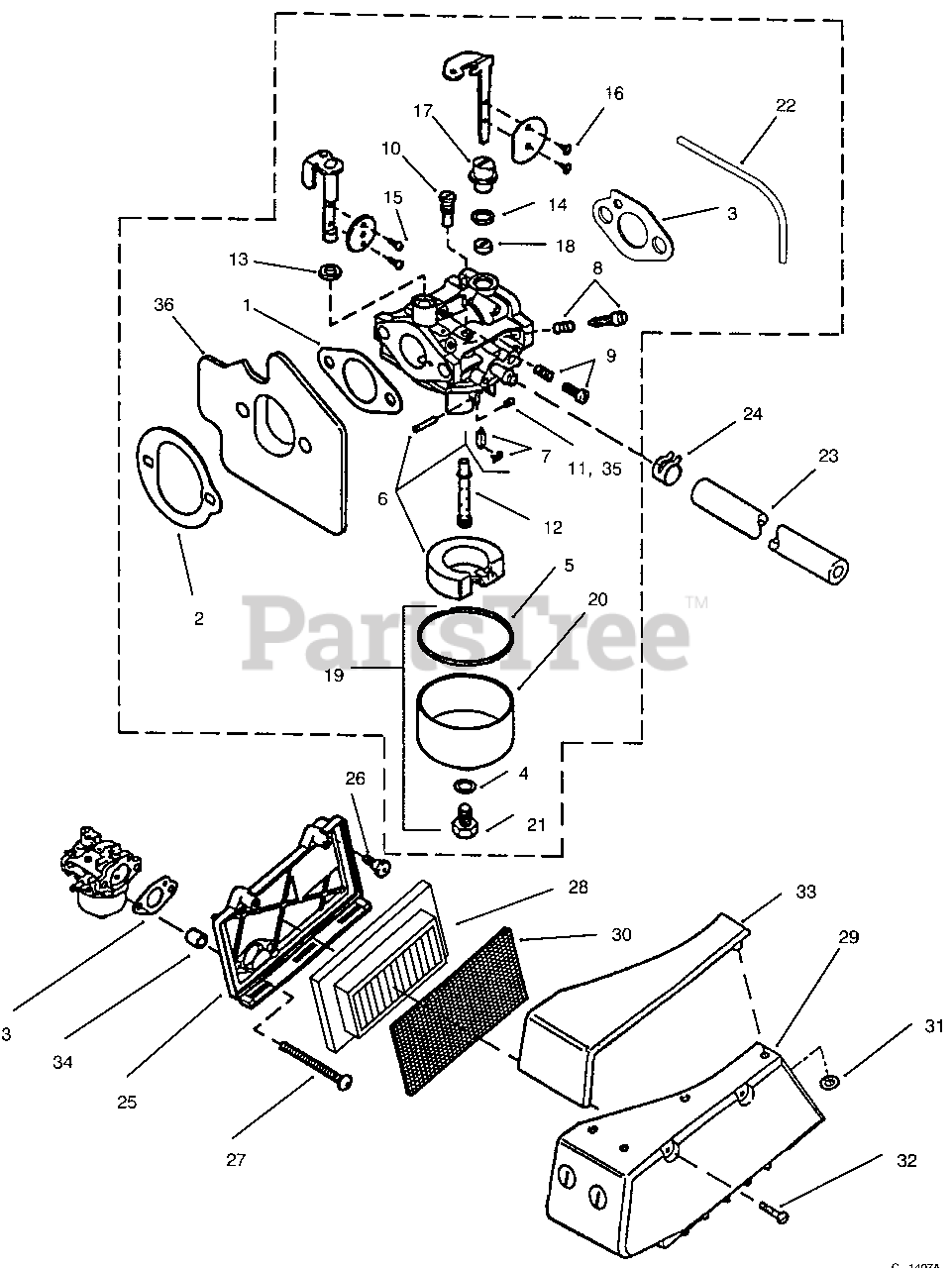

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 613180

Gasket-Carb. to Spacer

$8.49

$

In Stock, only 2 left!

0

2

Lawn-Boy 613181

Gasket-Spacer to Engine

$2.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 613748

Gasket-Air Filter Base

$2.49

$

In Stock, Qty 6

0

4

Lawn-Boy 613641

Gasket-Bowl Retainer

$5.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613642

Gasket-Fuel Bowl

$

$

Not available

6

Lawn-Boy 684281

Kit-Float & Needle (Incl. Ref. No. 7)

$

$

Not available

7

Lawn-Boy 684282

Needle and Clip

$

$

Not available

8

Lawn-Boy 684283

Kit-Idle Needle & Spring

$

$

Not available

9

Lawn-Boy 684284

Kit-Idle Speed

$

$

Not available

10

Lawn-Boy 613647

Pilot Jet

$24.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613918

Main Jet

$

$

Not available

12

Lawn-Boy 613649

Nozzle

$

$

Not available

13

Lawn-Boy 613650

Seal-Throttle Shaft

$

$

Not available

14

Lawn-Boy 613651

Seal-Choke Shaft

$

$

Not available

15

Lawn-Boy 613655

Screw-Throttle Valve

$

$

Not available

16

Lawn-Boy 613656

Screw-Choke Valve

$

$

Not available

17

Lawn-Boy 613657

Pivot-Upper Choke Shaft

$

$

Not available

18

Lawn-Boy 613658

Pivot-Lower Choke Shaft

$

$

Not available

19

Lawn-Boy 684478

Kit-Bowl (Incl. Ref. No. 4, 5, 20, & 21)

$

$

Not available

20

Lawn-Boy 614175

Bowl-Fuel

$

$

Not available

21

Lawn-Boy 614176

Screw-Bowl Retainer

$

$

Not available

22

Lawn-Boy 614239

Hose-Carb Vent

$

$

Not available

23

Lawn-Boy 613531

Gas Line

$

$

Not available

24

Lawn-Boy 613489

Clamp-Hose

$3.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613348

Base-Air Filter

$

$

Not available

26

Lawn-Boy 613353

Bolt

$

$

Not available

27

Lawn-Boy 613327

Screw-Carb. to Engine

$

$

Not available

28

Lawn-Boy 613361

Filter-Air

$28.99

$

In Stock, only 3 left!

0

29

Lawn-Boy 684559

Assembly-Cover, Air Filter (Incl. Ref.. No. 30-33)

$222.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 614245

Pre-Filter

$

$

Not available

31

Lawn-Boy 613329

Pushnut

$2.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 613349

Screw

$

$

Not available

33

Lawn-Boy 613379

Cover-Air Box

$

$

Not available

34

Lawn-Boy 613352

Spacer

$1.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 613893

Main Jet-High Altitude (Over 3500 feet)

$

$

Not available

36

Lawn-Boy 684080

Assy.-Spacer & Oil Nozzle

$

$

Not available

Lawn-Boy 684548

Kit-Carb. & Gasket (Incl. Ref. No.1-22)

Note: Not Illustrated

$

$

Not available
