10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) HOUSING-MODEL NO. 10591 Parts Diagram

M-Series Walk-Behind Mower

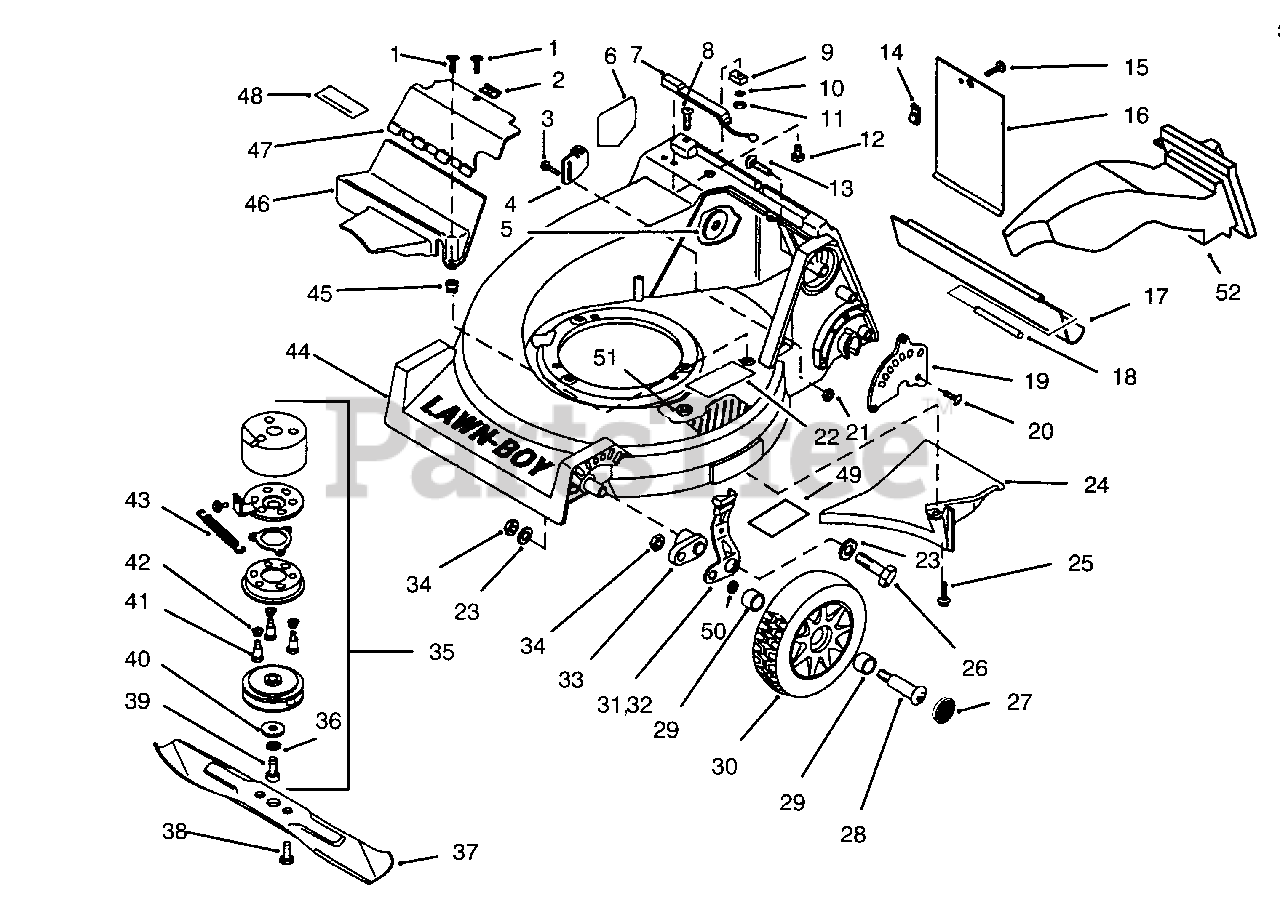

HOUSING-MODEL NO. 10591 Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 613341

Speednut

$

$

Not available

3

Lawn-Boy 700748

Screw-Anchor to Housing

$

$

Not available

4

Lawn-Boy 614522

Cable-Anchor

$

$

Not available

5

Lawn-Boy 613910

Washer-R.H. Handle Mtg.
(Superseded to 5-3177)

$2.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 43-8480

Decal-Blade Warning

$6.49

$

In Stock, Qty 6

0

7

Lawn-Boy 684366

Assy.-Switch, Bag Lock

$

$

Not available

8

$

$

Not available

9

Lawn-Boy 684193

Assembly-Magnet

$

$

Not available

10

Lawn-Boy 613625

Lockwasher

$

$

Not available

$

$

Not available

12

$

$

Not available

13

Lawn-Boy 613321

Bolt-Handle Mounting

$

$

Not available

14

Lawn-Boy 613340

Speednut

$1.99

$

Usually ships in 3-6 days

0

15

$1.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 613346

Door-Access

$

$

Not available

17

Lawn-Boy 92-9553

Shield-Trailing

$

$

Not available

18

$1.49

$

In Stock, Qty 6

0

19

Lawn-Boy 614433

Plate-Height Adjustment

$

$

Not available

20

$5.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 613624

Decal-Foot Pad

$

$

Not available

23

$1.99

$

Usually ships in 3-6 days

0

24

$39.99

$

Usually ships in 3-6 days

0

25

$3.49

$

In Stock, only 3 left!

0

26

$

$

Not available

27

$2.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 92-1057

Bolt-Wheel

$3.99

$

In Stock, Qty 15

0

29

Lawn-Boy 27-6250

Bushing-Wheel

$2.99

$

In Stock, Qty 15

0

30

Lawn-Boy 684777

Assembly Wheel & Tire (Incl. Ref. No. 29)

$52.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 684220

Assy.-Knob & Spring, L.H.

$

$

Not available

32

Lawn-Boy 684219

Assy.-Knob & Spring, R.H

Note: Not Illustrated

$

$

Not available

33

Lawn-Boy 613917

Arm-Front Height Adj.

$91.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610358

Nut-Jam

$2.49

$

In Stock, only 2 left!

0

35

Lawn-Boy 684092

Clutch & Brake Assy (Incl. Ref. No. 36, & 39-43)

$

$

Not available

36

Lawn-Boy 611413

Lockwasher

$

$

Not available

37

Lawn-Boy 612540

Blade-21"
(Superseded to 612540-03)

$38.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 611398

Screw-Blade

$15.99

$

Usually ships in 3-6 days

0

39

$

$

Not available

40

$30.99

$

Usually ships in 3-6 days

0

41

$

$

Not available

42

Lawn-Boy 611418

Spring-Compression

$

$

Not available

43

Lawn-Boy 611415

Spring-Extension

$58.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 684688

Assembly-Housing (Incl. Ref. No. 5-6,13, & 24-25)

$1458.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611380

Grommet

$3.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 613532

Cover-Lower Drive

$

$

Not available
