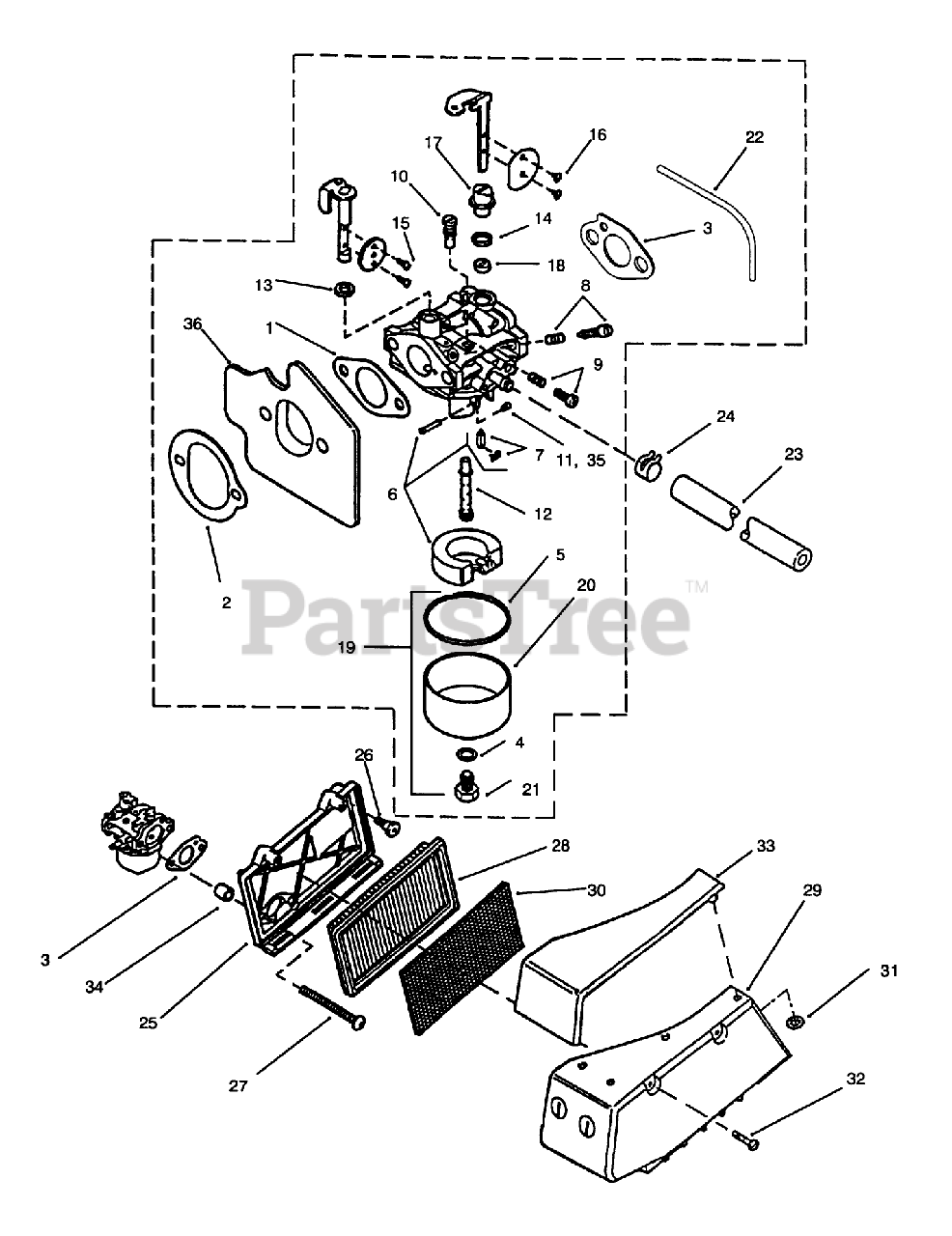

10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) Carburetor Assembly Parts Diagram

M-Series Walk-Behind Mower

Carburetor Assembly Parts Diagram

  • Title
1

Lawn-Boy 613180

GASKET SM

$7.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 613181

GASKET SM

$2.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 613748

GASKET-FIL SM

$2.49

$

In Stock, Qty 6

0

4

Lawn-Boy 613641

GASKET-BOWL RET S

$5.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613642

GASKET-FUELBOWL S

$

$

Not available

6

Lawn-Boy 684281

DISCONTINUED

$

$

Not available

7

Lawn-Boy 684282

NEEDLE & CLIP S

$

$

Not available

8

Lawn-Boy 684283

DISCONTINUED

$

$

Not available

9

Lawn-Boy 684284

DISCONTINUED

$

$

Not available

10

Lawn-Boy 613647

PILOT JET

$23.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613918

CARB JET

$

$

Not available

12

Lawn-Boy 613649

DISCONTINUE

$

$

Not available

13

Lawn-Boy 613650

DISCONTINUED

$

$

Not available

14

Lawn-Boy 613651

SEAL CHOKE SHAFT

$

$

Not available

15

Lawn-Boy 613655

DISCONTINUED

$

$

Not available

16

Lawn-Boy 613656

SCREW CHOKE VALVE

$

$

Not available

17

Lawn-Boy 613657

DISCONTINUED

$

$

Not available

18

Lawn-Boy 613658

DISCONTINUED

$

$

Not available

19

Lawn-Boy 684478

DISCONTINUED

$

$

Not available

20

Lawn-Boy 614175

DISCONTINUED

$

$

Not available

21

Lawn-Boy 614176

SCREW,BOWL RET S

$

$

Not available

22

Lawn-Boy 614239

HOSE-CARB.VENT SM

$

$

Not available

23

Lawn-Boy 613531

GAS LINE SM

$

$

Not available

24

Lawn-Boy 613489

HOSE CLAMP SM

$3.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613348

DISCONTINUED

$

$

Not available

26

Lawn-Boy 613353

DISCONTINUED

$

$

Not available

27

Lawn-Boy 613327

DISCONTINUED

$

$

Not available

28

Lawn-Boy 613361

ELEMENT-AIR SM

$27.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 684559

AIR FILTER COVER

$209.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 614245

DISCONTINUED

$

$

Not available

31

Lawn-Boy 613329

NUT-PUSH

$2.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 613349

DISCONTINUED

$

$

Not available

34

Lawn-Boy 613352

DISCONTINUED

$1.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 613893

MAIN JET

$

$

Not available

36

Lawn-Boy 684080

SPACER & NOZZ SM

$

$

Not available

Lawn-Boy 684548

DISCONTINUED

Note: Not illustrated

$

$

Not available
