10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) SHROUD-FUEL/OIL TANK-MODEL NO. 10591 Parts Diagram

M-Series Walk-Behind Mower

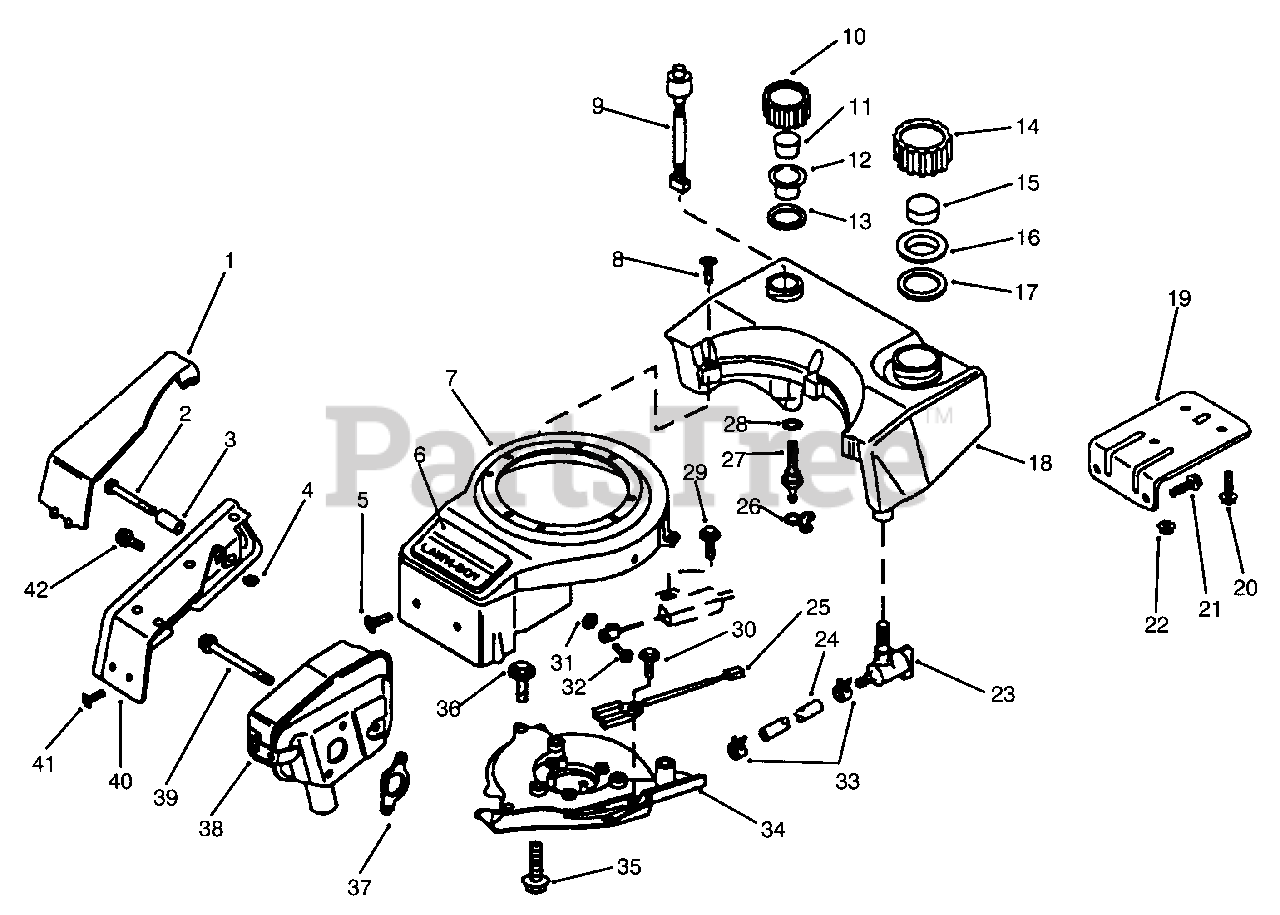

SHROUD-FUEL/OIL TANK-MODEL NO. 10591 Parts Diagram

  • Title
1

Lawn-Boy 613378

Cover-Muffler

$

$

Not available

2

Lawn-Boy 613372

Screw-Muffler Guard

$

$

Not available

3

Lawn-Boy 613371

Spacer-Muffler Guard

$

$

Not available

4

Lawn-Boy 613329

Pushnut

$2.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613281

Screw-Shroud
(Superseded to 3274-31)

$1.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 614041

Applique

$

$

Not available

7

Lawn-Boy 684429

Assembly-Shroud (Incl. Ref. No. 6)
(Superseded to 93-1219)

$

$

Not available

8

Lawn-Boy 613330

Screw-Fuel Tank

$

$

Not available

9

Lawn-Boy 684376

Switch-Low Oil

$131.99

$

Usually ships in 3-6 days

0

Lawn-Boy 705137

Nut-Oil Switch

Note: Not Illustrated

$

$

Not available

10

Lawn-Boy 684105

Assembly-Oil Cap (Incl. Ref. No. 11-13)

$

$

Not available

11

$

$

Not available

12

Lawn-Boy 614272

Cover-Baffle

$

$

Not available

13

$

$

Not available

14

Lawn-Boy 684104

Fuel Cap Assembly (Incl. Ref. No. 15-17)

$

$

Not available

15

$6.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 614271

Cover-Baffle

$5.49

$

Usually ships in 3-6 days

0

17

$

$

Not available

18

Lawn-Boy 684375

Tank-Fuel/Oil (Incl. Ref. No. 9,23 & 27-28
(Superseded to 93-1208)

$

$

Not available

19

Lawn-Boy 614173

Bracket-Fuel Tank

$

$

Not available

20

$

$

Not available

21

Lawn-Boy 613337

Screw-Tank Bracket/Block

$

$

Not available

22

Lawn-Boy 613500

Screw-Mtg. Plate/Engine

$9.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 684093

Shut-Off Valve-Fuel

$

$

Not available

24

Lawn-Boy 613531

Fuel Line

$

$

Not available

25

Lawn-Boy 684368

Switch-Brake Interlock
(Superseded to 98-2861)

$

$

Not available

26

Lawn-Boy 613516

Clamp-Oil Hose

$

$

Not available

27

Lawn-Boy 684336

Assembly-Oil Fitting (Incl. Ref. No. 28)

$

$

Not available

28

$

$

Not available

29

$4.49

$

In Stock, only 2 left!

0

30

Lawn-Boy 613504

Screw-Interlock Switch

$

$

Not available

$4.99

$

In Stock, only 2 left!

0

32

$

$

Not available

33

Lawn-Boy 613489

Clamp-Fuel Line

$3.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy 613273

Plate-Engine Mounting

$

$

Not available

35

Lawn-Boy 613500

Screw-Mtg. Plate/housing

$9.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 612640

Screw-Mtg Plate/Housing

$6.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 613266

Gasket-Exhaust

$

$

Not available

38

Lawn-Boy 684579

Muffler

$

$

Not available

39

Lawn-Boy 613282

Screw-Muffler

$

$

Not available

40

Lawn-Boy 684157

Assembly-Muffler Guard (Incl. Ref. No. 1 & 4)

$203.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 613576

Screw-Muffler Guard

$

$

Not available

42

Lawn-Boy 700056

Screw-Muffler Guard

$

$

Not available
