10590 - Lawn-Boy M-Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) STARTER ASSEMBLY Parts Diagram

M-Series Walk-Behind Mower

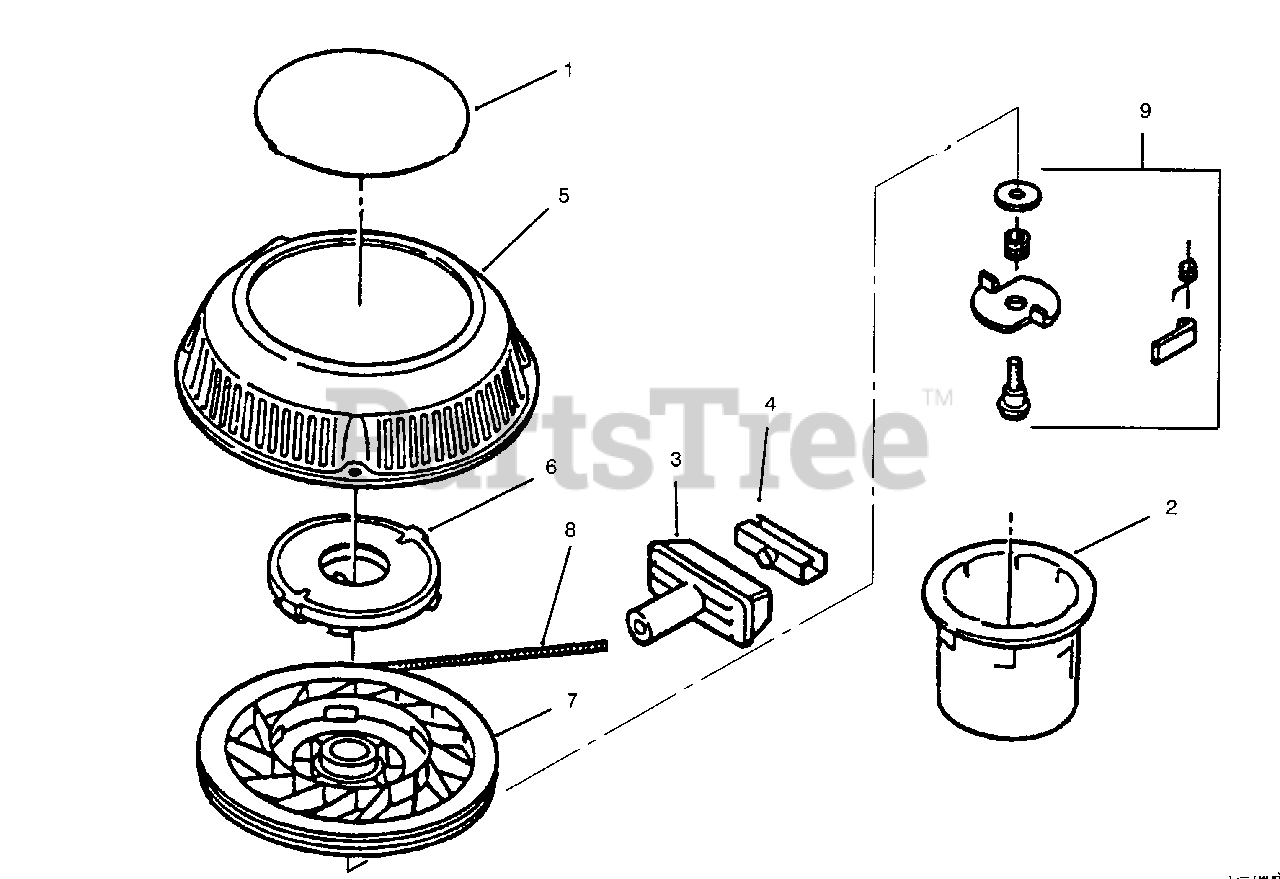

STARTER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-2923

Decal-Model No.10590

$

$

Not available

1

Lawn-Boy 92-2924

Decal-Model No.10591

$

$

Not available

2

Lawn-Boy 612429

Hub-Starter

$

$

Not available

3

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 612824

Insert-Clip, Rope

$4.49

$

In Stock, Qty 10

0

5

Lawn-Boy 684567

Housing-Starter

$140.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-4935

Recoil Spring & Keeper

$

$

Not available

7

$28.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 612432

Rope
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 683899

Assembly-Dog Kit

$91.99

$

In Stock, Qty 7

0

Lawn-Boy 612428

Screw-Sems

Note: Not Illustrated

$2.49

$

In Stock, only 4 left!

0

Lawn-Boy 684622

Assembly-Starter (Inc. Ref. No. 5-9)

Note: Not Illustrated

$

$

Not available
