10590 - Lawn-Boy M-Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) HOUSING-MODEL NO. 10590 Parts Diagram

M-Series Walk-Behind Mower

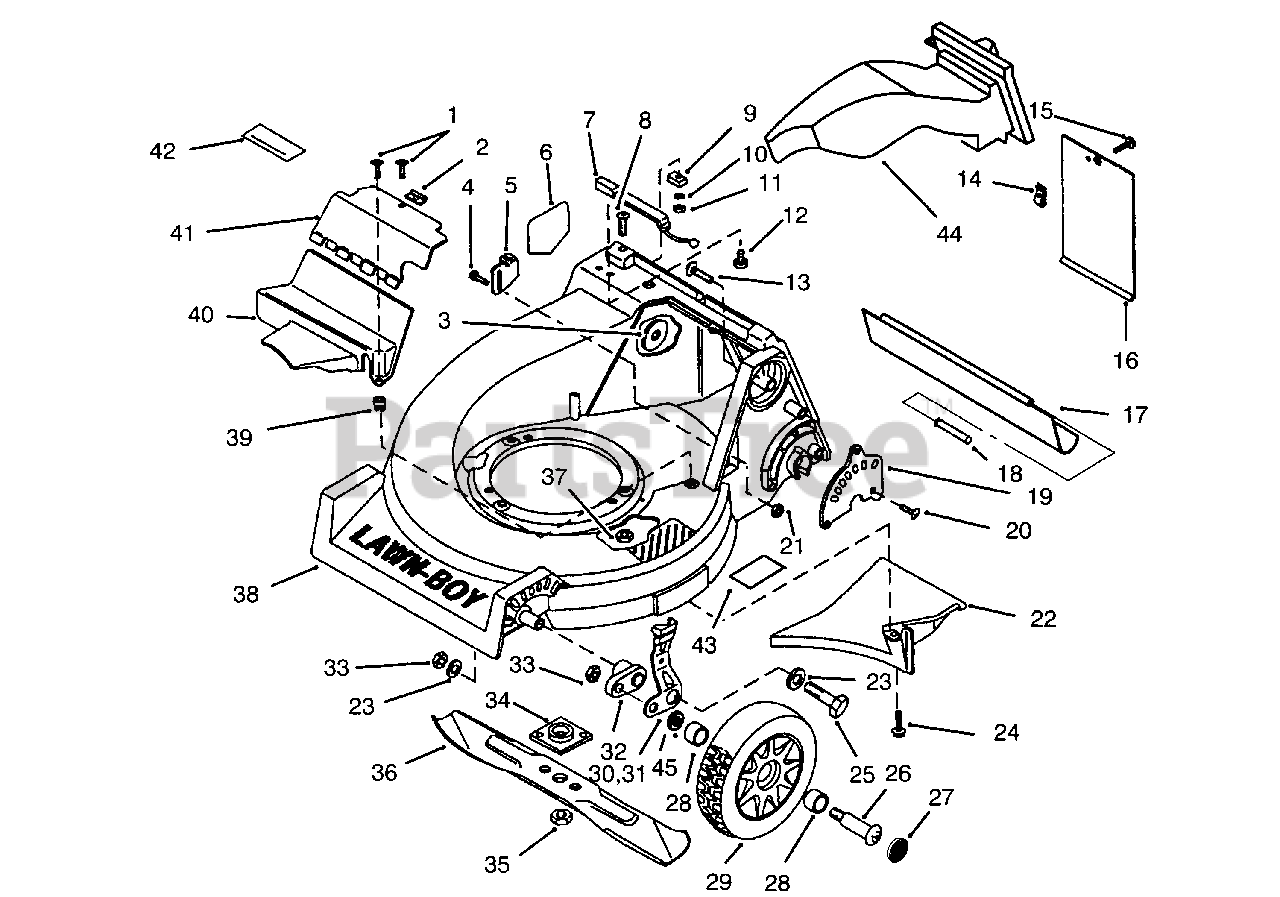

HOUSING-MODEL NO. 10590 Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 613341

Speednut

$

$

Not available

3

Lawn-Boy 613910

Washer-R.H. Handle
(Superseded to 5-3177)

$2.49

$

Usually ships in 3-6 days

0

$

$

Not available

5

Lawn-Boy 614522

Anchor-Cable

$

$

Not available

6

Lawn-Boy 39-5770

Decal-Blade Warning

$7.99

$

In Stock, Qty 8

0

7

Lawn-Boy 684366

Switch-Bag Lock

$

$

Not available

8

$

$

Not available

9

Lawn-Boy 684193

Assembly-Magnet

$

$

Not available

10

Lawn-Boy 613625

Lockwasher

$

$

Not available

$

$

Not available

12

$

$

Not available

13

Lawn-Boy 613321

Bolt-Handle Mounting

$

$

Not available

14

Lawn-Boy 613340

Speednut

$1.99

$

Usually ships in 3-6 days

0

15

$1.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 613346

Door-Access

$

$

Not available

17

Lawn-Boy 92-9553

Shield-Trailing

$

$

Not available

18

$1.49

$

In Stock, Qty 6

0

19

Lawn-Boy 614433

Plate-Height Adjust

$

$

Not available

20

Lawn-Boy 613381

Screw-Plate to Housing

$5.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 3296-42

Nut-Cable Anchor/Hsg.

$0.99

$

In Stock, Qty 20+

0

22

$39.99

$

Usually ships in 3-6 days

0

23

$1.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 46-6811

Screw-Baffle to Housing

$3.49

$

In Stock, only 3 left!

0

25

$

$

Not available

26

Lawn-Boy 92-1057

Shoulder Bolt-Wheel

$3.99

$

In Stock, Qty 15

0

27

$2.49

$

In Stock, Qty 20+

0

28

$2.99

$

In Stock, Qty 15

0

29

Lawn-Boy 684777

Assembly-Wheel & Tire (Inch. Ref. No. 28)

$52.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 684220

Assy.-Knob & Spring, L.H.

$

$

Not available

31

Lawn-Boy 684219

Assy.-Knob & Spring, R.H.

Note: Not Illustrated.

$

$

Not available

32

Lawn-Boy 613917

Arm-Front Height Adj.

$91.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 610358

Nut-Jam

$2.49

$

In Stock, only 2 left!

0

34

Lawn-Boy 677525

Assembly-Collar & Plate

$23.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

37

Lawn-Boy 3296-29

Locknut-Mtg Plate/Hsg.

$2.49

$

In Stock, Qty 18

0

38

Lawn-Boy 684688

Assembly-Housing (Incl. Ref. No. 3, 6,13, 22, & 24)

$1458.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 611380

Grommet

$3.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 613532

Cover-Lower Drive

$

$

Not available

41

Lawn-Boy 16-2219

Cover-Upper Drive (Incl. Ref. No. 42)

$

$

Not available

42

Lawn-Boy 92-2939

Decal-Warning

$

$

Not available

43

Lawn-Boy 71-1280

Decal-Danger

$31.99

$

In Stock, Qty 13

0

44

Lawn-Boy 89865

Plug-Mulch (Whole Goods)

$

$

Not available

45

$15.99

$

In Stock, only 2 left!

0
