10590 - Lawn-Boy M-Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE ASSEMBLY Parts Diagram

M-Series Walk-Behind Mower

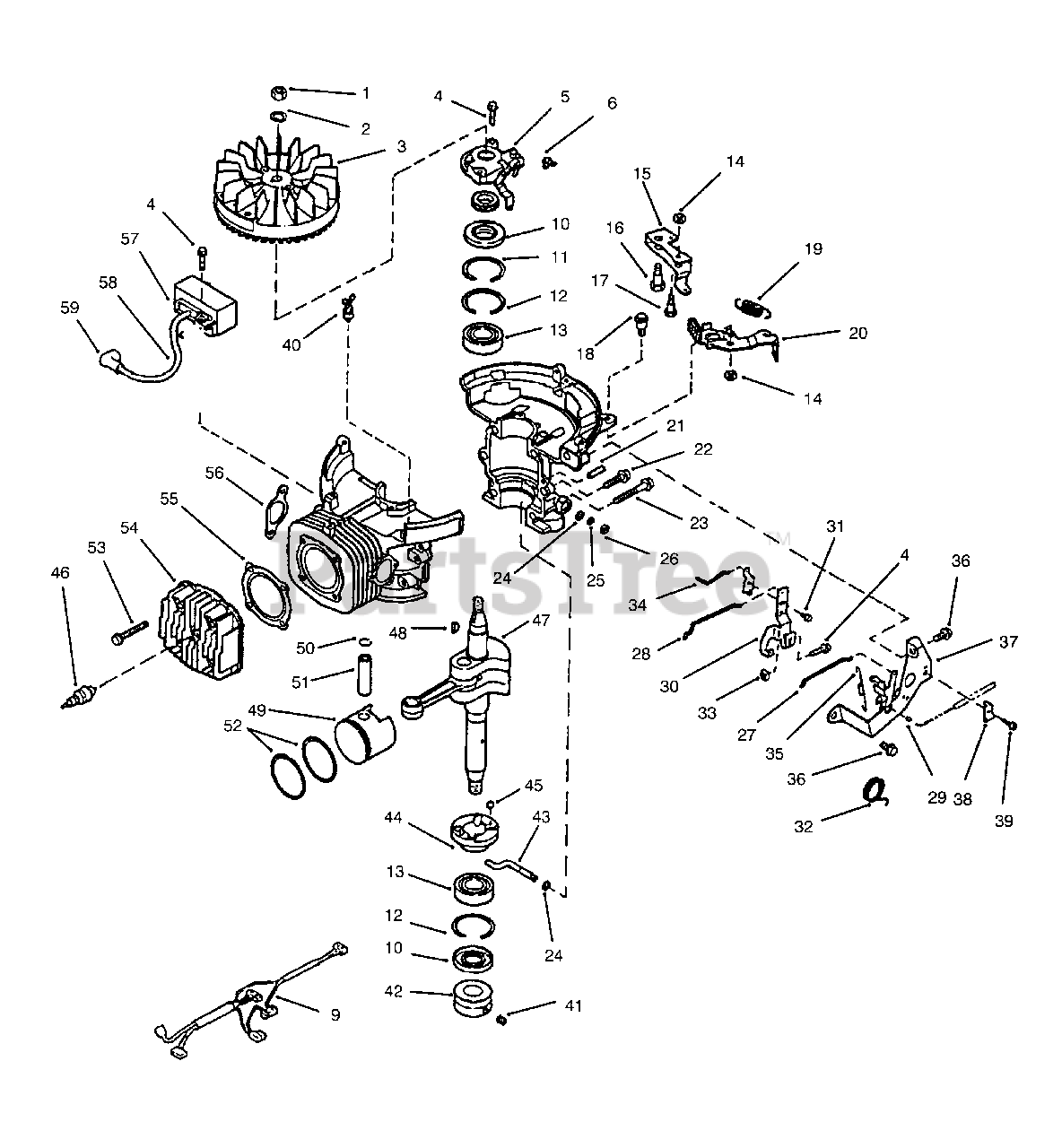

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 130743

Nut-Flywheel

$2.99

$

In Stock, Qty 6

0

2

Lawn-Boy 316959

Lockwasher
(Superseded to 325-36)

$8.49

$

In Stock, Qty 16

0

3

Lawn-Boy 684023

Flywheel (Model No.10590)

$

$

Not available

3

Lawn-Boy 684062

Flywheel (Model No.10591)

$433.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613208

Screw

$1.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 684275

Oil Pump Kit w/Oil Lines (Incl. Ref. No. 6)

$

$

Not available

6

Lawn-Boy 613516

Clamp-Oil Line

$

$

Not available

9

Lawn-Boy 684369

Wire Harness (10591)

$

$

Not available

9

Lawn-Boy 684673

Wire Harness (10590)

$

$

Not available

10

Lawn-Boy 613182

Oil Seal-Crankshaft

$19.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613183

Ring-Retaining

$

$

Not available

12

Lawn-Boy 613265

Ring-Retaining

$

$

Not available

13

Lawn-Boy 684022

Bearing-Crankshaft

$

$

Not available

14

Lawn-Boy 602315

Nut (Model No.10590)

$4.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 613390

Brake Actuator (Model No.10590)

$15.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 614032

Shoulder Bolt

$29.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 613360

Shoulder Bolt (Model No.10590)

$

$

Not available

18

Lawn-Boy 613756

Shoulder Bolt (Model No.10590)

$

$

Not available

19

Lawn-Boy 613386

Brake Spring (Model No.10590)

$9.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 684362

Brake & Switch (Model No.10590)
(Superseded to 684365)

$

$

Not available

21

Lawn-Boy 300402

Pin-Taper

$

$

Not available

22

Lawn-Boy 613110

Screw

$

$

Not available

23

Lawn-Boy 613111

Screw

$5.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 613429

Washer-Governor Shaft

$

$

Not available

25

Lawn-Boy 613328

Ring-Retain.-Gov. Shaft

$5.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 613230

Seal-Oil, Governor Shaft

$

$

Not available

27

Lawn-Boy 613274

Rod-Choke

$

$

Not available

28

Lawn-Boy 613277

Rod-Throttle

$

$

Not available

29

Lawn-Boy 92-6397

Retainer-Throttle Wire

$

$

Not available

30

Lawn-Boy 684437

Kit-Gov. & Oil Pump Lever (Incl. Ref. No. 31)

$

$

Not available

31

Lawn-Boy 613269

Screw

$1.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 613628

Spring-Torsion

$

$

Not available

33

Lawn-Boy 613336

Nut

$

$

Not available

34

Lawn-Boy 613276

Rod-Oil Pump Control

$

$

Not available

35

Lawn-Boy 614048

Spring-Governor

$

$

Currently unavailable

36

Lawn-Boy 613337

Screw

$

$

Not available

37

Lawn-Boy 684090

Assy.-Governor Bracket (Model No.10590) (Incl. Ref. No. 32)

$59.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 684364

Assy.-Bracket & Switch (Model No.10591) (Incl. Ref. No. 32)

$

$

Not available

38

Lawn-Boy 613388

Clamp-Throttle Cable
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 613387

Screw

$

$

Not available

40

Lawn-Boy 613683

Wire Tie (Model No.10591)

$3.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 613227

Screw-Set, Engine Pulley
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 613228

Pulley-Engine

$

$

Not available

43

Lawn-Boy 613747

Shaft-Governor

$

$

Not available

44

Lawn-Boy 684465

Ramp-Governor

$

$

Not available

45

Lawn-Boy 613229

Ball-Governor

$

$

Not available

46

Lawn-Boy 614008

Spark Plug
(Superseded to 614009)

$5.49

$

In Stock, only 2 left!

0

47

Lawn-Boy 683993

Crankshaft & Conn. Rod (Model No. 10590)

$

$

Not available

47

Lawn-Boy 684086

Crankshaft & Conn. Rod (Model No.10591)

$

$

Not available

48

Lawn-Boy 607199

Key

$4.99

$

In Stock, Qty 9

0

49

Lawn-Boy 684272

Assy.-Piston & Ring (Std.) (Incl. Ref. No. 50-52)

$

$

Not available

49

Lawn-Boy 684307

Assy.-Piston & Ring (0.020" Oversize) (Inc 50-52)

$

$

Not available

50

Lawn-Boy 613258

Ring-Retaining

$

$

Not available

51

Lawn-Boy 613148

Pin-Wrist

$

$

Not available

52

Lawn-Boy 684273

Ring Set (Standard)

$

$

Not available

52

Lawn-Boy 684309

Ring Set (0.020" Oversize)

$

$

Not available

53

Lawn-Boy 613233

Screw-Cyl. Head to Block

$3.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 613197

Head-Cylinder

$146.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 613382

Gasket-Head

$

$

Not available

56

Lawn-Boy 613266

Gasket-Exhaust

$

$

Not available

57

Lawn-Boy 684049

Module-C.D. Ignition (Incl. Ref. No. 58-59)
(Superseded to 99-2916)

$78.99

$

In Stock, only 3 left!

0

58

Lawn-Boy 684179

High Tension Lead & Cover (Incl. Ref. No. 59)

$27.99

$

In Stock, only 1 left!

0

59

Lawn-Boy 684698

Assy.-Cover & Terminal

$6.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684276

Short Block (Model No.10590) (Incl. Ref. #10-13, 21-26, 41-47 & 49-56)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 684277

Short Block (Model Nol.10591) (Incl. Ref. #10-13, 21-26, 41-47 & 49-56)

Note: Not Illustrated

$895.99

$

Usually ships in 3-6 days

0
