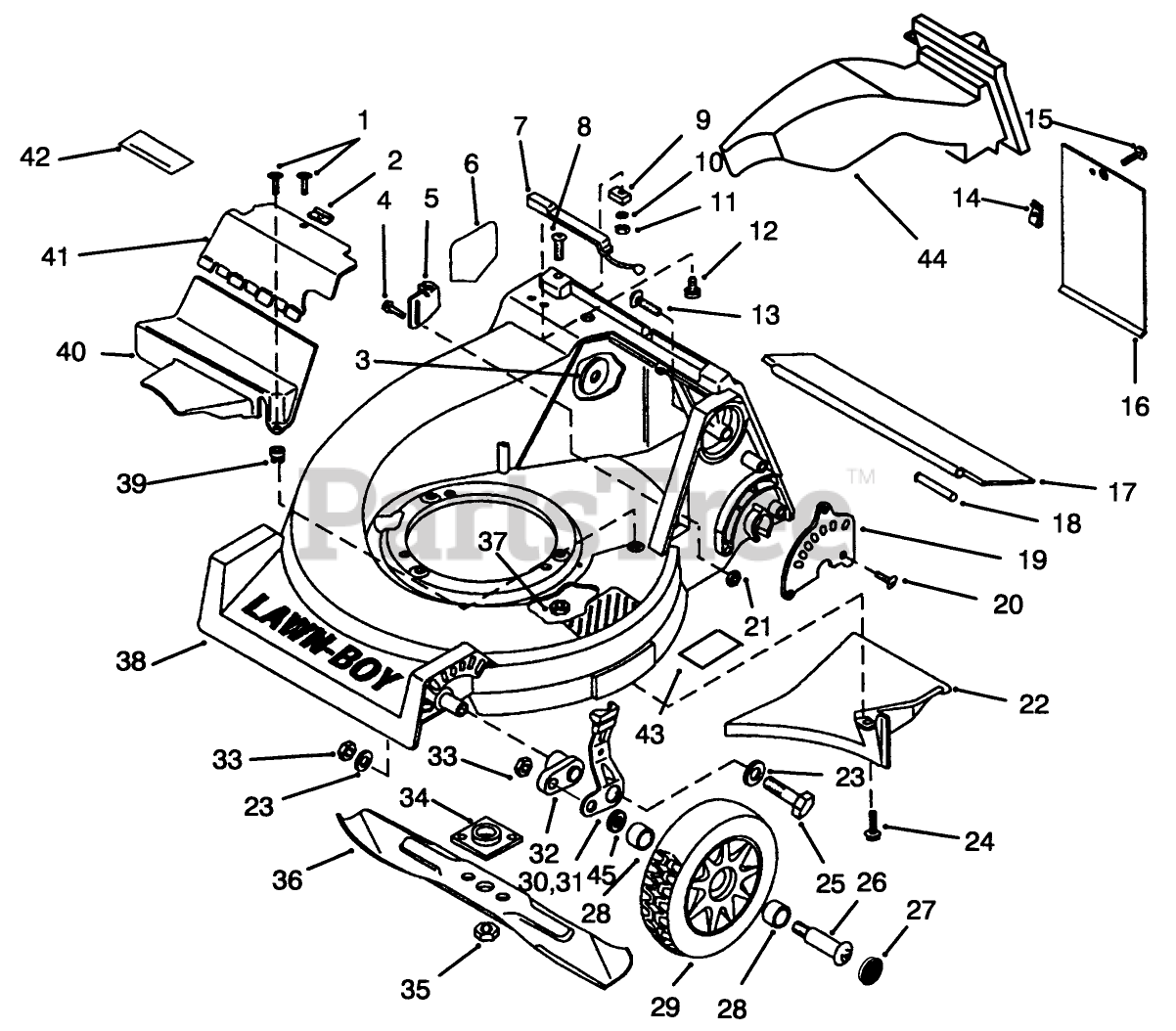

10590 - Lawn-Boy M-Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) Housing-Model No. 10590 Parts Diagram

M-Series Walk-Behind Mower

Housing-Model No. 10590 Parts Diagram

  • Title
1

Lawn-Boy 609807

DISCONTINUED

$

$

Not available

2

Lawn-Boy 613341

NUT-SPEED

$

$

Not available

3

Lawn-Boy 613910

See Supercession: 5-3177
(Superseded to 5-3177)

$2.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 700748

DISCONTINUED

$

$

Not available

5

Lawn-Boy 614522

ANCHOR-CABLE

$

$

Not available

6

Lawn-Boy 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Lawn-Boy 684366

DISCONTINUED

$

$

Not available

8

Lawn-Boy 303724

DISCONTINUED

$

$

Not available

9

Lawn-Boy 684193

DISCONTINUED

$

$

Not available

10

Lawn-Boy 613625

DISCONTINUED

$

$

Not available

11

Lawn-Boy 130450

DISCONTINUED

$

$

Not available

12

Lawn-Boy 613749

DISCONTINUED

$

$

Not available

13

Lawn-Boy 613321

DISCONTINUED

$

$

Not available

14

Lawn-Boy 613340

SPEED NUT LARSON

$2.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 613339

SCREW-CROSS RECESS

$

$

Not available

16

Lawn-Boy 613346

DOOR-ACCESS ELECT.

$

$

Not available

17

Lawn-Boy 92-9553

SHIELD - TRAILING

$

$

Not available

18

$1.99

$

In Stock, Qty 6

0

19

Lawn-Boy 614433

DISCONTINUED

$

$

Not available

20

Lawn-Boy 613381

SCREW-BHTF

$5.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

22

Lawn-Boy 613289

CHUTE BAFFLE NYL

$

$

Not available

23

Lawn-Boy 610361

WASHER-PLAIN

$2.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 613320

DISCONTINUED

$

$

Not available

26

Lawn-Boy 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

27

$2.99

$

In Stock, Qty 20+

0

28

$2.99

$

In Stock, Qty 8

0

29

Lawn-Boy 684777

WHEEL ASM

$59.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 684220

KNOB & SPRING CMS

$

$

Not available

31

Lawn-Boy 684219

KNOB & SPRING CMS

Note: Not illustrated

$

$

Not available

32

Lawn-Boy 613917

ARM HGT ADJ *BLACK

$106.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 610358

NUT-JAM, LOCKING

$2.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 612543

See Supercession: 612543-03
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

37

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 684688

HOUSING ASM.

$1574.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 611380

NUT-CLIP

$

$

Not available

40

Lawn-Boy 613532

DISCONTINUED

$

$

Not available

41

Lawn-Boy 16-2219

DISCONTINUED

$

$

Not available

42

Lawn-Boy 92-2939

DISCONTINUED

$

$

Not available

43

Lawn-Boy 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

44

Lawn-Boy 89865

DISCONTINUED

$

$

Not available

45

$14.99

$

In Stock, only 2 left!

0
