10590 - Lawn-Boy M-Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) HANDLE & REAR GRASS CATCHER-MODEL NO. 10590 Parts Diagram

M-Series Walk-Behind Mower

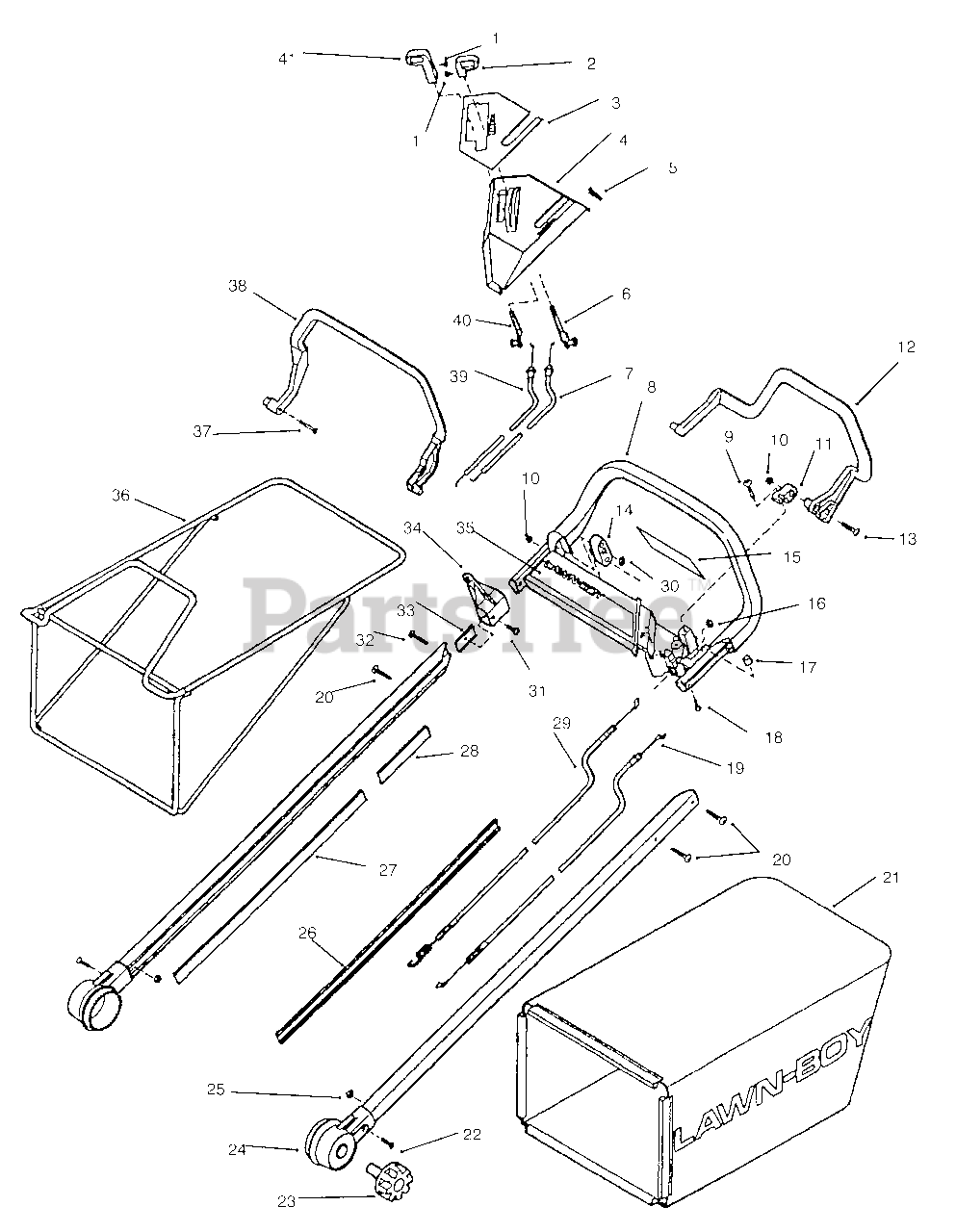

HANDLE & REAR GRASS CATCHER-MODEL NO. 10590 Parts Diagram

  • Title
1

Lawn-Boy 614013

Screw-Set

$

$

Not available

2

Lawn-Boy 684399

Assembly-Knob, Throttle (Incl. Ref. #1)

$

$

Not available

3

$

$

Not available

4

Lawn-Boy 684427

Assembly-Cover, Upper (Incl. Ref. #3)

$245.99

$

Usually ships in 3-6 days

0

$

$

Not available

6

Lawn-Boy 684446

Lever-Throttle

$

$

Not available

7

Lawn-Boy 684210

Assembly-Cable, Throttle

$

$

Not available

8

Lawn-Boy 684581

Assembly-Handle & Decal (Incl. Ref. #15,20 & 35)

$

$

Not available

9

$

$

Not available

$

$

Not available

11

Lawn-Boy 613409

Pivot-Bail

$19.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 613417

Bail-Self-propelled

$190.99

$

Usually ships in 3-6 days

0

13

$

$

Not available

14

Lawn-Boy 613412

Block-Bail

$

$

Not available

15

Lawn-Boy 92-2940

Decal-Warning
(Superseded to 92-4981)

$

$

Not available

16

Lawn-Boy 613550

Nut-Cable, Self-propelled

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

Lawn-Boy 684209

Assy.-Cable, Eng. Brake

$

$

Not available

20

Lawn-Boy 614023

Screw-Thread Forming

$

$

Not available

21

Bag-Rear, Grass (Accessory Part #684189)

$

$

Not available

22

$

$

Not available

23

Lawn-Boy 613358

Knob-Mounting, Handle

$

$

Not available

24

Lawn-Boy 684695

Assembly-Shaft, Handle (Incl. Ref. #23 & 25)

$234.99

$

Usually ships in 3-6 days

0

$

$

Not available

26

Lawn-Boy 614518

Insert-Handle, Cable Side

$

$

Not available

27

Lawn-Boy 613408

Insert-Handle

$

$

Not available

28

Lawn-Boy 613601

Insert-Handle

$

$

Not available

29

Lawn-Boy 684697

Assy.-Cable, Self-propelled

$153.99

$

Usually ships in 3-6 days

0

$4.99

$

In Stock, only 2 left!

0

31

$

$

Not available

32

$

$

Not available

33

Lawn-Boy 613393

Plate-Nut

$9.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 684151

Guide-Rope

$

$

Not available

35

Lawn-Boy 613980

Decal-Lawn-Boy

$

$

Not available

36

$237.45

$

In Stock, only 1 left!

0

37

$

$

Not available

38

Lawn-Boy 613416

Bail-Brake, Engine

$

$

Not available

39

Lawn-Boy 684212

Assy.-Cable, Gear Select

$

$

Not available

40

Lawn-Boy 684445

Lever-Gear, Select

$

$

Not available

41

Lawn-Boy 684400

Assy.-Knob, Gear Select (Incl. Ref. #1)

$

$

Not available
