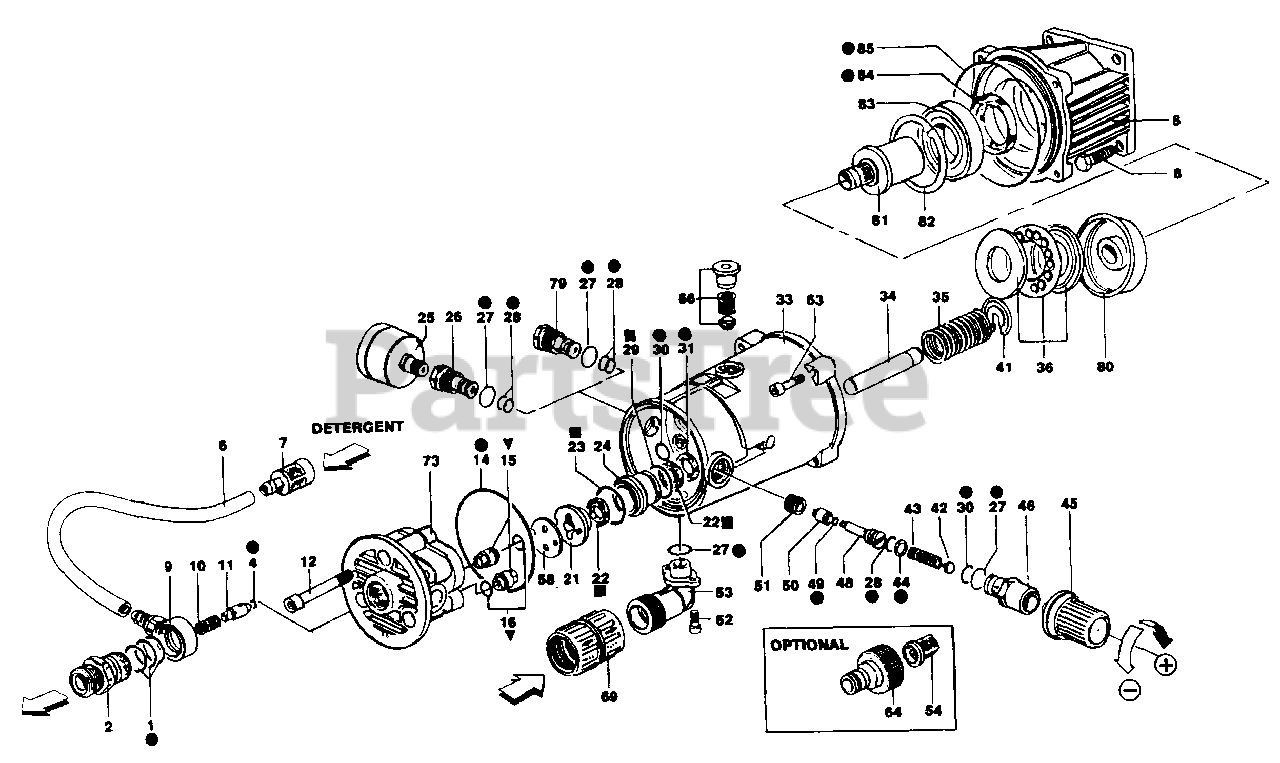

1057-0 - Generac Limited Edition 1,500 PSI Pressure Washer Pump Parts Diagram

Limited Edition 1,500 PSI Pressure Washer

Pump Parts Diagram

  • Title
1

Briggs & Stratton 87627

Complete Pump Assembly
(Superseded to 87627GS)

$

$

Not available

$

$

Currently unavailable

3

Briggs & Stratton 12587627P

Outlet fitting
(Superseded to 12587627PGS)

$93.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 12687627P

O-Ring
(Superseded to 12687627PGS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 89800

Detergent Pick-up Filter
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 89800

Detergent Pick-up Filter
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

8

UNKNOWN

$

$

Not available

9

Briggs & Stratton 94110

Detergent Pick-up Fitting
(Superseded to 94110GS)

$28.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 12787627P

Outlet Valve Spring
(Superseded to 12787627PGS)

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 12887627P

Outlet Valve
(Superseded to 12887627PGS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 10087627P

Socket Head Capscrew
(Superseded to 10087627PGS)

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 10187627P

O-Ring
(Superseded to 10187627PGS)

$6.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 10287627P

Inlet/Outlet Valve
(Superseded to 10287627PGS)

$16.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 10387627P

O-Ring
(Superseded to 10387627PGS)

$4.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 10487627P

Plunger Guide Cap
(Superseded to 10487627PGS)

$14.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 10587627P

Seal
(Superseded to 10587627PGS)

$21.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 10687627P

Seal
(Superseded to 10687627PGS)

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 10787627P

Plunger Guide
(Superseded to 10787627PGS)

$58.99

$

Usually ships in 2-12 days

0

25

UNKNOWN

$

$

Not available

26

UNKNOWN

$

$

Not available

27

Briggs & Stratton 10887627P

O-Ring
(Superseded to 134B2327GS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 10987627P

O-Ring
(Superseded to 10987627PGS)

$4.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

30

Briggs & Stratton 11187627P

O-Ring
(Superseded to 194434GS)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 11287627P

Seal
(Superseded to 11287627PGS)

$25.99

$

Usually ships in 2-12 days

0

33

Pump Housing

$

$

Not available

34

Plunger

$

$

Not available

35

Plunger Spring

$

$

Not available

36

Wobble Plate Bearing

$

$

Not available

41

Plunger Spring Keeper

$

$

Not available

42

Briggs & Stratton 11387627P

Spring Contactor
(Superseded to 11387627PGS)

$4.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 11487627P

Spring
(Superseded to 11487627PGS)

$11.99

$

In Stock, only 1 left!

0

44

Briggs & Stratton 11587627P

Valve Spacer
(Superseded to 11587627PGS)

$9.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 11687627P

Adjustment Knob
(Superseded to 11687627PGS)

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 11787627P

Valve Body
(Superseded to 11787627PGS)

$15.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 11887627P

Valve Stem
(Superseded to 11887627PGS)

$50.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 11987627P

O-Ring
(Superseded to 11987627PGS)

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 12087627P

Regulator Valve
(Superseded to 12087627PGS)

$32.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 12187627P

Regulator Valve Seat
(Superseded to 12187627PGS)

$26.99

$

Usually ships in 2-12 days

0

52

Screw

$

$

Not available

53

Briggs & Stratton 90065

Inlet (suction) Fitting
(Superseded to 90065GS)

$32.99

$

Usually ships in 2-12 days

0

54

UNKNOWN

$

$

Not available

58

Briggs & Stratton 12287627P

Plunger Plate
(Superseded to 12287627PGS)

$17.99

$

Usually ships in 2-12 days

0

63

Socket Head Capscrew

$

$

Not available

64

UNKNOWN

$

$

Not available

66

Oil Filter

$

$

Not available

69

Outlet Hose Coupling

$

$

Not available

$

$

Currently unavailable

79

Fitting

$

$

Not available

80

Wobble Plate

$

$

Not available

81

Drive Shaft

$

$

Not available

82

Snap Ring

$

$

Not available

83

Shaft Bearing

$

$

Not available

84

Bearing Seal

$

$

Not available

85

O-Ring

$

$

Not available

86

Adapter Housing

$

$

Not available

87

Socket Head Capscrew

$

$

Not available
