10552 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) STARTER AND ALTENATOR INSTALLATION ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

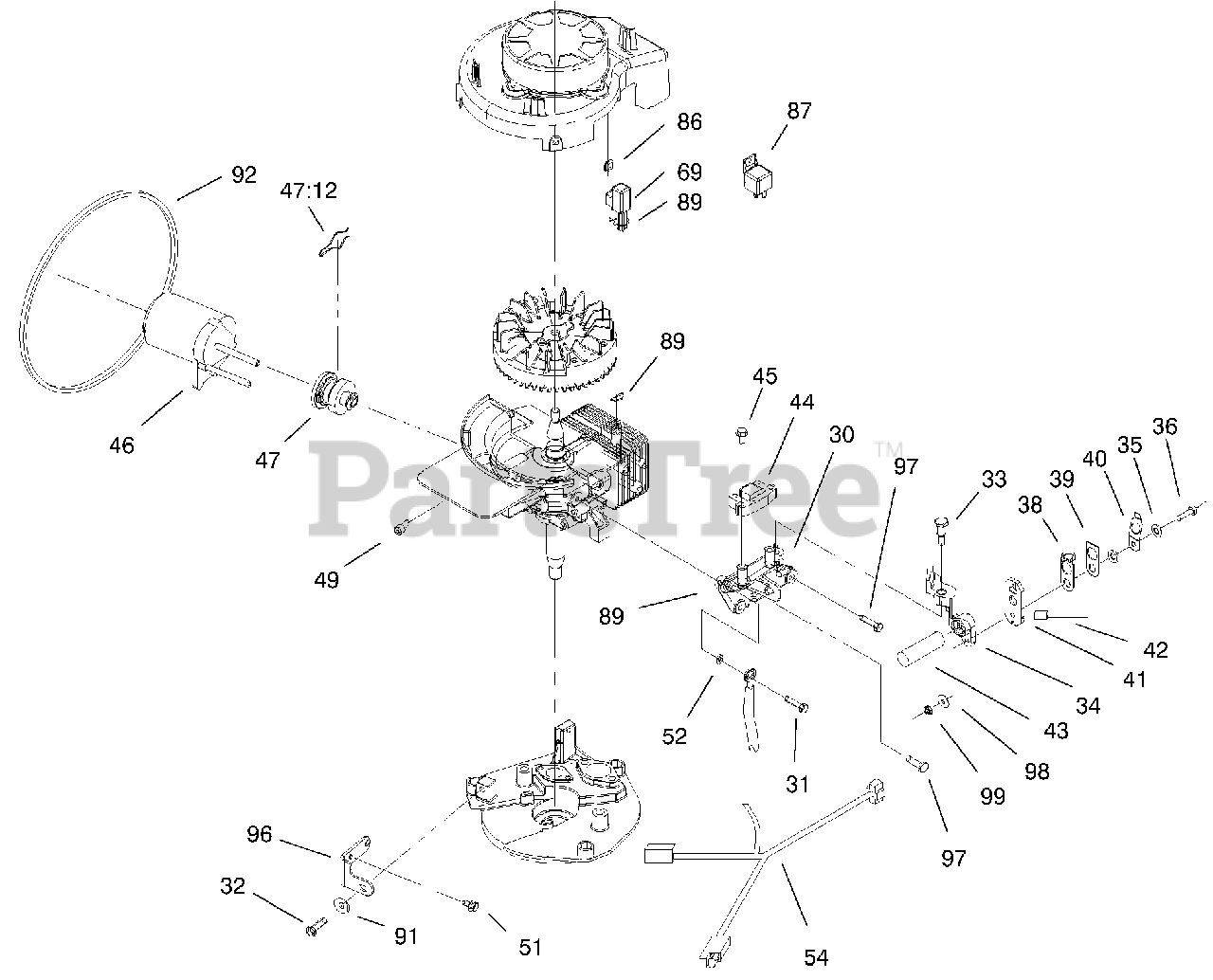

STARTER AND ALTENATOR INSTALLATION ASSEMBLY Parts Diagram

  • Title

30

Lawn-Boy 95-1884

BRKT ALT/BRAKE E

$53.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

32

Lawn-Boy 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

33

Lawn-Boy 613529

BOLT

$13.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 98-7008

BRAKE ASM E

$72.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 306407

WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 612841

PLATE-CONTACT

$14.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 612842

SHIELD

$1.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 93-1239

SPRING-CONTACT

$2.49

$

In Stock, only 1 left!

0

41

Lawn-Boy 93-4301

CASE ASM

$15.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 95-1886

WIRE-LEAD

$4.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611211

SPRING-BRAKE

$13.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 684115

ALTERNATOR ASM

$

$

Not available

45

Lawn-Boy 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 98-1370

STARTER ASM

$791.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 98-1371

PINION ASM

$

$

Not available

47:12

Lawn-Boy 613297

SPRING - DRAG

$7.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

51

Lawn-Boy 700094

SCREW-HH
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

52

Lawn-Boy 306992

WASHER-LOCK

$

$

Not available

54

Lawn-Boy 100-2926

HARNESS-WIRE E

$

$

Not available

68

Lawn-Boy 609790

SEALER-LOCTITE 50CC

Note: Not illustrated

$61.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 100-2927

RECTIFIER

$46.99

$

Usually ships in 3-6 days

0

86

Lawn-Boy 98-7003

CLIP-MOUNTING

$

$

Not available

87

Lawn-Boy 116397

RELAY

$33.99

$

In Stock, only 1 left!

0

89

Lawn-Boy 317893

STRAP-TIE

$

$

Not available

91

Lawn-Boy 99-2900

WASHER - FLAT E

$1.99

$

Usually ships in 3-6 days

0

92

Lawn-Boy 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

96

Lawn-Boy 98-1390

BRACKET

$5.49

$

In Stock, only 1 left!

0

97

Lawn-Boy 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

98

Lawn-Boy 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 602315

LOCKNUT E

$4.49

$

In Stock, only 2 left!

0
