10552 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

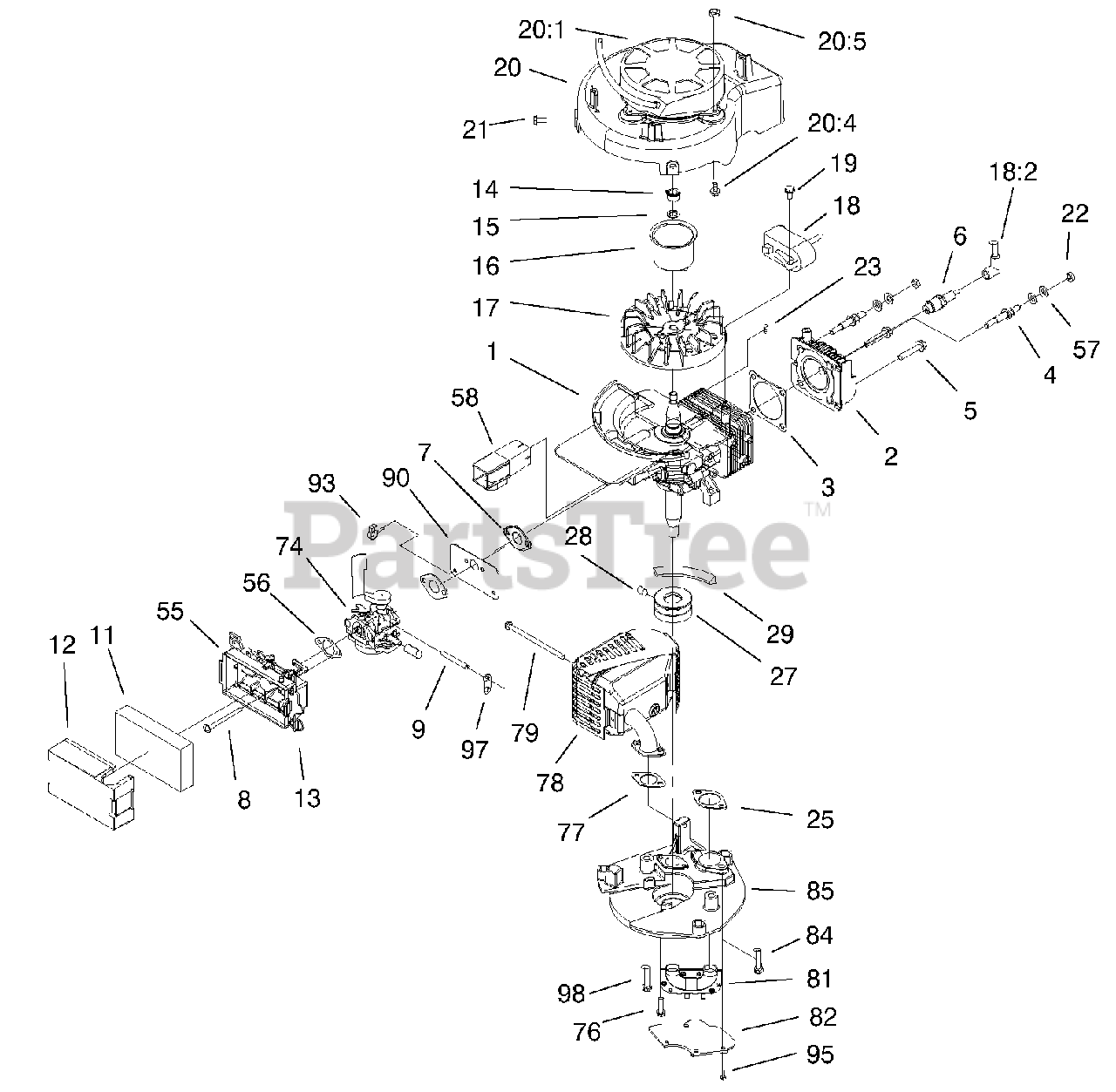

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 95-7637

SHORT BLOCK ASM

$

$

Not available

2

Lawn-Boy 94-5776

HEAD-CYLINDER

$69.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 94-5778

GASKET-HEAD

$11.99

$

In Stock, only 4 left!

0

4

Lawn-Boy 94-5779

STUD

$10.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 94-5780

BOLT-HEAD

$8.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 50-1170

SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

GASKET-INTAKE

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 612507

SCREW

$5.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 95-1861

HOSE-PRIMER

$11.99

$

In Stock, Qty 6

0

11

Lawn-Boy 95-5574

FILTER-AIR
(Superseded to 107-4622)

$9.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 95-5577

COVER-FILTER, AIR

$15.99

$

In Stock, only 4 left!

0

13

Lawn-Boy 610383

RETAINER-COVER, FILTER

$9.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 130743

NUT

$3.49

$

In Stock, Qty 6

0

15

Lawn-Boy 316959

WASHER-LOCK
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 95-1786

CUP-STARTER

$19.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-1882

FLYWHEEL (MACH) ELE E

$

$

Not available

18

Lawn-Boy 99-2911

MODULE-IGNITION CD

$95.99

$

In Stock, Qty 5

0

18:2

Lawn-Boy 99-6719

LEAD-TENSION, HIGH

$64.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 613208

SCREW

$2.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 95-1880

SHROUD-RECOIL

$

$

Not available

20:1

Lawn-Boy 99-6713

RECOIL ASM

$

$

Not available

20:4

Lawn-Boy 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

20:5

Lawn-Boy 3296-2

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

20:1:1

Lawn-Boy 613773

ROPE-RECOIL

Note: Not illustrated

$34.99

$

In Stock, only 1 left!

0

20:1:2

Lawn-Boy 100-9540

RETAINER AND CLIP

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 700094

SCREW-HH
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

22

Lawn-Boy 146501

NUT

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 607199

KEY

$5.49

$

In Stock, Qty 9

0

25

Lawn-Boy 95-1778

GASKET-EXHAUST

$5.49

$

In Stock, Qty 18

0

27

Lawn-Boy 95-1878

PULLEY

$63.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 62-3900

V-BELT E

$25.99

$

In Stock, only 4 left!

0

55

Lawn-Boy 95-5588

AIR BASE ASM

$29.99

$

In Stock, only 1 left!

0

56

Lawn-Boy 95-7613

GASKET-FILTER

$4.49

$

In Stock, Qty 20+

0

57

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

58

Lawn-Boy 95-5578

TUNNEL-INLET

$5.49

$

In Stock, only 1 left!

0

74

Lawn-Boy 98-7042

CARBURETOR ASM
(Superseded to 107-4607)

$

$

Not available

76

Lawn-Boy 613208

SCREW

$2.49

$

In Stock, only 2 left!

0

77

Lawn-Boy 98-1392

GASKET

$6.49

$

In Stock, Qty 10

0

78

Lawn-Boy 100-9514

MUFFLER & GUARD AY E

$279.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 611228

BOLT-CONSOLE

$16.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 98-1557

PIPE-TRANSFER

$

$

Not available

82

Lawn-Boy 98-1591

COVER-MUFFLER E

$12.99

$

In Stock, only 3 left!

0

84

Lawn-Boy 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

85

Lawn-Boy 98-1563

PLATE-MUFFLER

$

$

Not available

90

Lawn-Boy 98-1388

SHIELD-CARB E

$9.49

$

Usually ships in 3-6 days

0

93

Lawn-Boy 98-7012

RETAINER-WIRE

$3.49

$

Usually ships in 3-6 days

0

95

Lawn-Boy 700822

SCREW-HH

$1.99

$

In Stock, Qty 10

0

97

Lawn-Boy 95-7615

HOSE-RETAINER

$3.49

$

In Stock, only 4 left!

0

98

Lawn-Boy 613233

SCREW

$4.49

$

Usually ships in 3-6 days

0
