10552 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) BATTERY AND SWITCH ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

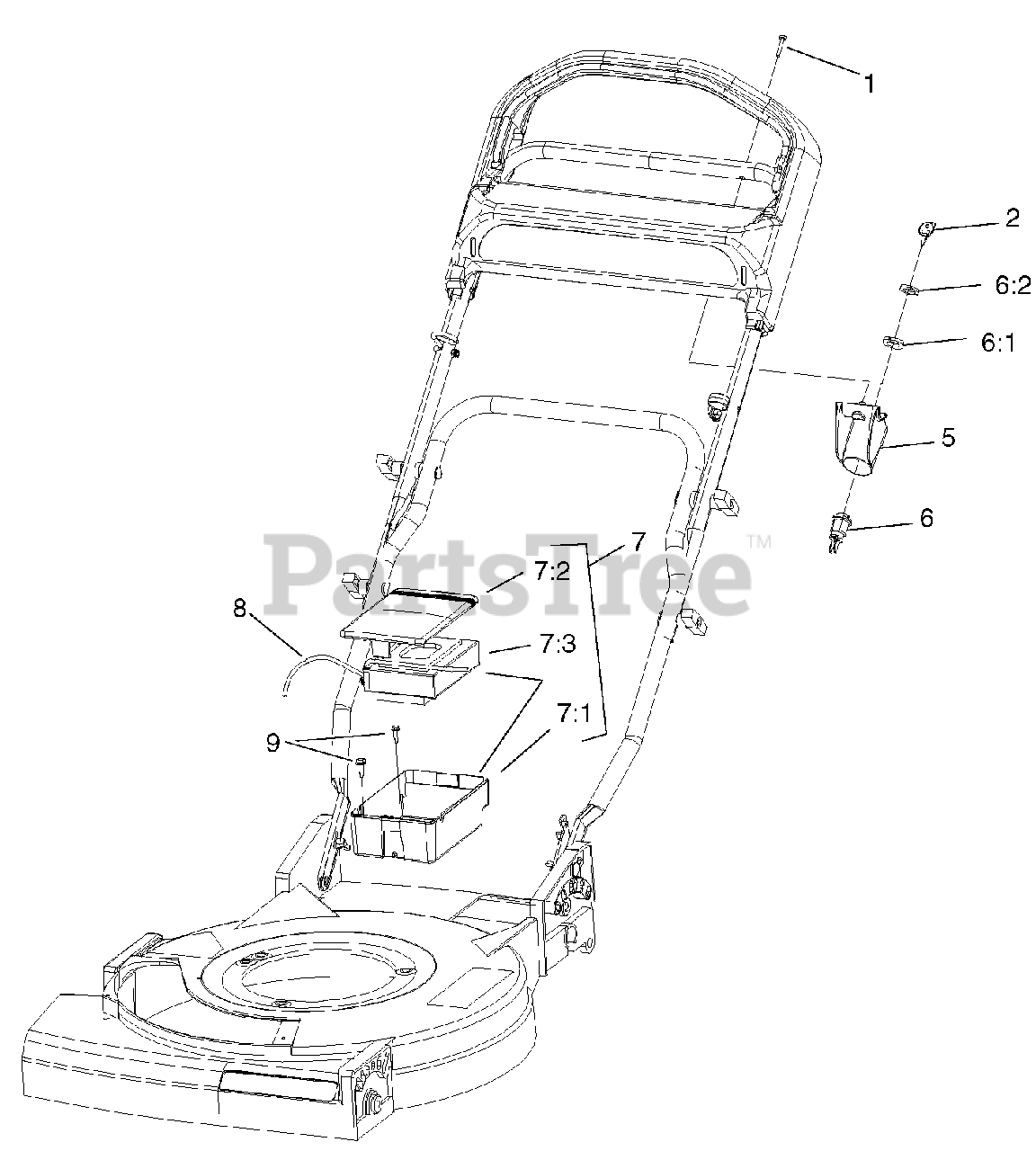

BATTERY AND SWITCH ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32144-97

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

2

Lawn-Boy 98-4486

KEY - IGNITION

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 99-6006

SWITCH-HOLDER

$71.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 46-5780

SWITCH-STARTER

$29.99

$

In Stock, only 1 left!

0

6:1

Lawn-Boy 3254-5

WASHER-LOCK, INTERNAL

$1.49

$

In Stock, only 2 left!

0

6:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

7

Lawn-Boy 104-7682

BATTERY ASM-PANASONIC
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

7:1

Lawn-Boy 104-7900

BOX-BATTERY
(Superseded to 105-6843)

$36.99

$

Usually ships in 3-6 days

0

7:2

Lawn-Boy 104-7901

COVER-BATTERY
(Superseded to 105-6844)

$40.99

$

Usually ships in 3-6 days

0

7:3

Lawn-Boy 104-7903

BATTERY-PANASONIC, 12V
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 100-1039

HARNESS-WIRE

$

$

Not available

9

Lawn-Boy 104-7649

SCREW-TEK
(Superseded to 105-0618)

$0.99

$

In Stock, Qty 12

0

99

Lawn-Boy 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

Note: Not illustrated

$41.99

$

In Stock, only 4 left!

0

99

Lawn-Boy 104-7953

DECAL-HARNESS

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 99-6124

FUSE-40 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 8

0
