10550 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING AND WHEEL ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

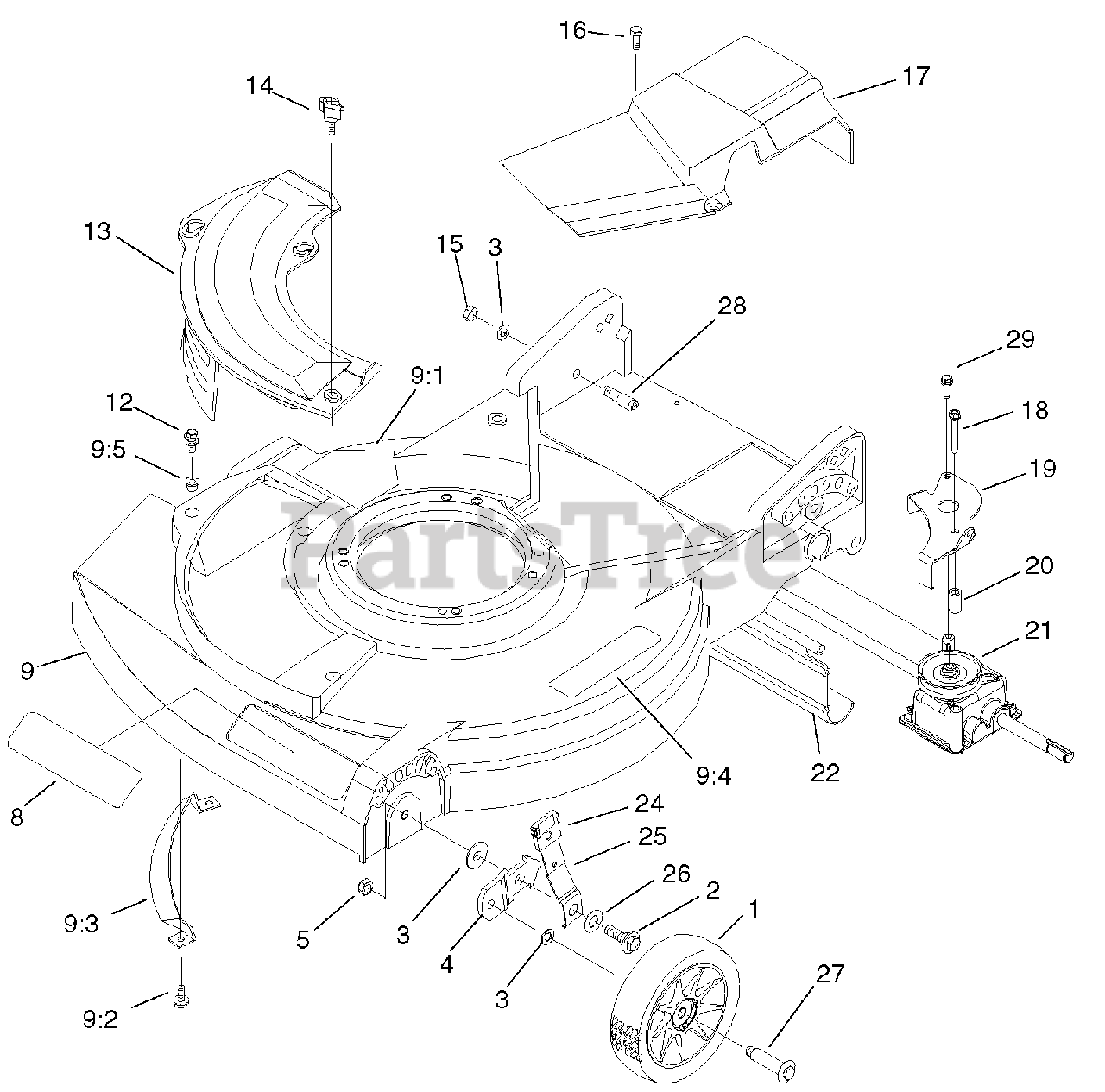

HOUSING AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 684776

WHEEL AND TIRE ASM

$37.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 92-4856

BOLT-SHOULDER

$76.99

$

Usually ships in 3-6 days

0

3

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

5

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 104-7956

DECAL-DECK

$

$

Not available

9

$

$

Not available

9:1

Lawn-Boy 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

9:2

Lawn-Boy 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9:3

Lawn-Boy 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

9:4

Lawn-Boy 93-7250

DECAL-WARNING

$15.99

$

In Stock, only 2 left!

0

9:5

Lawn-Boy 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

13

Lawn-Boy 92-8630

PLATE-MULCH

$

$

Not available

$5.49

$

In Stock, Qty 13

0

$2.99

$

In Stock, Qty 20+

0

16

$9.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 104-7662

COVER-DRIVE

$90.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

19

Lawn-Boy 104-7930-03

BRACKET-TRANSMISSION

$

$

Not available

20

Lawn-Boy 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 104-7676

GEAR CASE ASM

$

$

Not available

22

Lawn-Boy 92-7736

SHIELD-TRAILING

$40.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 92-1006

FRONT SPRING ARM ASM

$12.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 92-1099

BOLT-SHOULDER

$8.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 92-9673

BOLT-SHOULDER

$7.49

$

In Stock, only 2 left!

0

29

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

99

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

Note: Not illustrated

$36.99

$

In Stock, only 3 left!

0
