10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

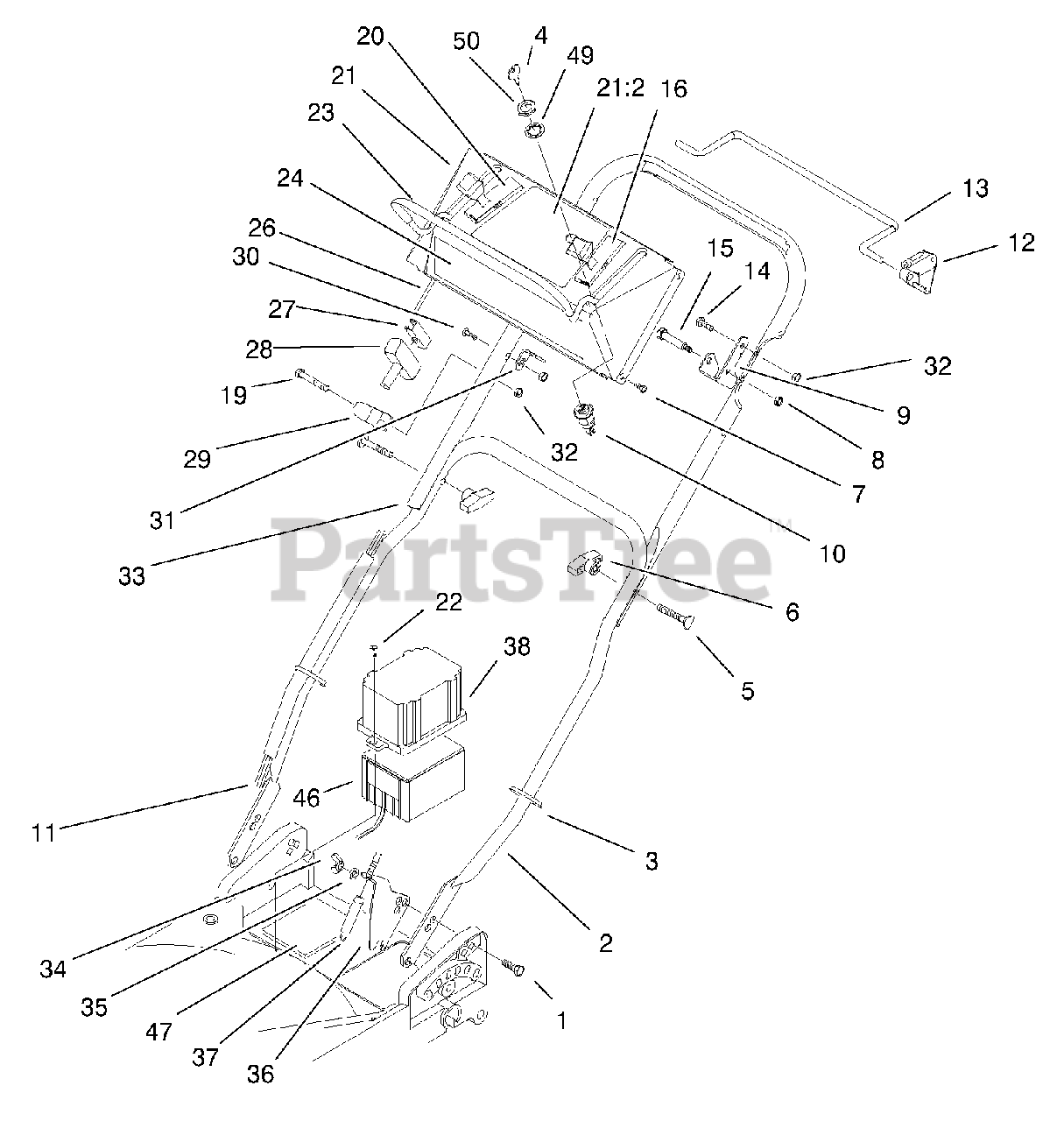

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3230-29

Screw-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 100-2890-05

Handle-Lower

$

$

Not available

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 98-4486

Key-Ignition

$2.99

$

Usually ships in 3-6 days

0

5

$2.49

$

In Stock, Qty 13

0

6

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 15

0

$1.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 3296-56

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1094

Bracket-Stop, Bail

$36.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 46-5780

Switch-Starter

$29.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 100-5042

Harness-Wire

$

$

Not available

12

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-1001-03

Bail-Control

$50.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

15

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 100-5985

Control ASM-Throttle

$

$

Not available

19

Lawn-Boy 321-51

Screw-HH

$1.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 100-5984

Control ASM-Ground Speed

$93.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 99-5200

Control Panel

$

$

Not available

21:2

Lawn-Boy 98-4468

Decal-Control Panel

$

$

Not available

22

$8.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 92-1093

Bail-Engine Control

$

$

Not available

24

Lawn-Boy 100-6394

Decal-Panel

$

$

Not available

26

Lawn-Boy 100-5997

Control ASM, Zone

$

$

Not available

27

Lawn-Boy 612824

Starter-Clip

$3.99

$

In Stock, Qty 10

0

28

Lawn-Boy 612825

Handle-Start
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 93-7383

Rope-Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

30

Lawn-Boy 92-2268

Screw-Handle

$2.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 92-2928

Bracket-Anchor, Cable

$13.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, Qty 6

0

33

Lawn-Boy 100-2892-05

Handle-Upper

$148.99

$

Usually ships in 3-6 days

0

34

$5.99

$

In Stock, Qty 5

0

35

Lawn-Boy 3253-33

Washer-Lock/Sp

$1.99

$

In Stock, Qty 12

0

36

Lawn-Boy 92-7899-03

Bracket-Traction Cable

$9.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 100-5981

Cable-Traction

$51.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 98-4498

Case-Battery
(Superseded to 95-3017)

$30.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 55-7520

Battery Assembly

$176.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 612510

Pad-Battery

$7.49

$

In Stock, only 1 left!

0

49

Lawn-Boy 3254-5

Washer-Lock/Internal

$1.49

$

In Stock, only 3 left!

0

50

$3.99

$

In Stock, Qty 10

0

99

Lawn-Boy 94-9164

Charger-battery
(Superseded to 131-0848)

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0
