10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY NO. 98-1398 Parts Diagram

GoldPro Series Walk-Behind Mower

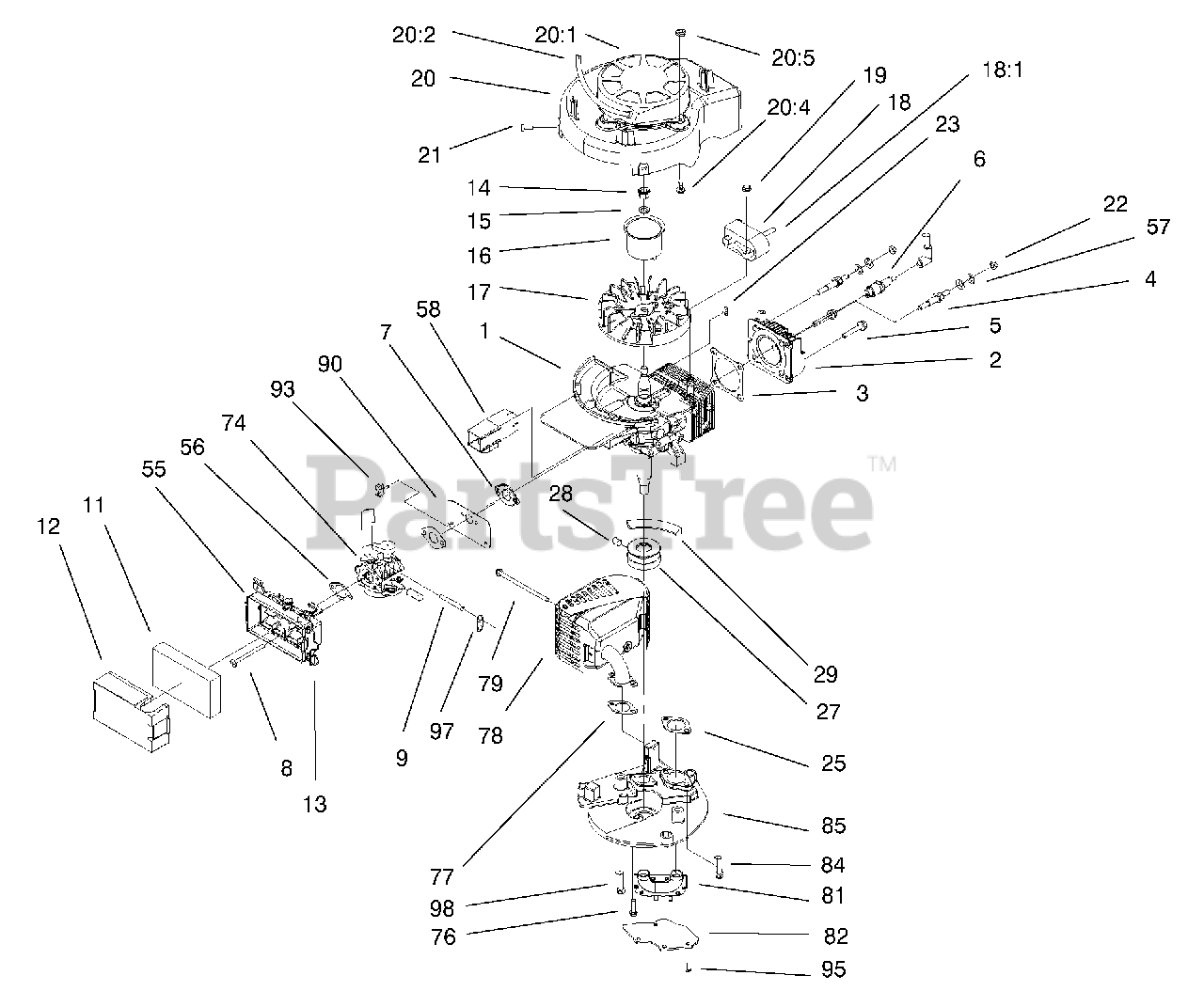

ENGINE ASSEMBLY NO. 98-1398 Parts Diagram

  • Title

1

Lawn-Boy 95-7637

ASM-Short Block

$

$

Not available

2

Lawn-Boy 94-5776

Head-Cylinder

$60.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 94-5778

Gasket-Head

$10.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 94-5779

Stud

$9.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 94-5780

Bolt-Head

$8.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 50-1170

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

Gasket-Intake

$2.99

$

In Stock, Qty 18

0

8

Lawn-Boy 612507

Screw

$4.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 95-1861

Hose-Primer

$11.99

$

In Stock, Qty 6

0

11

Lawn-Boy 95-5574

Filter-Air
(Superseded to 107-4622)

$7.99

$

In Stock, Qty 6

0

12

Lawn-Boy 95-5577

Cover-Air Filter

$15.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 610383

Retainer-Filter Cover

$7.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 130743

Nut

$2.99

$

In Stock, Qty 6

0

15

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$8.49

$

In Stock, Qty 16

0

16

Lawn-Boy 95-1786

Cup-Starter

$16.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-1882

Flywheel

$

$

Not available

18

Lawn-Boy 99-2911

Module-Ignition

$82.99

$

In Stock, only 3 left!

0

18:1

Lawn-Boy 99-6721

Clip-High Tension Lead
(Superseded to 99-6719)

$55.99

$

Usually ships in 3-6 days

0

18:2

Lawn-Boy 99-6719

Lead-High Tension

Note: Not illustrated

$55.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 613208

Screw

$1.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 95-1880

Shroud-Recoil

$

$

Not available

20:1

Lawn-Boy 99-6713

Recoil And Decal ASM

$

$

Not available

20:2

Lawn-Boy 613773

Rope

$30.99

$

Usually ships in 3-6 days

0

20:4

Lawn-Boy 3290-321

Screw-HWH

$4.49

$

Usually ships in 3-6 days

0

20:5

Lawn-Boy 3296-2

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 700094

Screw-HH
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

22

Lawn-Boy 146501

Nut

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 607199

Key

$4.99

$

In Stock, Qty 9

0

25

Lawn-Boy 95-1778

Gasket-Exhaust

$4.99

$

In Stock, Qty 9

0

27

Lawn-Boy 95-1878

Pulley

$55.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 104-0214

Screw-Set,Cone Point
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 92-1043

V-Belt

$18.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 95-1886

Lead-Wire

$4.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 95-5588

Air Base ASM

$25.99

$

In Stock, only 1 left!

0

56

Lawn-Boy 95-7613

Gasket-Filter

$3.99

$

In Stock, Qty 20+

0

57

Lawn-Boy 3290-456

Washer-Belleville

$2.99

$

In Stock, Qty 19

0

58

Lawn-Boy 95-5578

Tunnel-Inlet

$4.99

$

In Stock, only 1 left!

0

68

Lawn-Boy 609790

Sealer-Loctite 50cc

Note: Not illustrated

$61.99

$

Usually ships in 3-6 days

0

74

Lawn-Boy 98-7042

Carburetor ASM With Gaskets
(Superseded to 107-4607)

$

$

Not available

76

Lawn-Boy 613208

Screw

$1.99

$

In Stock, only 2 left!

0

77

Lawn-Boy 98-1392

Gasket

$5.49

$

In Stock, only 1 left!

0

78

Lawn-Boy 100-9514

Muffler And Guard ASM

$242.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 611228

Bolt-Console

$16.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 98-1557

Pipe-Transfer

$

$

Not available

82

Lawn-Boy 98-1591

Cover-Muffler

$10.99

$

In Stock, only 3 left!

0

84

Lawn-Boy 322-17

Screw-HH

$3.99

$

In Stock, only 2 left!

0

85

Lawn-Boy 98-1563

Muffler Plate

$

$

Not available

90

Lawn-Boy 98-1388

Shield-Carburetor

$7.99

$

Usually ships in 3-6 days

0

93

Lawn-Boy 98-7012

Retainer-Wire

$2.99

$

Usually ships in 3-6 days

0

95

Lawn-Boy 700822

Screw-HH

$1.99

$

In Stock, Qty 10

0

97

Lawn-Boy 95-7615

Hose-Retainer

$2.99

$

In Stock, only 4 left!

0

98

Lawn-Boy 613233

Screw

$3.99

$

Usually ships in 3-6 days

0
