10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE AND BLADE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

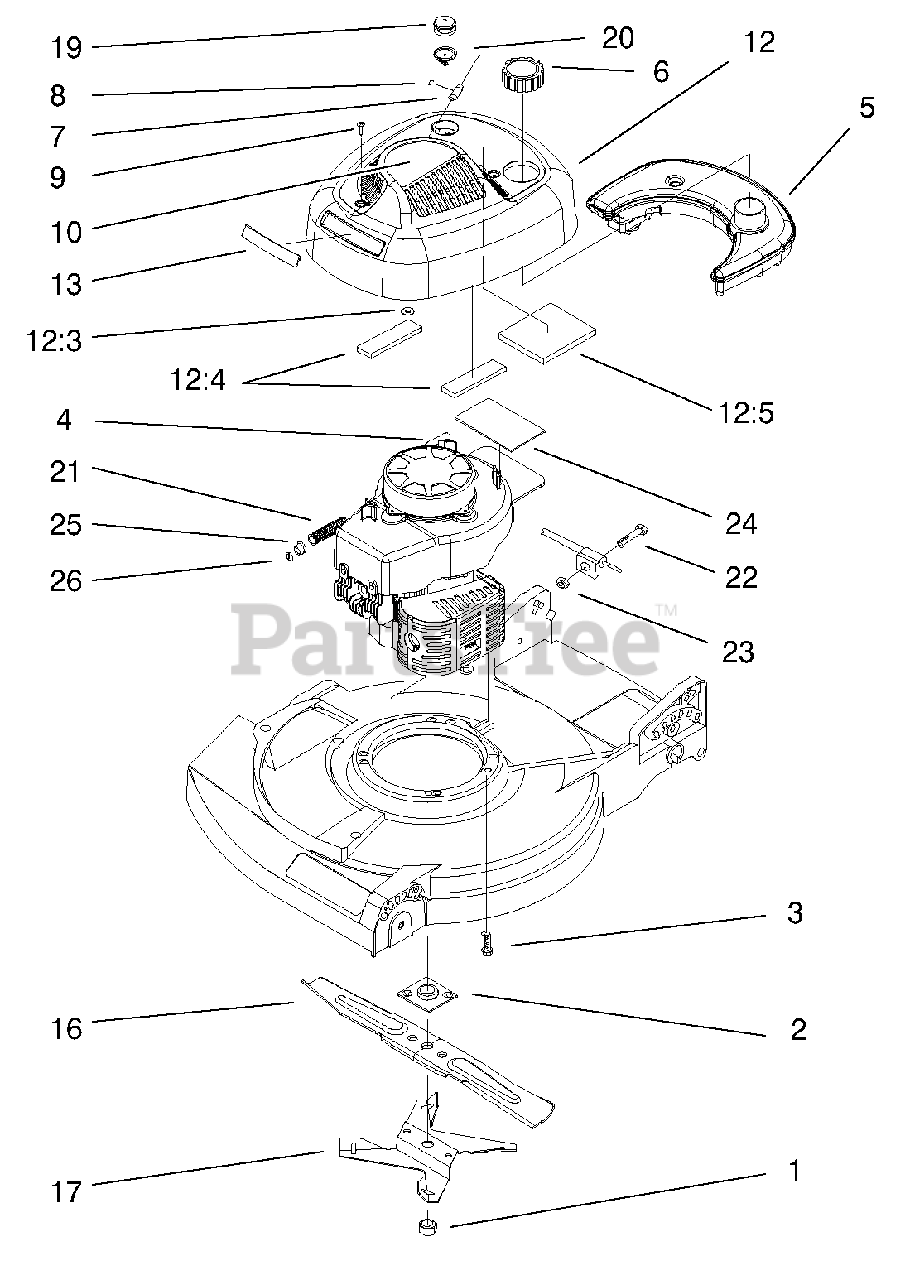

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

2

Lawn-Boy 677525

Plate & Collar ASM

$51.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 98-4480

Screw-Sems

$3.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 612782

Fuel Line

$7.49

$

In Stock, Qty 9

0

5

Lawn-Boy 95-1897

Tank

$67.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 98-8344

Cap ASM-Fuel & Oil

$24.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 47-2480

Stop-Rope

$

$

Not available

8

Lawn-Boy 3290-443

Staple

Note: Obtain locally.

$

$

Not available

9

Lawn-Boy 95-7621

Screw-Pan Sems

$1.99

$

In Stock, Qty 19

0

10

Lawn-Boy 95-7420

Decal-Recoil

$

$

Not available

12

Lawn-Boy 104-0221

Shroud-Electric Start

$

$

Not available

12:3

Lawn-Boy 613329

Push Nut

$2.49

$

Usually ships in 3-6 days

0

12:4

Lawn-Boy 99-1522

Strip-Foam

$2.99

$

In Stock, Qty 9

0

12:5

Lawn-Boy 99-1521

Strip-Foam

$10.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 612543

Blade
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

17

Lawn-Boy 99-6351-03

Fan-Mulching

$37.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 611214

Spring

$9.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 314576

Screw

$1.99

$

In Stock, Qty 6

0

23

Lawn-Boy 306531

Nut-Hex
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 98-1386

Pad-Foam

$

$

Not available

25

Lawn-Boy 611509

Actuator-Brake Lever

$5.49

$

In Stock, only 3 left!

0

26

Lawn-Boy 611213

Retainer

$2.49

$

In Stock, Qty 14

0
