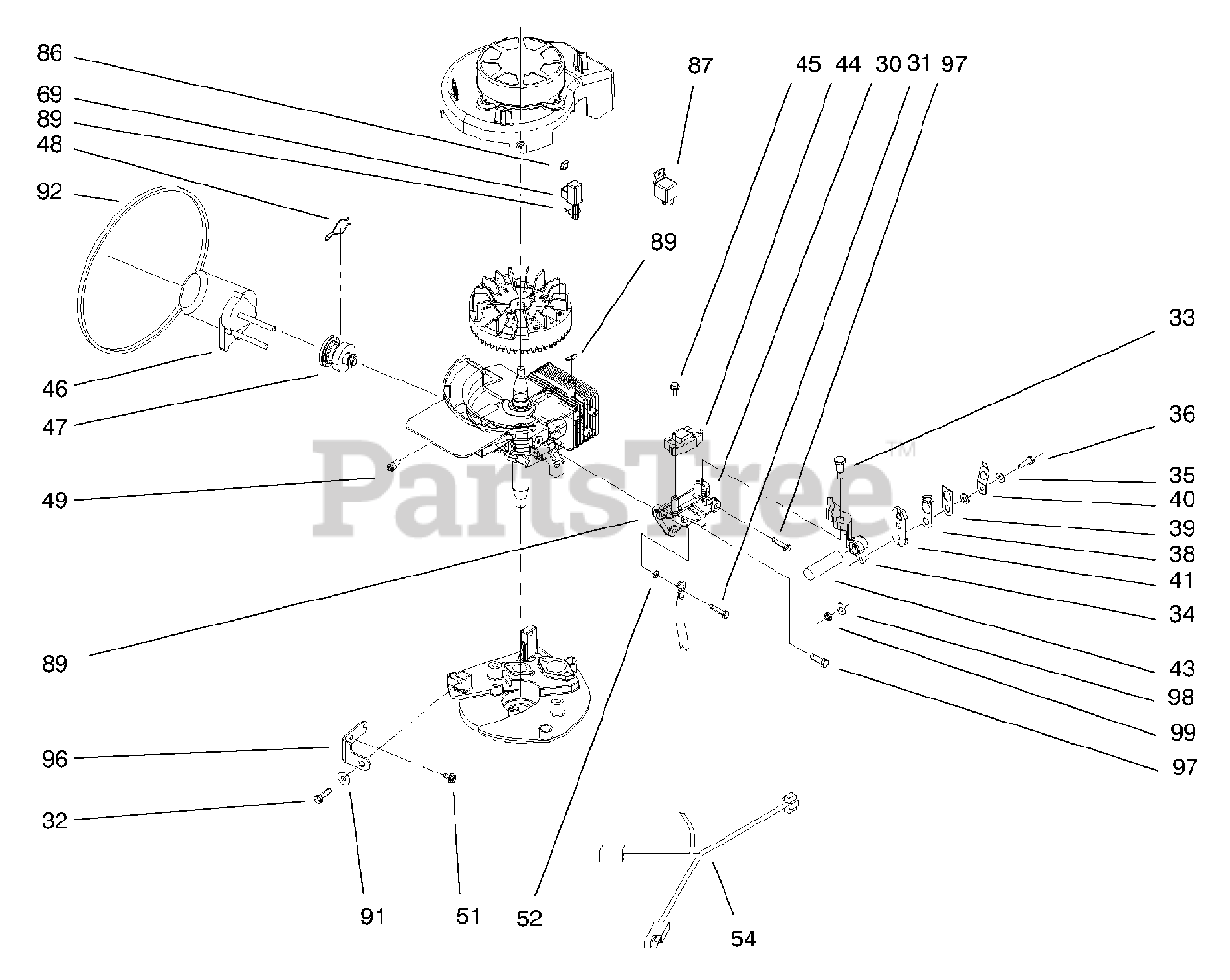

10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
30

Lawn-Boy 95-1884

Bracket Alt & Brake Mtg

$53.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 321-7

Screw-Cap

$5.49

$

In Stock, only 2 left!

0

32

Lawn-Boy 3234-29

Screw-HHF

$2.99

$

In Stock, Qty 14

0

33

$13.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 98-7008

Assy-Brake w/ Pad

$72.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 321-6

Screw-HH

$0.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 612841

Plate-Contact

$14.99

$

Usually ships in 3-6 days

0

39

$1.49

$

Usually ships in 3-6 days

0

40

$2.49

$

In Stock, only 1 left!

0

41

Lawn-Boy 93-4301

ASM-Case

$15.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 95-1886

Wire Lead

$4.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611211

Spring-Brake

$13.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 684115

Alternator Assembly

$

$

Not available

45

Lawn-Boy 613208

Screw-HWH

$1.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 98-1370

ASM-Starter

$791.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 98-1371

Pinion-Spring & Clutch

$

$

Not available

48

Lawn-Boy 613297

Spring-Drag

$7.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 611073

Screw-Socket Head
(Superseded to 3274-10)

$9.99

$

In Stock, Qty 13

0

51

Lawn-Boy 700094

Screw
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

52

Lawn-Boy 306992

Washer-Lock

$

$

Not available

54

Lawn-Boy 98-1550

Wire Harness

$

$

Not available

68

Lawn-Boy 609790

Sealer-Loctite

$61.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 684246

Cup Assembly
(Superseded to 100-2927)

$46.99

$

Usually ships in 3-6 days

0

$

$

Not available

87

$33.99

$

In Stock, only 1 left!

0

89

Lawn-Boy 317893

Tie Strap

$

$

Not available

91

Lawn-Boy 99-2900

Washer-Lock

$1.99

$

Usually ships in 3-6 days

0

92

Lawn-Boy 3290-379

Tie-Cable

$0.99

$

In Stock, only 3 left!

0

96

Lawn-Boy 98-1390

Bracket-Elect.

$5.49

$

In Stock, only 1 left!

0

97

Lawn-Boy 322-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0

98

Lawn-Boy 3255-7

Washer-Lk

$1.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 602315

Locknut

$4.49

$

In Stock, only 2 left!

0
