10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE & BLADE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

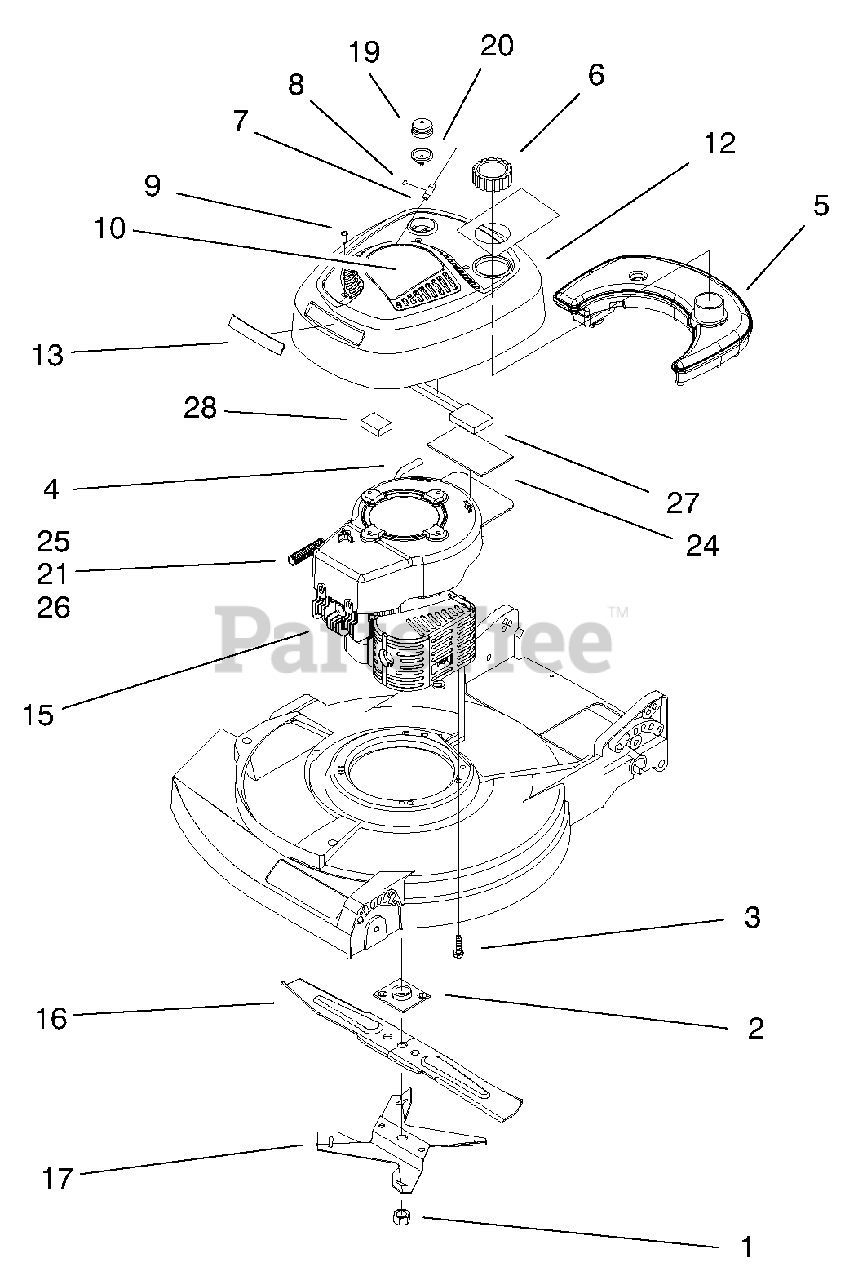

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 677525

ASM-Plate & Collar

$51.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 98-4480

Screw-Sems

$3.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 612782

Gas Line

$7.49

$

In Stock, Qty 9

0

5

Lawn-Boy 95-1897

Gas Tank

$67.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 98-8344

ASM-Fuel/Oil Cap

$24.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 47-2480

Rope Stop

$

$

Not available

8

Lawn-Boy 3290-443

Staple

$

$

Not available

9

Lawn-Boy 95-7621

Screw-Tf Acorn Hd

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 95-7420

Decal-Recoil

$

$

Not available

12

Lawn-Boy 98-8346

ASM-Shroud Electric
(Superseded to 104-0221)

$

$

Not available

13

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 1 left!

0

15

Engine ASM Re Cst Hsg Sp

$

$

Not available

16

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$37.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 314576

Screw-Throttle Cable

$1.99

$

In Stock, Qty 6

0

23

Lawn-Boy 306531

Nut-Throttle Cable
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 98-1386

Foam Pad

$

$

Not available

26

Lawn-Boy 611213

Retainer

$2.49

$

In Stock, only 4 left!

0

27

Lawn-Boy 99-1521

Foam Strip

$10.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 99-1522

Foam Strip

$2.99

$

In Stock, Qty 9

0
