10546 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) UPPER HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

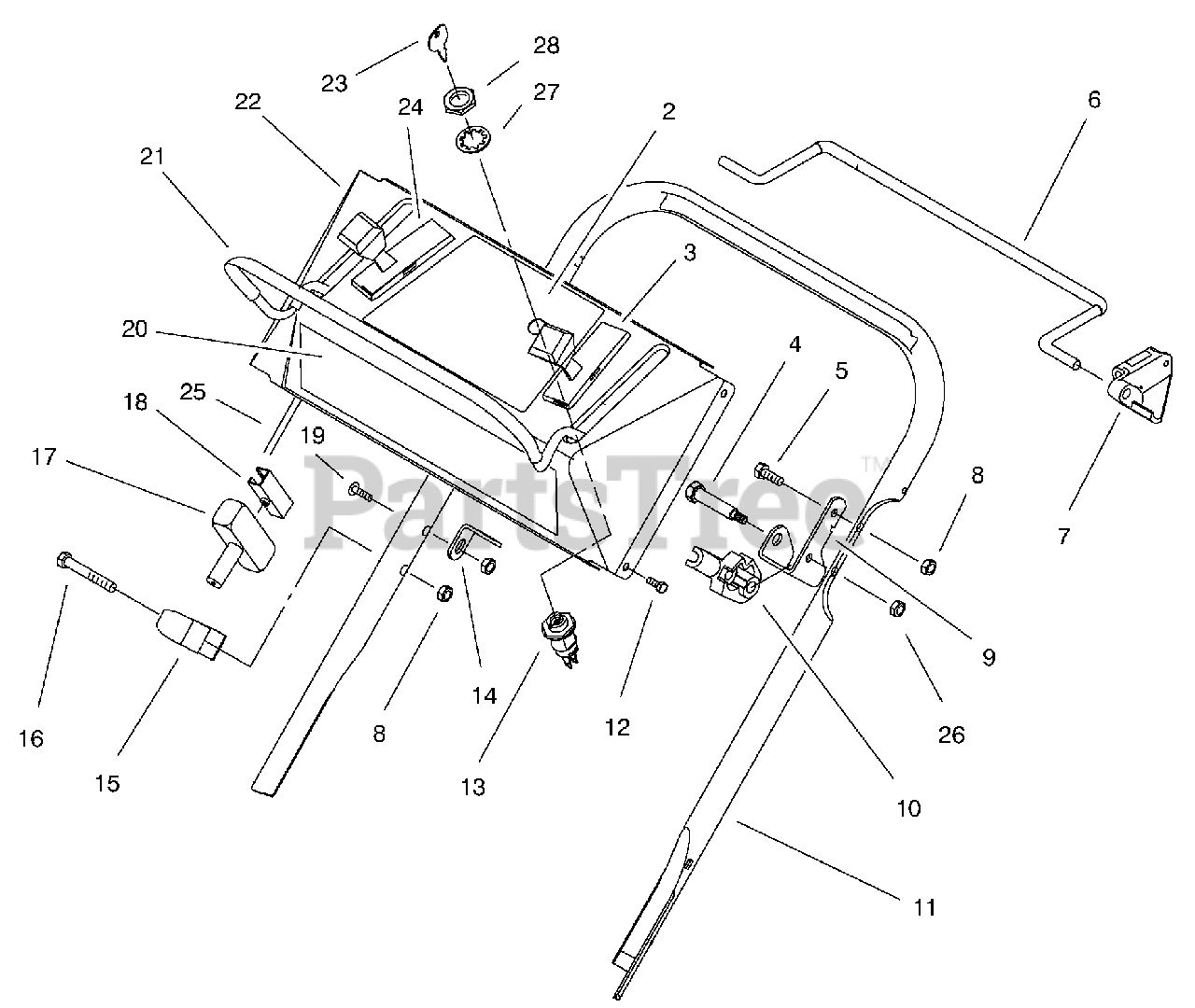

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
2

Lawn-Boy 94-1615

Decal-Warning

$5.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 93-3683

Cable-Throttle

$99.99

$

In Stock, only 1 left!

0

$

$

Not available

5

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1617

Bail-Control S.P.
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 92-1094

Bail-Stop Bracket

$37.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-1078

Cam-Brake

$52.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-1092

Handle-Upper
(Superseded to 92-1092-05)

$

$

Not available

12

Lawn-Boy 92-9665

Screw-Phillips Hd.

$6.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 46-5780

Switch-Starter

$29.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 92-2928

Bracket-Cable Anchor

$15.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

16

Lawn-Boy 321-51

Screw-Hex Hd. Cap

$1.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 10

0

19

Lawn-Boy 92-2268

Screw-Handle

$2.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 92-9561

Decal-Console Front

$

$

Not available

21

Lawn-Boy 92-1093

Bail-Engine Control

$

$

Not available

22

Lawn-Boy 17-4539

Panel-Control (Incl. Ref. #2, & 20)

$

$

Not available

$6.49

$

In Stock, Qty 10

0

24

Lawn-Boy 92-8926

Control-Ground Speed

$95.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 93-3248

Cable-Control

$115.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 3254-5

Washer-Star

$1.49

$

In Stock, only 2 left!

0

$3.99

$

In Stock, Qty 9

0
