10546 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) STARTER ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

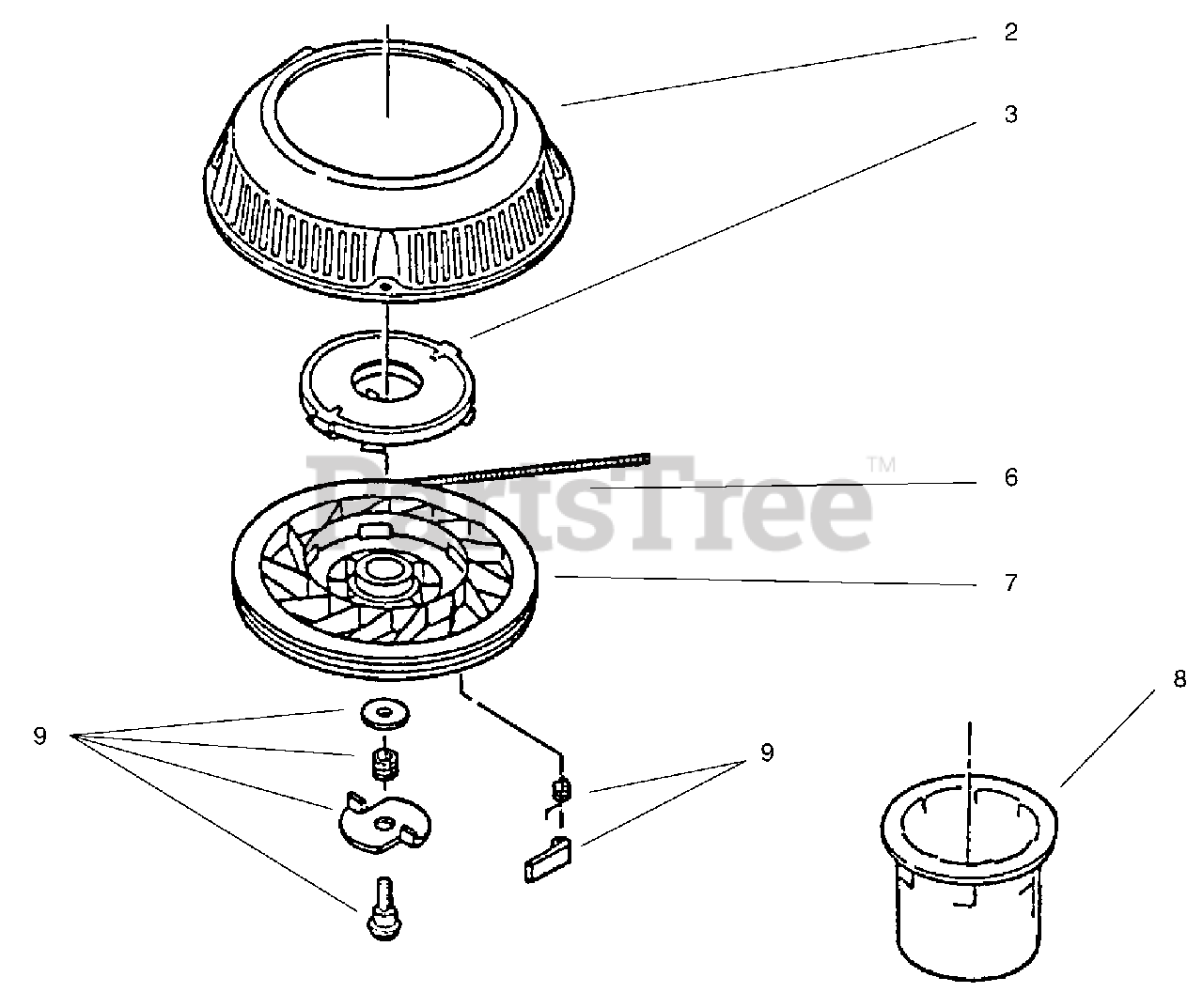

STARTER ASSEMBLY Parts Diagram

  • Title
2

Lawn-Boy 684567

Starter Housing & Shaft

$140.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-4935

Spring & Keeper

$

$

Not available

6

Lawn-Boy 612432

Rope
(Superseded to 613773)

$34.99

$

In Stock, only 1 left!

0

7

$28.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 612949

Hub-Starter

$49.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 683899

Kit-Dog

$91.99

$

In Stock, Qty 7

0

Lawn-Boy 684622

Starter Assembly (Incl. Ref. #2, 3, 6, 7, & 9)

Note: Not Illustrated

$

$

Not available
