10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) LOWER HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

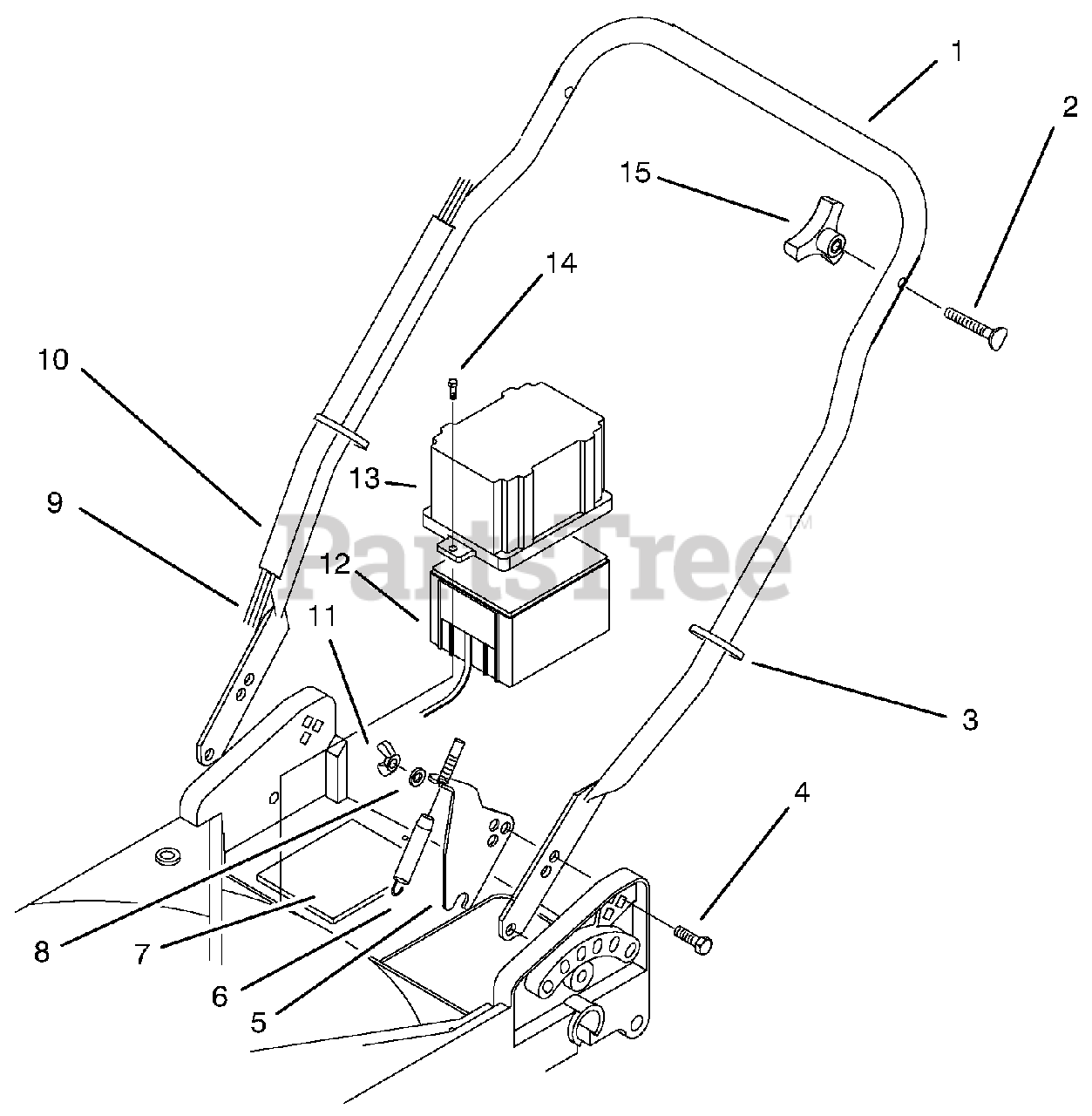

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-6537

Handle-Lower
(Superseded to 92-6537-05)

$

$

Not available

2

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 614249

Tie-Strap

$1.49

$

In Stock, only 2 left!

0

4

Lawn-Boy 3230-29

Bolt-Carriage

$2.99

$

In Stock, Qty 12

0

5

Lawn-Boy 92-7899

Bracket-Traction Cable
(Superseded to 92-7899-03)

$11.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 92-6518

Cable-Traction

$51.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 612510

Pad-Battery

$8.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 12

0

9

Lawn-Boy 92-8865

Wire Assembly
(Superseded to 94-6059)

$71.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-8917

Cover-Controls

$

$

Not available

11

$5.99

$

In Stock, Qty 5

0

12

Lawn-Boy 55-7520

Pack-Battery

$200.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612690

Case-Battery
(Superseded to 95-3017)

$34.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 926641

Screw-Hex Washer Hd. Thread Forming

$3.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

Lawn-Boy 92-1743

Charger-Battery
(Superseded to 131-0848)

Note: Not Illustrated

$78.99

$

Usually ships in 3-6 days
