10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) GEAR CASE & WHEEL ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

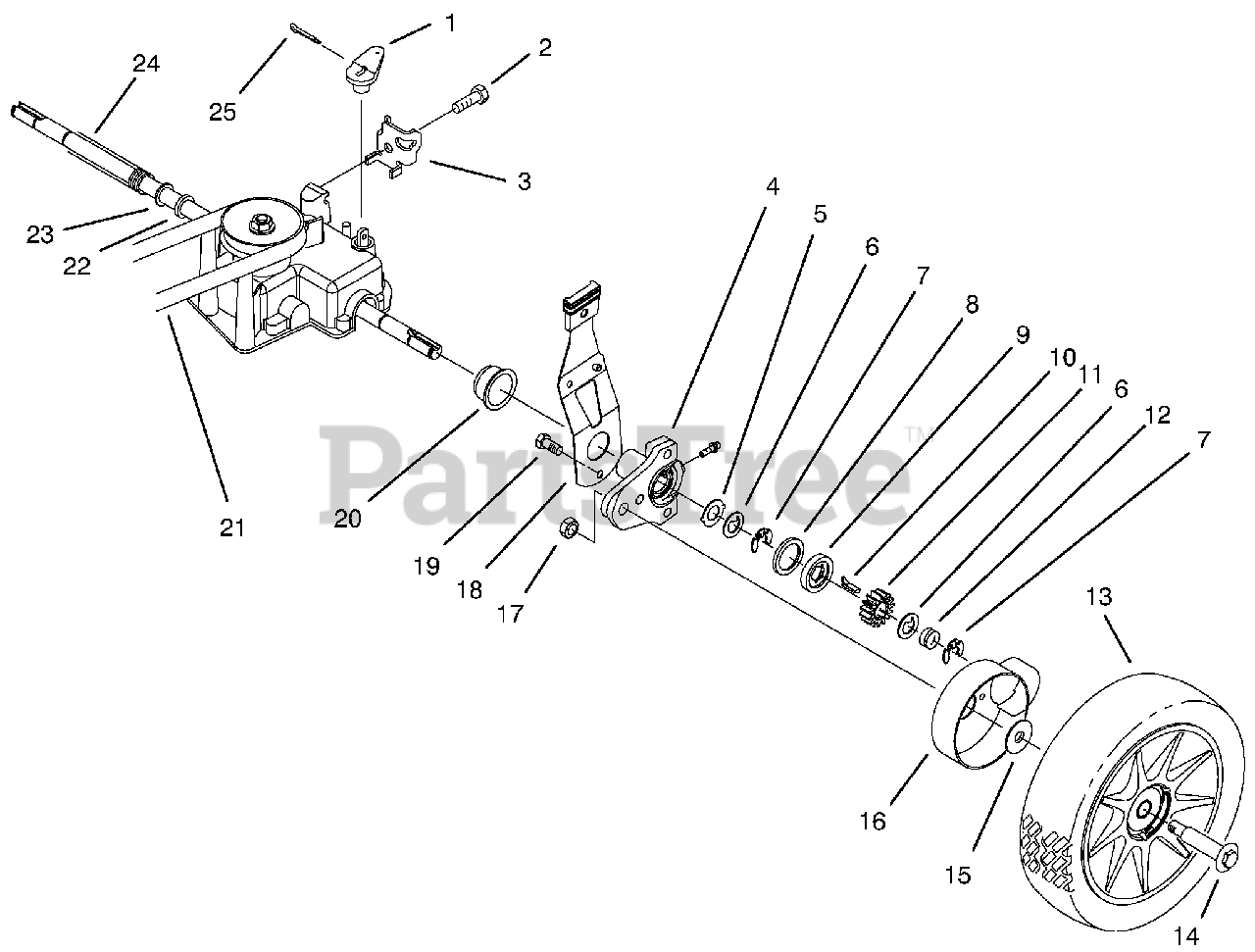

GEAR CASE & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 60-8821

Lever-Shift

$11.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 32144-70

Screw-Tapping

$2.99

$

In Stock, Qty 16

0

3

Lawn-Boy 82-8780

Retainer-Cable

$14.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7746

Arm-Rear Height Adjust.

$50.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 65-4730

Washer-Thrust

$2.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 65-4740

Washer-Thrust Keyed

$2.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 6

0

8

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

9

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 66-6050

Key-Rocking L.H.
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Lawn-Boy 66-6040

Key-Rocking R.H.
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 12

0

11

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 18

0

12

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1042

Wheel & Tire Assembly

$55.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 7

0

15

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 614427

Cover-Wheel
(Superseded to 94-1609)

$10.99

$

In Stock, Qty 5

0

17

Lawn-Boy 610358

Nut-Lock

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-6540

Spring Arm Assembly-L.H.

$21.99

$

In Stock, only 1 left!

0

Lawn-Boy 92-6539

Spring Arm Assembly-R.H.

Note: Not Illustrated

$21.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 32144-85

Screw-Hex Hd Tapping

$1.99

$

In Stock, Qty 20+

0

20

$8.49

$

In Stock, Qty 7

0

21

$18.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 605255

Washer-Flat

$1.99

$

In Stock, Qty 20+

0

23

$2.49

$

In Stock, Qty 8

0

24

Lawn-Boy 24-7920

Cover-Drive Shaft

$11.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 14

0
