10545 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) FLYWHEEL & WIRE HARNESS ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

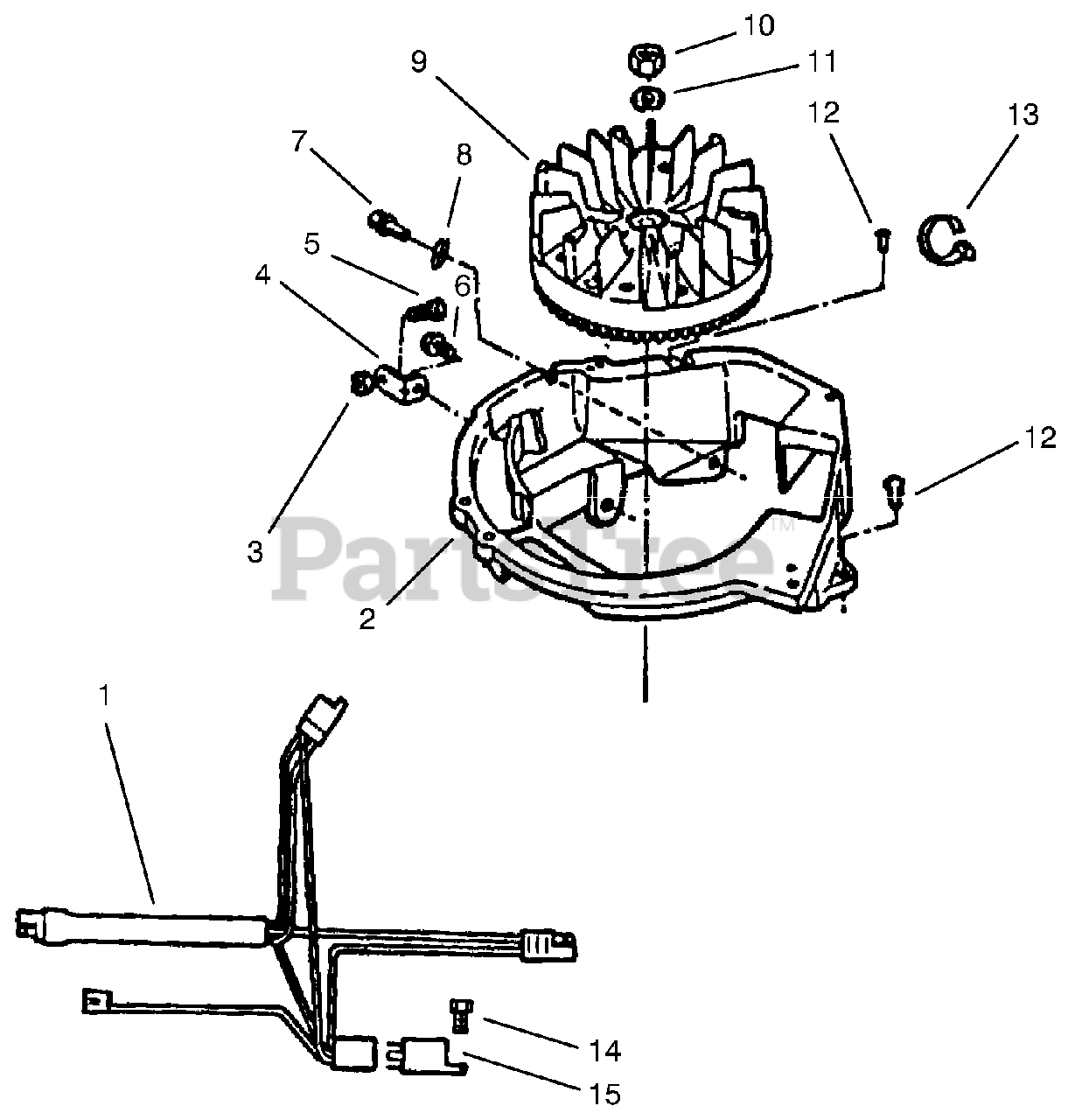

FLYWHEEL & WIRE HARNESS ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 93-4300

Harness-Wire

$

$

Not available

2

Lawn-Boy 611215

Base-Shroud

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611512

Brace-Alternator

$

$

Not available

$

$

Not available

6

$3.49

$

In Stock, only 4 left!

0

7

$10.99

$

Usually ships in 3-6 days

0

8

$

$

Not available

9

Lawn-Boy 683580

Flywheel

$318.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 130743

Nut-Flywheel

$3.49

$

In Stock, Qty 6

0

11

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

12

$11.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 317893

Strap-Tie

$

$

Not available

14

$2.49

$

In Stock, only 4 left!

0

15

$

$

Not available
